500KVA Cummins Diesel Engine Generator With Soundproof Canopy Cummins 400kw Generator
500KVA Cummins Diesel Engine Generator With Soundproof Canopy Cummins 400kw Generator
500KVA Cummins Diesel Engine Generator With Soundproof Canopy Cummins 400kw Generator
500KVA Cummins Diesel Engine Generator With Soundproof Canopy Cummins 400kw Generator
Specifications
Brand Name :
Cummins
Model Number :
TG500CS
Certification :
CE/SONCAP/SASO/SGS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
200 Units per month
Delivery Time :
15-20 working days after received deposit
Packaging Details :
Plywood case Package or Plastic film package in container
Product Namee :
Cummins Diesel Generator
Genset Type :
Open or Silent
Engine Brand :
Cummins
Alternator Brand :
Stamford/Leroy Somer/Tecgen
Control System :
AMF/ATS
Output Type :
AC Three Phase
Cooling Method :
Water Cooling
Ambient Temp :
≤40 C
Conditions of Use :
Land Use
Genset Color :
Color is optional
Description

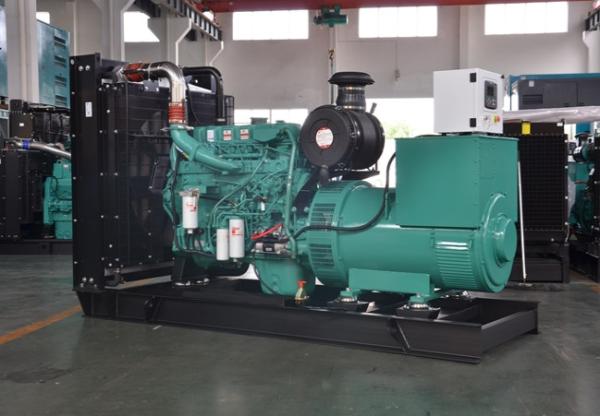

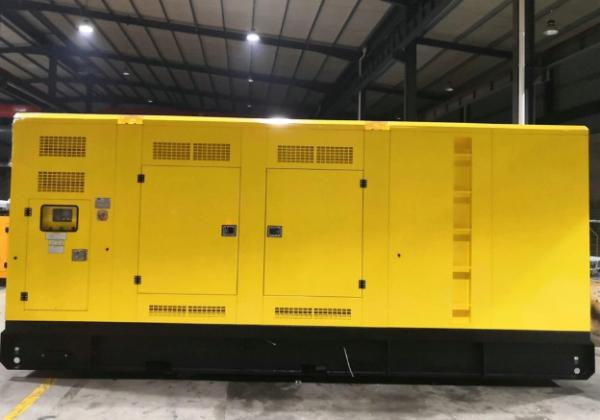

Cummins 500KVA Diesel Generator with Soundproof Canopy 400KW Diesel Generator Set

1) Engine: Cummins diesel engine, Water-cooled

2) Alternator: Stamford / Leroy Somer / Marathon / Tecgen Alternator

Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF < 5%,low radio interference.

3) 3 phase 4 wires

4) Voltage Available :

208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V

PRODUCTS DETAILS

DIESEL GENERATOR SET
Genset Model TG500CS
Prime Power 450KVA/360KW
Standby Power 500KVA/400KW
Rated Voltage (V) 380
Rated Frequency (Hz) 50
Rated Speed (RPM) 1500
Power Factor (COS¢) 0.8 (lagging)
ENGINE DATA
Engine Brand Cummins
Engine Model KTA19-G3
No. of Cylinders 6
Cylinder Arrangement In-line
Air intake way Turbo
Bore*Stroke (mm*mm) 159*159
Displacement (Liter) 18.9
Compression Ratio 13.9:1
Cooling System Water-Cooled
Starting Method DC 24V Electrical Starting
Fuel Consumption (g/kw.h) 203
ALTERNATOR DATA
Alternator Brand Tecgen
Alternator Model TGI354S-360
Connecting Type 3 Phases and 4 Wires
Number of Bearing Single
Production Grade IP23
Altitude ≤ 1000m
Exciter Type Brushless, Self-exciting, AVR & 100% Copper Winding Wire
Insulation Class H
Telephone Influence Factor (TIF) ≤ 50
Telephone Harmonic Factor (THF) ≤ 2%
Voltage Regulation, Steady State 1.00%
Transient State Voltage ≤ -15% ~ +20%

500KVA Cummins Diesel Engine Generator With Soundproof Canopy Cummins 400kw Generator

500KVA Cummins Diesel Engine Generator With Soundproof Canopy Cummins 400kw Generator

Tecgen Diesel Generator Feature:

1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.

2, Different brands of engine, alternator and controller as options

3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator

4, Open type, silent type, super silent type or mobile type generator.

5, CE, ISO9001-2008, SONCAP, SASO and SGS certified

6, Starter System with maintenance-free battery

7, Control Panel with Key Start (Power Switch)

8, With 100% fire-resistant sound attenuating sponge

9, 10% of rate output of overload for 1hours in every 12hours

10, Spare parts are easy to get from worldwide market with much cheaper price

11, Perfect after-service network

12, Both 50Hz and 60Hz

13, Chint circuit breaker

14, Three-phase output meets differing requirements

15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option

16, Large fuel tank ensure continuous running.

17, Anti-Vibration Mounted

18, Industrial silencer and flexible exhaust hose

19, 0-110% load test for each unit before delivery

20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date
