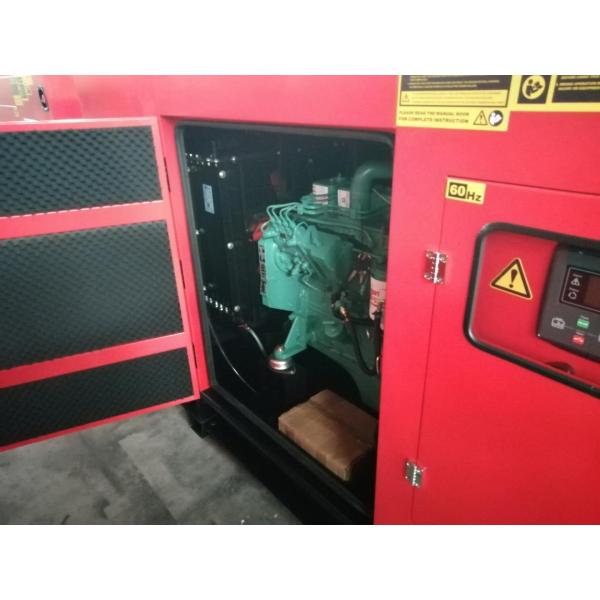

32kW DCEC Soundproof 40 Kva Cummins Generator By Cummins 4BT3.9-G1 Diesel Engine
32kW DCEC Soundproof 40 Kva Cummins Generator By Cummins 4BT3.9-G1 Diesel Engine
32kW DCEC Soundproof 40 Kva Cummins Generator By Cummins 4BT3.9-G1 Diesel Engine
32kW DCEC Soundproof 40 Kva Cummins Generator By Cummins 4BT3.9-G1 Diesel Engine
32kW DCEC Soundproof 40 Kva Cummins Generator By Cummins 4BT3.9-G1 Diesel Engine
32kW DCEC Soundproof 40 Kva Cummins Generator By Cummins 4BT3.9-G1 Diesel Engine
Specifications
Brand Name :
Tecgen
Model Number :
TG44CS
Certification :
CE
Place of Origin :
Fuzhou, China
MOQ :
1 unit
Price :
5637$
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
150 Units Per Month
Delivery Time :
15 Days
Packaging Details :
Stretch film packaging
Product :
32kW Cummins Genset
Rate power :
32kW
Standby power :
35kW
Engine brand :
DCEC Cummins
Engine Model :
4BT3.9-G1
Option Engine model :
4BT3.9-G2
Governor :
MECH / Electric
Alternator Brnad :
Tecgen
Alternator model :
TGI184S32
Alternator Type :
Single Bearing / 3 Phase
Alternator Option :
Stamford / Leroy Somer
Controller :
Smartgen HGM6120N
Work Altitude :
≤1000m
HS Code :
8502110000
Description

32kW 40kVA DCEC Soundproof Diesel Genset Powered by Cummins 4BT3.9-G1 Diesel Engine with 10 Hours Fuel Tank

DCEC Cummins Series Diesel Generating Set:

  • Genset output range: 20kW to 400kW
  • Engine types: 4B, 6B, 6C, 6L, QSM, 6Z, QSZ series
  • Manufacturer: Dongfeng Cummins Engine Co., Ltd.

32kW DCEC Soundproof 40 Kva Cummins Generator By Cummins 4BT3.9-G1 Diesel Engine

Range Datasheets:

TECGEN DCEC Cummins Series Diesel Generator Set
Gneset Model Frequency Voltage MAIN STANDBY ENGINE ALTENRATOR
Open Silent Hz V KW KVA KW KVA Cummins Stamford
TG28C TG28CS 50 230/400V 20 25 22 28 4B3.9-G1 PI 144E
TG28C TG28CS 50 230/400V 20 25 22 28 4B3.9-G2 PI 144E
TG50C TG50CS 50 230/400V 32 40 40 50 4BT3.9-G1 PI 144J
TG44C TG44CS 50 230/400V 32 40 35 44 4BT3.9-G2 PI 144J
TG69C TG69CS 50 230/400V 50 63 55 69 4BTA3.9-G2 UCI 224 F
TG69C TG69CS 50 230/400V 50 63 55 69 4BTA3.9-G2 UCI 224 F
TG80C TG80CS 50 230/400V 58 73 64 80 4BTA3.9-G11 UCI 224 F
TG110C TG110CS 50 230/400V 80 100 88 110 6BT5.9-G1 UCI 274 C
TG110C TG110CS 50 230/400V 80 100 88 110 6BT5.9-G2 UCI 274 C
TG124C TG124CS 50 230/400V 90 113 99 124 6BT5.9-G2 UCI 274 D
TG138C TG138CS 50 230/400V 100 125 110 138 6BTA5.9-G2 UCI 274 D
TG152C TG152CS 50 230/400V 110 138 121 152 6BTAA5.9-G2 UCI 274 E
TG165C TG165CS 50 230/400V 120 150 132 165 6BTAA5.9-G12 UCI 274 F
TG207C TG207CS 50 230/400V 150 188 165 207 6CTA8.3-G1 UCI 274 G
TG207C TG207CS 50 230/400V 150 188 165 207 6CTA8.3-G2 UCI 274 G
TG220C TG220CS 50 230/400V 160 200 176 220 6CTAA8.3-G2 UCI 274 H
TG275C TG275CS 50 230/400V 200 250 220 275 6LTAA8.9-G2 UCDI 274 K
TG275C TG275CS 50 230/400V 200 250 220 275 6LTAA8.9-G3 UCDI 274 K
TG358C TG358CS 50 230/400V 260 325 286 358 QSM11-G2 HCI 444 ES
TG413C TG413CS 50 230/400V 300 375 330 413 6ZTAA13-G3 HCI 444 FS
TG495C TG495CS 50 230/400V 360 450 396 495 QSZ13-G2 HCI 544 C
TG550C TG550CS 50 230/400V 400 500 440 550 QSZ13-G3 HCI 544 C

32kW DCEC Soundproof 40 Kva Cummins Generator By Cummins 4BT3.9-G1 Diesel Engine

40kVA Cummins Generator TECHNICAL SPECIFICATION:

Technical Specification:
Generator Set Specification
Genset Model TG44C TG44CS TG44C TG44CS
Open Silent Open Silent
Frequency 50Hz
Voltage 400/230V
Phase 3
Rate Current (A) 72.2
Prime Power (KW/KVA) 32 / 40 32 / 40
Standby Power(KW/KVA 35 / 44 35 / 44
Engine Model 4BT3.9-G1 4BT3.9-G2
Alternator Model TGI184S32 TGI184S32
Controller Smartgen HGM6120N
Fuel Tank Capacity 70L 70L
Weight And Dimensions
Length (mm) 1750 2300 1750 2300
width (mm) 840 980 840 980
Height (mm) 1360 1460 1360 1460
Weight (kgs) 870 1230 870 1230
Engine Specification
Engine Model 4BT3.9-G1 4BT3.9-G2
Prime/Standby power (kw) 24 / 27
Injection Indirect
Aspiration Naturally Aspirated
No. of cylinders 4
Bore of Stroke (mm) 102x120
Displacement (L) 3.9
Cooling water
Compression Ratio 17.3:1
Engine Oil capacity (L) 7.2
Coolant Capacity ( In radiator) 7.2
Governor Mechanical Electric
Air Filter Dry Element Dry Element
Fuel consumption at 50Hz at 50Hz
100% Load (L/h) 7.1 6.7
75% Load (L/h) 5.7 5.2
50% Load (L/h) 4.3 4.0
25% Load (L/h) 2.8 2.7
Alternator Specification
Brand Tecgen
Model TGI184S32
Rate Output (kVA) 40
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing single
Controller System
Brand Smartgen
Model HGM6120N
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts

32kW DCEC Soundproof 40 Kva Cummins Generator By Cummins 4BT3.9-G1 Diesel Engine

Tecgen Cummins Power Diesel Generator Feature:

1, Output range: 20kVA to 1500kVA Heavy Duty Cummins generator set.

2, Different brands of engine, alternator and controller as options

3, Coupled with Stamford alternator, Marathon alternator or Chinese APT Power alternator

4, Open type, silent type, super silent type or mobile type generator.

5, CE, ISO9001-2008, SONCAP, SASO and SGS certified

6, Starter System with maintenance-free battery

7, Control Panel with Key Start (Power Switch)

8, With 100% fire-resistant sound attenuating sponge

9, 10% of rate output of overload for 1hours in every 12hours

10, Spare parts are easy to get from worldwide market with much cheaper price

11, Perfect after-service network

12, Both 50Hz and 60Hz

13, CHNT circuit breaker

14, Three-phase output meets differing requirements

15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option

16, Working Hours Base Fuel Tank

17, Anti-Vibration Mounted

18, Industrial silencer and flexible exhaust hose

19, 0-110% load test for each unit before delivery

20, Warranty with 1000 hours or one year, which comes first.

All stand machine can install wheel. It depends on your requirements. If we done this, the machine can move around easily.
