Specifications
Brand Name :
Tecgen Power
Model Number :
TG17FWSS
Certification :
CE / SASO / SONCAP / COC / PVOC
Place of Origin :
Fuzhou, China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
200 Units Per Month
Delivery Time :
7 - 15 Working Days
Packaging Details :
Stretch film packaging
Genset Type :
Super Silent
Frequency :
50Hz
Speed :
1500rpm
Voltage :
220 / 380V
Engine Brand :
FAWDE
Engine model :
4DW81-23D-YFD10W
Alternator model :
TGI164S12
Output :
12kW
Description

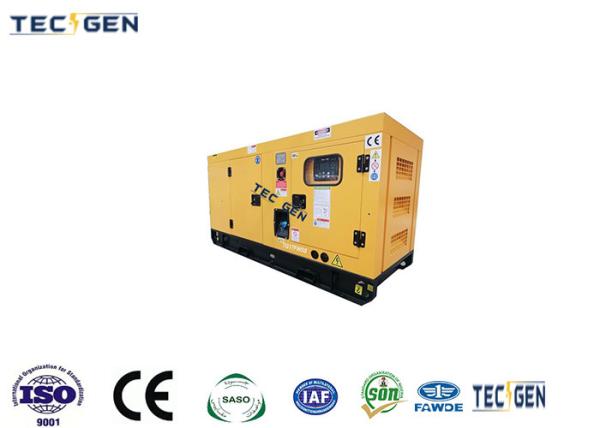

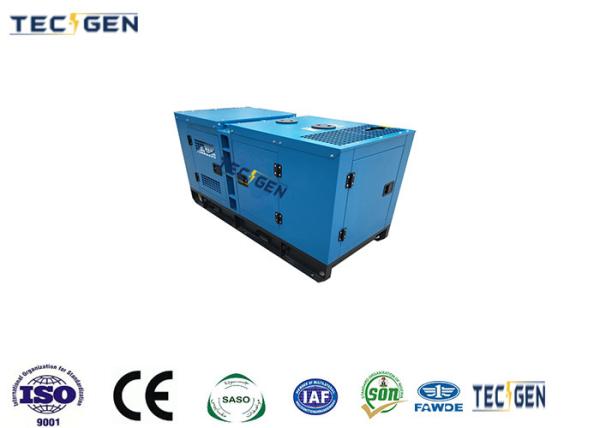

Super silent 12kW generator Chinese diesel generators powered by FAWDE diesel engine

Introducing the Super Silent 12kW Generator - your ultimate solution for reliable and quiet power generation. Designed with advanced features and superior components, this generator ensures optimal performance while operating silently.

Standard Feature:

The Super Silent 12kW Generator comes equipped with the following features:

  • Engine Model: 4DW81-23D-YFD10W
  • Alternator Model: TGI164S12
  • Controller: DEIF SGC-420
  • Output: 12kW

Key Features:

  1. Whisper-Quiet Operation: Our Super Silent generator is specifically engineered to operate at a remarkably low noise level, providing a peaceful environment for both residential and commercial applications.
  2. Reliable Power Output: The FAWDE JIEFANG 4DW81-23D-YFD10W engine ensures consistent and dependable power generation, meeting your electricity needs with ease.
  3. Precise Control: The DEIF SGC-420 controller offers advanced monitoring and control capabilities, allowing you to optimize the generator's performance and ensure seamless operation.
  4. Compact and Portable Design: With its compact size and lightweight construction, this generator is easy to transport and install, providing flexibility for various applications.
  5. Exceptional Durability: Equipped with high-quality components, including a robust alternator from Fujian Tecgen Power Co., Ltd, our generator boasts superior durability and long-lasting performance.

Super Silent 12kW Generator Chinese Diesel Generators Powered By FAWDE Diesel Engine

Super Silent 12kW Generator Specifications:

Super Silent 12kW Generator Specifications
Model Engine Alternator Controller Output
TG17FWSS 4DW81-23D-YFD10W TGI164S12 DEIF SGC-420 12kW

Remark:

(1) Payment Terms: FOB Fuzhou Port

(2) Delivery: 15 working days

(3) Payment method: 30% deposit, 70% before delivery

(4) Price Valid time: 30 Days

(5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts

General Date of 12kW Super Silent Diesel Genset
Engine Model 4DW81-23D-YFD10W
Alternator Mode TGI164S12
Rated Output 17kVA
Rated Speed 1500 RPM
Frequency 50 HZ
Rated Voltage 220 / 380V
Rated Current 22.8A
Breaker 63A Aisikai Breaker
Power Factor 0.8
Genset Phase 3 phase, 4 – wire connection
Fuel Tank 8 running hours
Noise level dB(A) @7m 70dB(A)
Net Weight 650KGS
Genset size L2000 * W900 * H1000mm
Voltage regulation rate ≤±1%
Random voltage variation ≤±1%
Frequency regulation rate ≤±5%
Random frequency variation ≤±0.5%
General specification of Engine for 12kW Super Silent Diesel Genset
Manufacture FAWDE JIEFANG
Model 4DW81-23D-YFD10W
Rated Output/Speed 17KW/1500RPM
Standby Output/Speed 19KW/1500RPM
Aspiration Natural ASP
Speed Governor MECH or Electric
Engine Type 4 cylinders in line
Bore X Stroke 85*100mm
Displacement 2.27 L
Compression ratio 17:1
Cooling system Forced Water Cooling Cycle
Rated speed 1500rpm
Fuel Consumption/rated output 3.4 L / h
Fuel Consumption/standby output 3.7 L / h
Starter motor D.C. 24V Electric starting
Alternator (Dynamo) AC24V
General data of Alternator for 12kW Super Silent Diesel Genset
Alternator Model TGI164S12
Manufacture Fujian Tecgen Power Co., Ltd
Rate Output 15kVA
Rated voltage(V) 220 / 380V
Voltage regulation AVR ± 1.0 %
Working Altitude ≤1000
Control System Brushless Self Excited
Bearing Single Bearing
Insulation System Class H
Protection IP23
Power factor 0.8
Winding connection 3 phase, 4 – wire connection
Standard configuration of 12kW Super Silent Diesel Genset
Aluminum water tank 50℃
Controller Panel DEIF SGC-420
Battery Varta Maintenance free Battery
Silencer Included
Dry type air filter, fuel filter, oil filter
24V D.C automatic battery charger
Max. 50 degree celsius radiator
Batteries, rack and cable
Ripple flex exhaust pipe, flange and muffler

Usage:


The Super Silent 12kW Generator is ideal for a wide range of applications, including residential buildings, hospitals, schools, events, and any situation where a silent power source is required. It provides reliable backup power and supports uninterrupted operations, ensuring peace of mind.

Super Silent 12kW Generator Chinese Diesel Generators Powered By FAWDE Diesel Engine

Advantages:

  1. Silent Power Generation: Our Super Silent generator offers whisper-quiet operation, eliminating noise disturbances and providing a serene environment.
  2. Seamless Integration: The generator seamlessly integrates with your existing power system, guaranteeing a smooth transition during power outages.
  3. Enhanced Efficiency: The advanced features of our generator optimize fuel consumption, minimizing operational costs and reducing environmental impact.
  4. Customization Options: Tailor your generator to suit your specific requirements by choosing from options such as an integrated fuel tank, water heater, automatic transfer switch (ATS), PMG generator, SYNC function, and more.
  5. SEO-Optimized Description: Our product description is carefully crafted to meet Google's SEO requirements, ensuring quick indexing and improved visibility for your website.

FAQ:


Q: What are the payment terms and delivery time for the generator?
A: The payment terms are FOB Fuzhou Port, with a 30% deposit and 70% before delivery. The generator will be delivered within 15 working days.

Q: Can the generator handle voltage and frequency fluctuations?
A: Yes, the generator has a voltage regulation rate of ≤±1% and a frequency regulation rate of ≤±5%, ensuring stable power output under varying conditions.

Q: What is the warranty period for the generator?
A: Please contact our sales team for detailed warranty information.

Choose the Super Silent 12kW Generator for reliable, efficient, and noise-free power generation. Its advanced features, silent operation, and superior performance make it an ideal choice for a variety of applications. Customize your generator with our optional features to meet your specific needs. Contact us now to discuss your power requirements and benefit from the exceptional performance of the Super Silent Generator.
