130 KG HF Plastic Welding Machine 15K 4200W Ultrasonic PVC Profile Welding Machine
130 KG HF Plastic Welding Machine 15K 4200W Ultrasonic PVC Profile Welding Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Hansweld
Packaging Details :
Single package size: 1040*860*2110mm
Package-Type: 1 Plywood Case
Supply Ability :
20 Set/Sets per Week
Price :
$3,000.00 - $8,999.00/Pieces
MOQ :
1 SET
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
3-7 work days
Usage :
Plastic Welding
Warranty :
1 Year
Weight (KG130 KG) :
130 KG
Power (kW) :
2600W
Description

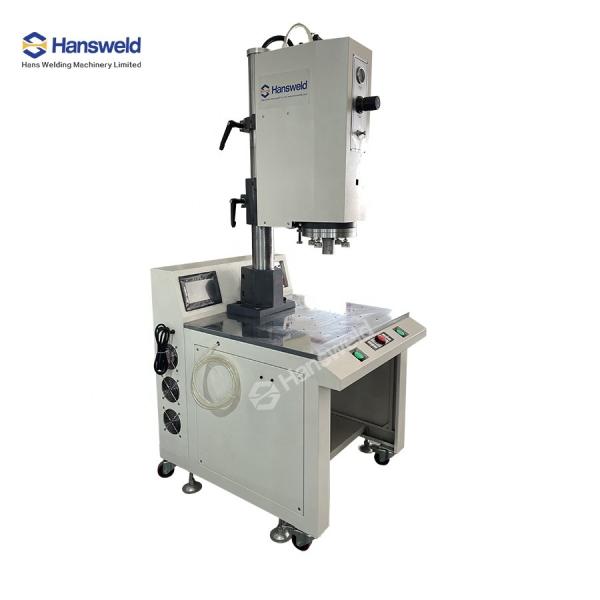

Plastic Welding Machine 15K 4200W Ultrasonic For Pvc Profile Welding Machine

* Big power, four-point balance adjustment, convenient horn-alignment
* The sheet metal welding square column to advoid leaning back
* Two-hand start, which meets CE safety requirements.Can be controlled by external switches and have emergency brake button on the front.

* When the output sound wave is overloaded, the output is automatically cut off, and the corresponding components are prompted to be checked to effectively protect the circuit.
Model No
HSD-4200W
Ultrasonic Power
4200 W
Frequency
15 KHz
Power Supply
AC 110/220V, 50/60Hz
Delay Time
0.01-9.99 S
WeldTime
0.01-9.99 S
Hold Time
0.01-9.99 S
Driven Mode
Pneumatic
Welding Area
Diameter. 300 MM
Working Pressure
0.4-0.7 MPa
Packing Dimension
1040*860*2100MM
Gross Weight
450 KGS
Weling Material
Nylon, plastic, plastic, ABS-SAN-PP-PE-PS-PS and so on
