Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Specifications
Place of Origin :
China
Brand Name :
HANSWELD
Packaging Details :
wooden box
Price :
$4,999.00/Pieces
MOQ :
1 SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Sets/per week
Delivery Time :
3-7 work days
Welding Area :
Roller 15-50 mm (as request)
Dimensions :
1910*810*1790 mm
Usage :
Hot Air PVC Welding
Warranty :
1 Year
Description

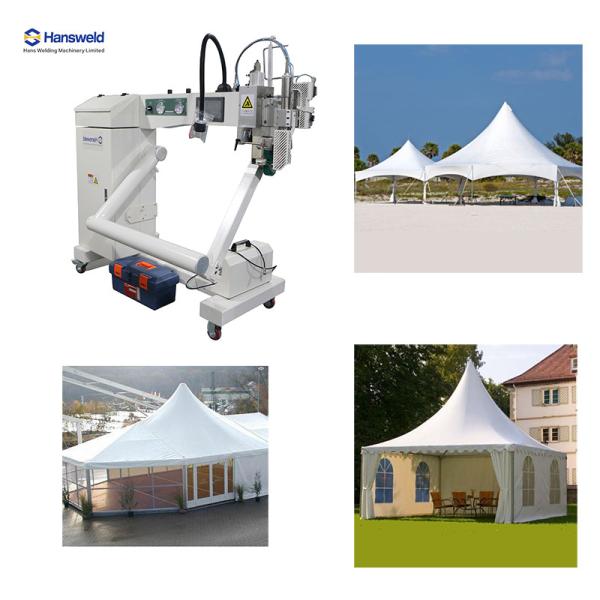

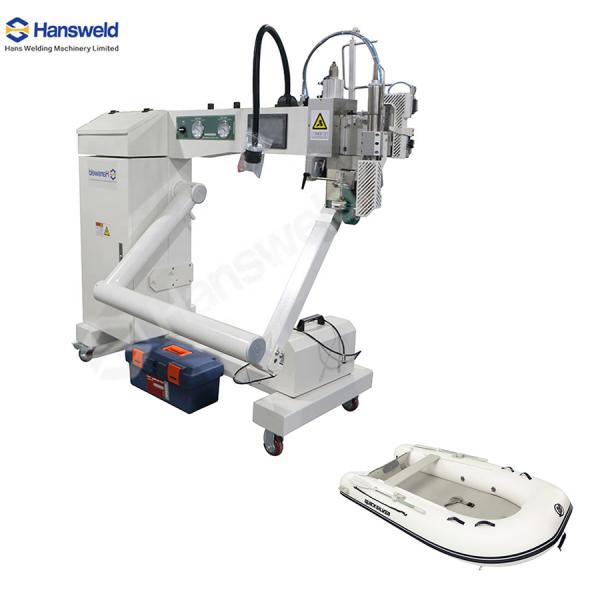

Pvc Tarpaulin Hot Air Plastic Welder for Inflatable Boats Tents Awnings

Introduction
Hot air welding machine has unique advantage in inflatable products made of membranes structure, which is total different with high frequency welding and hot melt welding technology, the hot air is blew between the sealing surface, under necessary suitable pressure to get perfect welding effect, PVC, TUP material are all available, which are made to water polo, water drum, grass ball, inflatable swimming pool, large inflatable tents, inflatable boats, rubber boats and fishing boats and etc.

Purpose:
Hot air welding machine is suitable to produce all kinds of waterproof product which is made from coated PU,PVC,TPU, PE, PVA, such as large tent, inflatable boat and children toys, car covering,etc.Specification of Hot Air Seam Sealing Sewing Machine

Voltage

 AC220V 50/60HZ
Power 2500W
Heat control Up to 700°C
Speed 1-24m/min
Pressrue 0.35-0.5Mpa
Roller width 25.4mm
Upper roller lift 20-35mm
Dimension 1300*700*1600mm
Net weight 160kg
Sealing skip prevention Yes

Product Parameter
MODEL
WELD-15
POWER SUPPLY
AC-220V 50HZ
POWER
3000W
TEMPERATURE OF HEATING CONTROL
Up to 700℃ for hot air Heat control
TEMPERATURE OF HOT WEDGE
Up to 450℃ for hot wedge
SPEED
1-18m/min
PRESSURE
0.35-0.5Mpa
PINCH ROLLER WIDTH
20/30/40/50mm
NOZZLE WIDTH
20/30/45m
OPTION FUNCTION
Hot Wedge
DIMANSION
1500MM*750MM*1600MM ( L*W*H)
NET WEIGHT
245KG
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
Application
Pvc Tarpaulin Hot Air Plastic Welder 2500W 24m/Min For Inflatable Boats Tents Awnings
