PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
Specifications
Brand Name :
Hansweld
Model Number :
HSD-12KW-45T
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 SET
Price :
USD 5000-20000/SET
Payment Terms :
L/C, D/P, T/T
Supply Ability :
15 sets/month
Delivery Time :
20 working days
Packaging Details :
Standard Wooden Box
Suitable Material :
PVC, TPU and so on
Application :
Welding and cutting function
Power Supply :
3P*380V*50Hz
Welding Time :
1-10s adjustable
Power :
12KW
Warranty :
1 year
Description

PVC TPU Pneumatic Blood Urine Medical Bag High Frequency Welding Machine

Features:

  • l The two-way automatic sliding table is adopted to push the mold back and forth or continuously, and the NL-5557 high-frequency spark protection system can effectively prevent damage to the mold;
  • l Equipped with high-frequency frequency stabilizer and high-frequency shielding device, which greatly reduces high-frequency interference.
  • l Equipped with automatic overcurrent protection device, which can effectively protect the mold and electron tube.
  • l There are air hydraulic pressure and pure hydraulic pressure to choose from.

TECHNICAL DATA:

Model HSD-8KWR-10T HSD-10KWR-15T HSD-12KWR-20T HSD-15KWR-25T
Power 8000W 10000W 12000W 15000W
Power Supply 380V 3P 50HZ 380V 3P 50HZ 380V 3P 50HZ 380V 3P 50HZ
Frequency 27.12MHz 27.12MHz 27.12MHz 27.12MHz
Input power 15KVA 18KVA 20KVA 25KVA
Rectifier SILICON DIODE SILICON DIODE SILICON DIODE SILICON DIODE
Oscillation tube 7T69RB E3069 E3130RB 8T85RB
Max pressure 10/15T 10/15T 15T/20T 25T/30T
Gap of electrodes 200MM 200MM 200MM 200MM
Cylinder Stroke 100MM 100MM 100MM 100MM
Size of upper electrode 300*400MM 300*400MM 450*500MM 450*500MM
Max Welding surface each work cycle 240c㎡ 300c㎡ 350c㎡ 450c㎡
Welding time 0~10S Adjustable 0~10S Adjustable 0~10S Adjustable 0~10S Adjustable

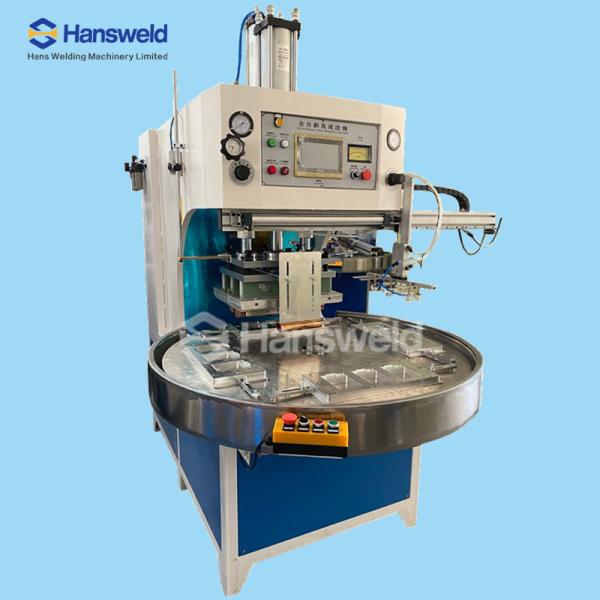

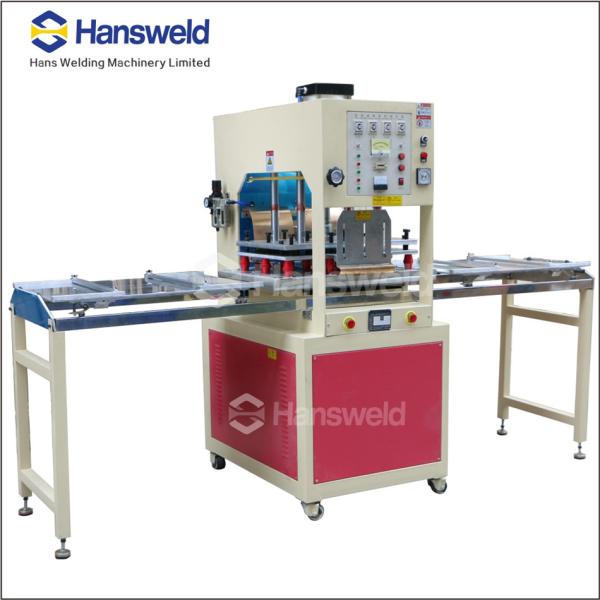

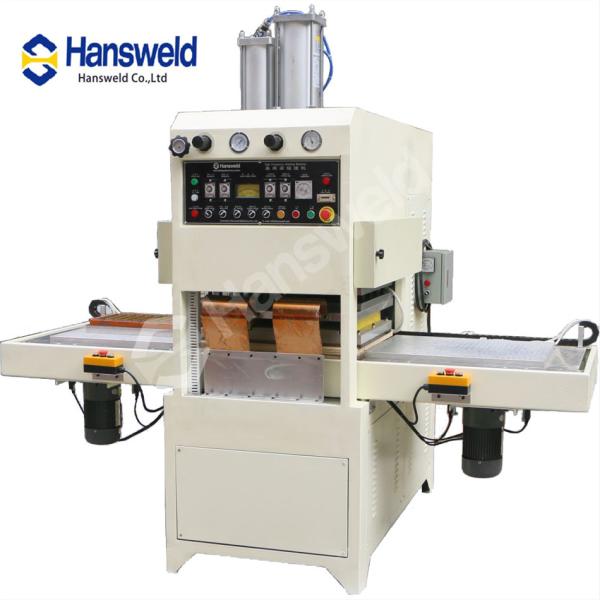

Product Display:

PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag

Application:

PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag

PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
