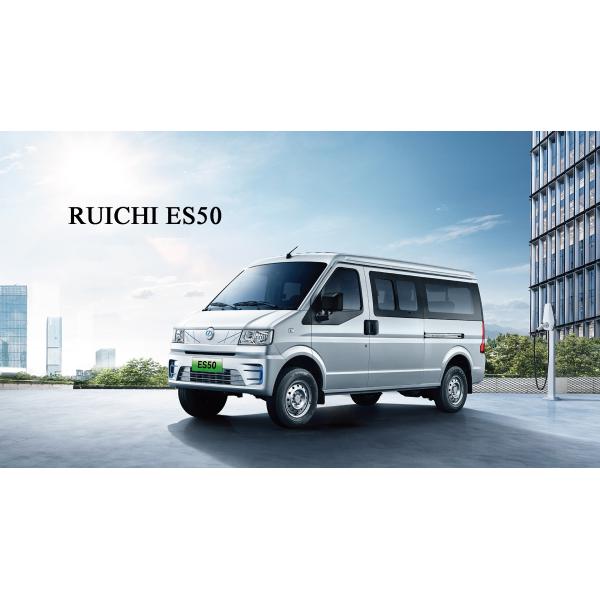

2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
Specifications
Brand Name :
DFSK
Model Number :
ES50
Place of Origin :
Chongqing, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70000 units per year
Delivery Time :
10-15 working days
Packaging Details :
By Container
Product Name :
Ruichi ES50
Fuel :
Pure Electric
L×W×H(mm) :
4500*1680*2000
Cargo Size(mm) :
3420×1550×1510
Curb Weight(kg) :
1575
Max Speed (km/h) :
100
Power battery capacity (kWh) :
38.6
Range(km) :
252
Van cargo volume (m³) :
8
Power battery :
Lithium Iron Phosphate
Description

2024 RUICHI 7 Passenger Vehicles ES50 Electric Mini Van

Specification

Item

ES50

Standard version-Pioneer I

Basic Parameters

L×W×H(mm)

 4500*1680*2000

Cargo Size(mm)

 3420×1550×1510

Van cargo volume (m³)

 8

Wheel Base(mm)

 3050

Front Tread(mm)

 1435

Rear Tread(mm)

 1435

Min.Ground Clearance(mm)

 188(no-load)

Curb Weight(kg)

 1575

payload(kg)

 560

Rear door opening mode

 ●Side sliding door

Max Speed (km/h)

 100

Electric drive and rear axle
Motor model Motor(FOUNDER):TZ205XSFDM Permanent Magnet Synchronous Motor,Controller(INVT):KTZ34X29S520

Rated power (kW)/rated speed (rpm)

 30/3600

Peak power (kW)/peak speed (rpm)

 60/9000
Rated torque (N.m)/Max. torque (N.m) 80/200

Speed ratio

 10.5
Power battery Lithium iron phosphate battery

Battery pack heating

 ●

Power battery capacity (kWh)

 38.6

Range(km)

 ≥252
Charging time(h) Fast charging SOC(20%-80% )1.3h,(0-100%)2.5h,slow charging 7-8h

System structure
Body type Unitary construction body:double sliding doors

Drive mode

 Rear egine, rear drive
Front suspension MacPherson Independent Suspension
Rear suspension Non-independent 5-leaf spring suspension
Brake Front disc and rear drum, mechanical brake

Steering type

 EPS

External Configuration

Tire

 185R14LT 8PR

Wheel rim

 Steel wheel

Wheel cover

 ●

Front/rear mudguard

 ●
Electrically adjustable front combination headlight ●

Front fog light

 ●

Indicator

 ●

Front wiper with bone

 ●
Exterior rear-view mirror with electric adjustment ●

Electric lift for front window

 ●
Sliding door rail trim (double sliding doors) ●
Rear combination lights (double reversing lights) ●

Rear double fog lights

 ●

Retro reflector

 ●

High-mount brake light

 ●

Body exterior trim

 ●

Rear license plate light cover

 ●
Charging interface Standard: National standard AC charging 32A (6.6kW), DC charging MAX80A
Optional: European standard AC charging 32A (6.6kW), DC charging MAX80A

Opening of charging port cover

 Key (fast charging interface)

Protection plate for battery pack

 ●

Internal configuration

Nissan black interior style

 ●

Sun visor

 ●(without make-up mirrior and light)

Inside rear-view mirror

 ●

Dashboard

 Nissan black

4 speakers

 ●

Warm air manipulation mechanism

 ●

Ash box

 ●

Cigarette lighter

 ●

General steering wheel

 ●
The upper and lower covers of the combination switch ●

Gear-shift

 Knob shift
Control box + rear cover + cup holder Nissan black control box; with cup holder,

Interior lights (front/middle/rear)

 ●

Front door light switch

 ●

Rear door light switch

 ●

Horn

 High pitch, spiral shape

A/C with double steam

 ●

A pillar trim

 ●

Top roof

 ●

Safety handle

 5
Seats Split seat for 7 people : 2+2+3; fabric: M080+M081; Nissan black seat trim
Front-row seats C37 seat, 4-way adjustment for the driver seat and front passenger seat + Nissan black decorative plate, seat belt lock is fixed on the floor
Second-row seats Split seat for 7 people: with sliding rail, adjustable backrest, Nissan black decorative plate, seat belt lock is fixed on the floor
Third-row seats Split seat for 7 people: middle seat with seat belt
Safety belt Nissan black webbing and cover (three-point type), ordinary seat belt (with emergency locking retractor)
second row:split seat for 7 people:3+3；8 seats:2+2+3
third row:split seat for 7 people:3+3+3；8 seats:3+2+3
Floor mat Front floor carpet: M023 grey lychee pattern 1.6mm foam + noise insulation cotton, split type.
Insulation carpet of engine compartment : M023 grey lychee pattern 1.6mm foam+EVA.
Rear floor carpet: M023 grey lychee pattern 1.6mm foam + noise insulation cotton

Front panel insulation pad

 ●

Floor mat

 Nissan black

Flooring strips/steps

 Nissan black

Security , intelligence

Child lock

 ●

ISOFIX

 Basic: IA
Optional: NA (8 seats)

ABS/EBD

 ●

Reversing radar

 ●

Central lock

 ●

Remote control Key

 ●

Slow charging

 ●

Fast charging

 ●

Low-speed pedestrian warning

 ●

Others

Mechanical jack

 ●

“●”——Indicates that this configuration is available, “○”——Indicates that this configuration is optional,

“-”——Indicates that this configuration is not available

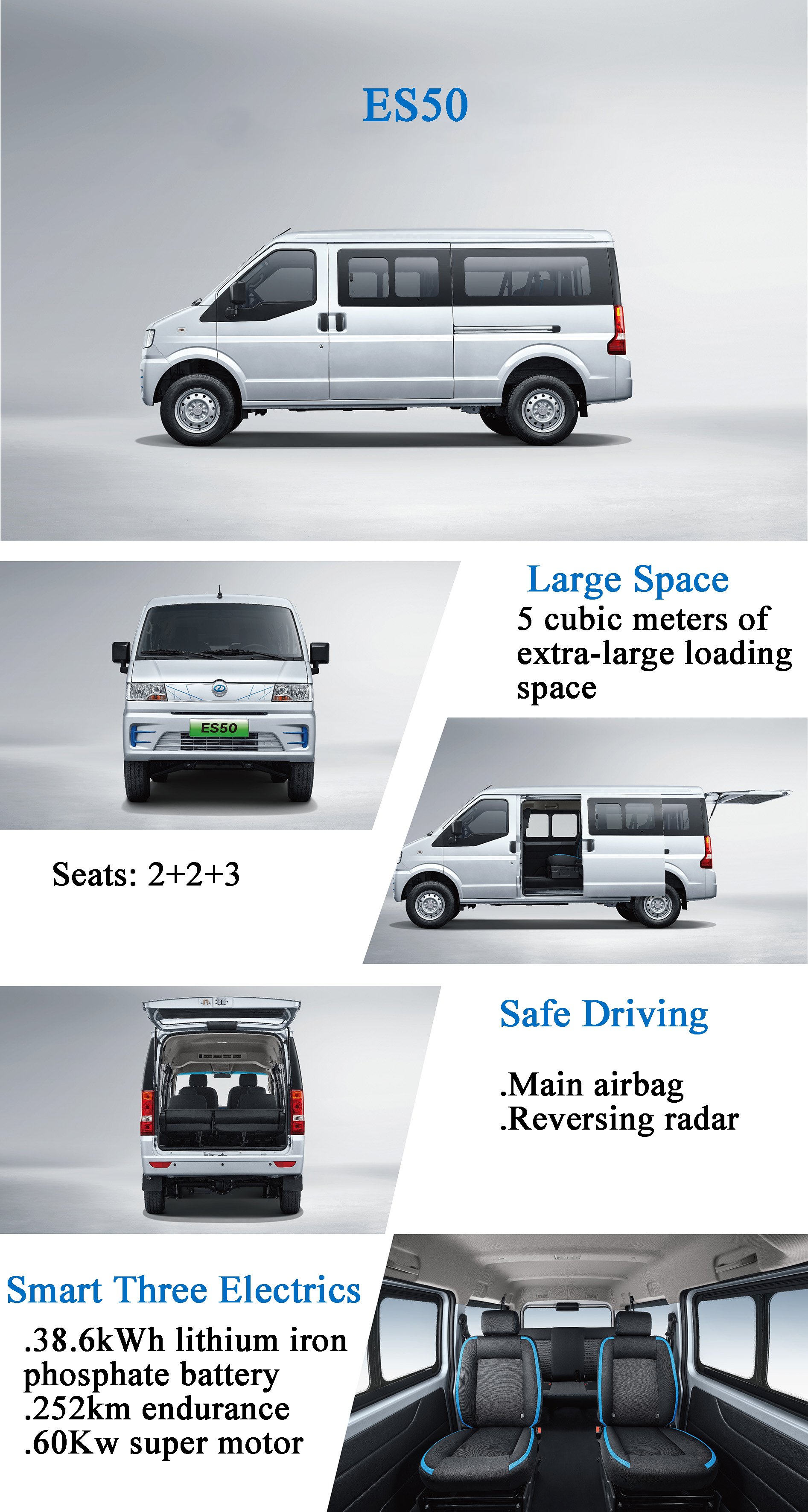

Ruichi ES50 Feature

2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans

Ruichi ES50 Pure electric mini truck

Large space, commercial or passenger

2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans


Certification

2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans

Facotry

2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
2024 RUICHI Electric Vans And Trucks 7 Passenger Vehicles ES50 Small Electric Vans
