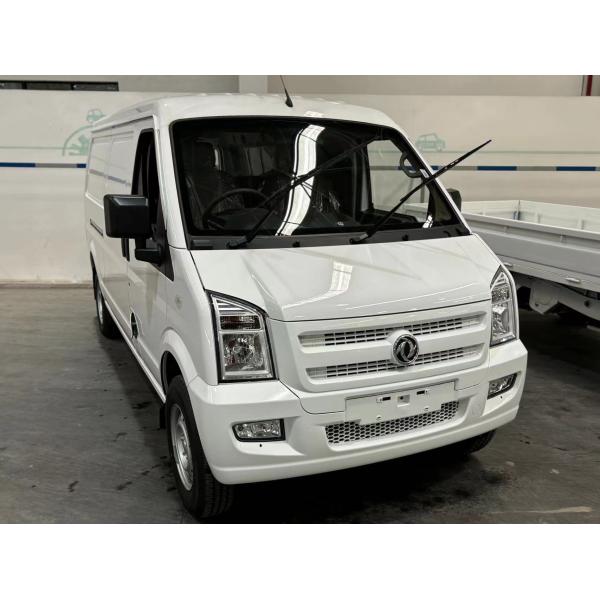

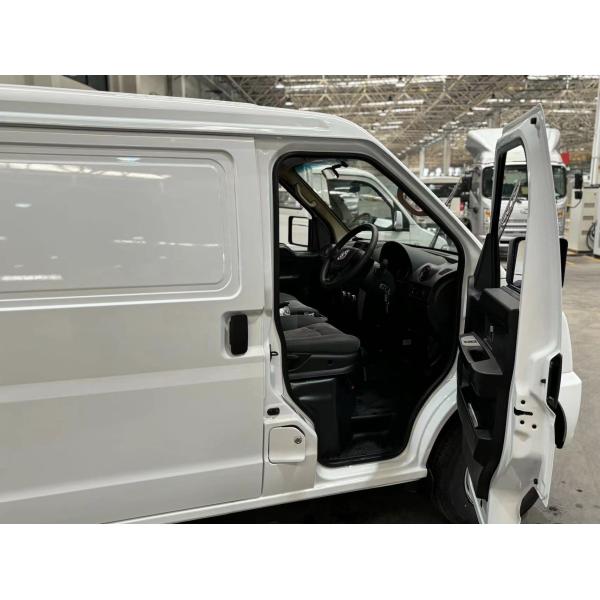

DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van
DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van
DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van
DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van
DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van
DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van
DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van
DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van
DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van
DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van
Specifications
Brand Name :
DFSK
Model Number :
EC35
Place of Origin :
Chongqing,China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
80000 units per year
Delivery Time :
10-15 working days
Name :
DFSK EC35
Steering :
Right Hand Drive
Van Size :
4500*1680*1985 mm
Wheelbase :
3050 mm
Max Speed :
80-100 km/hour
Battery :
Lithium Iron Phosphate
Battery capacity :
38.7 kwh
Cargo box size :
2570*1440*1270 mm
WLTP Range :
268 km
Charging type :
AC & DC
Description

DFSK EC35 RHD EV Right Hand Drive Electric Cargo Van

DFSK EC35 Right Hand Drive Electric Cargo Van Specification:

Item

R1

Basic

Optional

Gotion (Lithium Iron Phosphate)

Basic Parameter

Length × Width × Height (mm)

 Box van:4500*1680*1985

Wheelbase (mm)

 3050

Wheel tread (mm)

 1435/1435

Curb weight (kg)

 1510

Gross weight kg

 2600

Acceleration time of 0-50km/h

 ＜10S

Acceleration time of 50-80kW/h

 ＜15S

Max Speed (km/h)

 80 100

Seating capacity

 2 2+2

Electric drive and rear axle
Motor Type Greatland:
TZ210XSR41Permanent Magnet Synchronous Motor

Motor Cooling Method

 Water cooling

Rated Power/Peak Power (KW/rpm)

 30/3600—60/9000

Rated torque / Peak torque(N.m)

 80/200

Drive axle speed ratio

 10.5

Estimated Range [WLTP]

 Max. speed 80:268km Max. speed 100:163km

Voltage

 307.2

Battery capacity kWh

 38.7 standard:With heating and maintenance switch

OBC power

 6.6KW

Transmission/Reducer

 NA

System structure

Body Type

 Integral body

Drive Mode

 Rear egine, rear drive

Front Suspension

 MacPherson Independent Suspension

Rear Suspension

 Non-independent 5-leaf-spring suspension

Brake

 Front disc and rear drum, Mechanical Parking Brake

Steering Type

 EPS

External Configuration

Tire

 185R14LT 8PR

Tire Rim

 Silver steel wheel( optional black steel spare tire )

Wheel Cover

 Steel wheel decoration cover (DFSK logo) Steel wheel decoration cover (SOKON logo)

Wheel Nut

 Galvanized nuts

Front/Rear Bumper

 the same color

Grille

 same color

Front/rear mudguard

 IA,without logo

Front combination headlight

 European standard regulation requirements: automatic headlight lighting function

Front fog light

 IA

Daytime running light

 European standard regulation requirements:IA

Side turn signal

 White lamp shade and yellow light bulb

Wiper

 Front wiper( with bone )
Exterior Rear view Mirror Standard type, matt black, external manual adjustment Electric Exterior Rearview Mirror

Sunroof

 NA

Outer handle

 Matt black
Glass 2 seats:lift glass for front door,panel for middle sliding door/rear side ；glass for back door
4 seats:lift glass for front door,glass for middle door;glass for back door,panel for rear side

Glass lifter

 electric front door

Pillar black film

 NA

External cut glue strip

 IA

Sliding door/rail decoration

 Double sliding doors: matt black trim

Rear combination light

 Double Reverse Lights

Rear fog light

 Double Fog Lights

Retro reflector

 Independent retro reflector

High Mounted Stop Lamp

 IA

Reflective Logo

 NA

Car Spoiler

 NA
Exterior decoration Front door trim: matt black; exterior trim of fender: matt black;
D-pillar trim: body color; rear headlight trim: black leather pattern

Rear license plate lamp cover

 body color
Full Vehicle Logo Model number:DFSK EC35
rear sign:NA
Logo:DFSK
Nameplate:soft(English for European standard )		 Model number:NA
rear sign:NA
Logo:SOKON
Nameplate:soft(English for European standard )
Luggage rack NA

External spray pattern decoration

 Customizable
Side protection plate for battery pack NA
Motor protective cover NA
Big surrounded NA

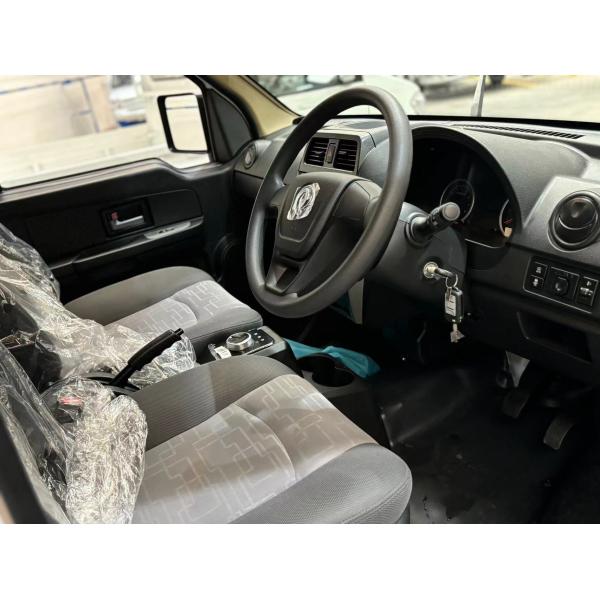

Internal configuration

Interior style

 Black interior

Sun visor

 Yellow,double visors without make-up mirrior

Inside rear view mirror

 Nissan black, adhesive, with anti-glare
Dashboard Combination instrument requirements:
White background light + charge display +unfastened reminder of seat belt + unclosed reminder of door+ range display (English display, metricinstrument)		 Combination instrument requirements:
White background light + charge display +unfastened reminder of seat belt + unclosed reminder of door+ range display ( Display in English, imperial gauge dial shows MPH + km/h, LCD shows MPH)To be certified

Audio-visual system

 MP5 ,DAB radio,multiple language options

Speaker

 2

Warm air operation mechanism

 Titanium silver three-knob decorative ring , Nissan black body
Cigarette lighter IA
Ashtray IA

Steering wheel

 Multifunction steering wheel+DFSK Logo+Airbag SOKON status without airbag
Adjustable steering wheel NA
Combination switch upper and lower cover Nissan Black

Shift control mechanism

 Knob type

Handbrake

 Mechanical handbrake

Control box + cup holder

 Nissan black control box; without rear cover,with cup holder

Indoor lights (front/middle/rear)

 Front reading light: yellow, 1 bulb; Rear interior light: single switch
Front door light switch IA
Rear door light switch IA
Welcome light NA

Horn

 high-pitched, spiral type

Air Conditioning

 Single steam
Interior panel (door/side) Front door: Nissan black, injection molded interior panel, with front triangular trim, Nissan black; middle door/ rear side/back door: Nissan black artificial leather

Column decoration

 A pillar:yellow(with handle)

Roof

 Hard top, non-woven, yellow

Safety handle

 V27 design, yellow, 2 seats( 1 );4 seats ( 3 )
Car handle (installed on the column) A-pillar handle: 1 each on the left and right, B-pillar handle: yellow. (2 seats are unavailable) / (4 seats 1 each on the left and right)

Front door armrest + swing handle

 front door is available,middle door is unavailable
Inner open handle Front door: handle in matt grey, base in Nissan black
Middle door: handle and handle base in Nissan black
Lock button + bushing Front door: matte gray+ red warning strip
Middle door: Nissan black

Description of seats

 fabric: M080+M081；Nissan black seat trim
Front seats Adjustable headrest, with side trim cover,seat belt latch on the floor；
4-way adjustment for the driver seat is equiped with slide rails and SBR gravity sensing function,height is not adjustable；
4-way adjustment for the front passenger seat is equiped with slide rails and SBR gravity sensing function,height is not adjustable；
Second-row seats NA one-piece extended seat for 3 people, basic headrest,
seat belt latch on the floor；seat is equiped with SBR gravity sensing function
Third-row seats NA
Forth-row seats NA
Seat hinge cover NA

Safety belt for front row

 Nissan Black,3 - point
Safety belt for second-row NA 3+3
Safety belt for third-row NA
Safety belt for forth-row NA
Unbuckled reminder of seat belt European standard regulation requirements: each seat needs to be equipped with unfastened reminder of seat belt (4 seats)
Rear floor armor PVC floor Aluminum floor
Carpet noise insulation cotton NA
Front wall heat insulation pad NA

Floor decoration

 Nissan black footrest

Floor bead/step

 Nissan black
Storage box NA
Shelf NA

Security , intelligence

Airbag

 airbag for driver seat(DONGFENG Logo) airbag for front passenger seat(to be developed)
Child lock NA
ISOFIX interface NA
ABS/EBD IA
Pedestrian alert system IA
Remote monitoring NA
Driving habit correction system NA
Reversing radar IA
Reversing video image IA

Central control

 Remote control

Key

 Remote control + integrated style
Rear defrost IA
Electric door NA
keyless entry & start system(PEPS) NA
BCM NA
Vehicle Controller (VCU) IA
Cruise control system NA
Panoramic parking system NA

Navigation system (GPS)

 Retention of GPS(No map navigation)

Electronic stability control(ESC)

 IA(no certification)
Electronic anti-theft system NA
Tire pressure monitoring system (TPM) IA
Traction Control System (ASR/TCS/TRC/ATC) NA
Emergency Brake Assist System (EBA/BAS/BA/EVA) NA
Electronic Parking Brake (EPB) NA
Slow charge European standard integrated fast and slow charging
Fast charge

Body description

Grill/partition

 Plastic partition Aluminum partition

Others
Visual standard parts (including the visual range with five doors and one cover open) Environmentally friendly standard parts

“●”——Indicates that this configuration is available, “○”——Indicates that this configuration is optional,

“-”——Indicates that this configuration is not available

Feature

DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van

DFSK EC35 small electric cargo van 300km Mile range per charging
DFSK EC35 mini electric delivery van
DFSK EC35 electric cargo van minivan Large Cargo Space is your best choice
The cargo space of 2 seats is 4.8 cubic meters, and the cargo space of 5 seats is 3.1 cubic meters
DFSK EC35 cheap electric cargo van Fast Charging
DFSK EC35 mini electric delivery van Approved for fast charging,90 mins

DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van

DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van

Certification

DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van

DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van

Facotry

DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van

DFSK EC35 RHD Vehicles EV 80 - 100km/Hour Electric Cargo Van
