Enhanced Resolution Test Chart ISO12233 4000 Lines For High Precision Imaging Devices
Enhanced Resolution Test Chart ISO12233 4000 Lines For High Precision Imaging Devices
Specifications
Certification :
ISO9001
Specification :
Max. Width 3500mm, Max. Height 1320mm
Packaging Details :
Carton boxes, plastic sponge boxes, customized wooden boxes, etc
Supply Ability :
The average monthly production capacity for calibration plates and film is 300,000 pieces
Delivery Time :
10 Work Days
Shipping Option :
FedEx and UPS
Place of Origin :
China
Payment Terms :
T/T
MOQ :
50
Brand Name :
DFOPTIX
Material :
Photolithographic white film/optical white film or film
Description

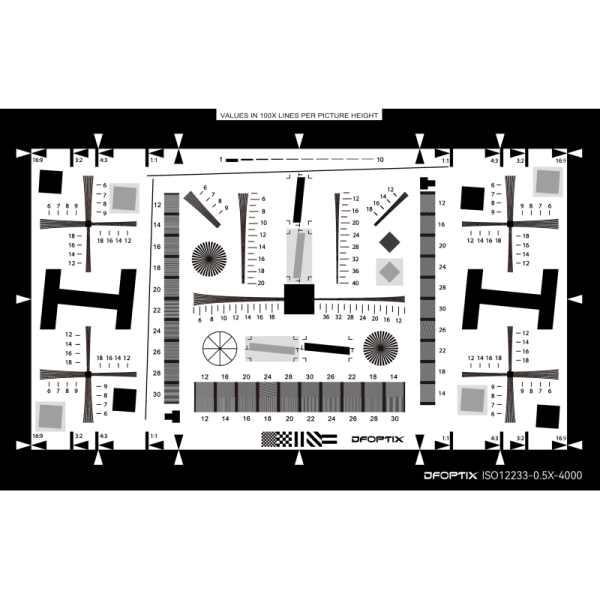

ISO12233 Enhanced Resolution Test Chart 4000 Lines

The ISO12233 4000 line is an enhanced resolution test chart that complies with the ISO 12233 standard, primarily used for testing the clarity and resolution performance of high-precision imaging devices.
1. Core features
Based on the standard 2000-line test card, it adds a star pattern and 5° oblique edge elements, covering a resolution measurement range of 500-4000 lines/image height. The central area supports up to 4000 lines, while the edge area supports 2000 lines, meeting the testing requirements of high-pixel imaging devices.
2. Specification parameters
Offering a range of sizes including 0.5X, 1X, 2X, 4X, and 8X, the mainstream type is reflective, with the option to customize for transmissive types. The materials predominantly utilize high-precision photographic paper laminating. Different magnifications correspond to varying effective testing areas, accommodating a wide range of testing scenarios from mobile phone lenses to long-distance large-scale optical systems.
3. Main purposes
It is widely used for standardized evaluation of image acquisition devices such as civilian digital cameras, mobile phone cameras, and surveillance cameras in terms of resolution and MTF sharpness, and is the core benchmark tool for verifying the resolution performance of imaging systems in the industry.
