The multi-sensor fusion calibration room for intelligent vehicles is a core infrastructure in the research, development, manufacturing, and after-sales maintenance of autonomous vehicles. Because modern intelligent vehicles heavily rely on the collaborative work of multiple sensors, such as LiDAR, cameras, millimeter-wave radar, ultrasonic radar, and inertial navigation systems (GPS/IMU), to "see" the world, even minor mechanical installation errors or deformations caused by thermal expansion and contraction can lead to misalignment of data from different sensor coordinate systems. The calibration room is a precision control environment designed to completely solve this "alignment" problem.

1. Main Functions of the Calibration Room

(1) Eliminating Installation and Manufacturing Errors: During sensor assembly, vehicle body structural components and brackets may exhibit micron- or millimeter-level physical deviations. The calibration room is used to accurately measure and correct these initial deviations.

(2) Achieving Joint Calibration: Mapping sensor data from different physical locations and with different sensing principles (such as point cloud data from LiDAR and image pixels from cameras) to a unified three-dimensional coordinate system of the vehicle body, ensuring the accuracy and redundancy of perception fusion.

(3) Parameter Output and Verification: Outputs high-precision intrinsic parameters (such as lens distortion and focal length) and extrinsic parameters (such as rotation matrix and translation vector), and verifies through retesting to ensure the sensing system meets mass production and safety standards.

2. Hardware and Software Configuration of the Calibration Room

(1) High-Precision Physical Environment:
Optical Darkroom/Constant Temperature and Humidity Control: To avoid interference from drastic changes in ambient light or temperature fluctuations to the camera and lidar, the calibration room typically has light-shielding, dustproof, and constant temperature characteristics.

High-Precision Base Ground and Four-Wheel Alignment System: Ensures the vehicle is parked level and establishes an absolute vehicle reference coordinate system.

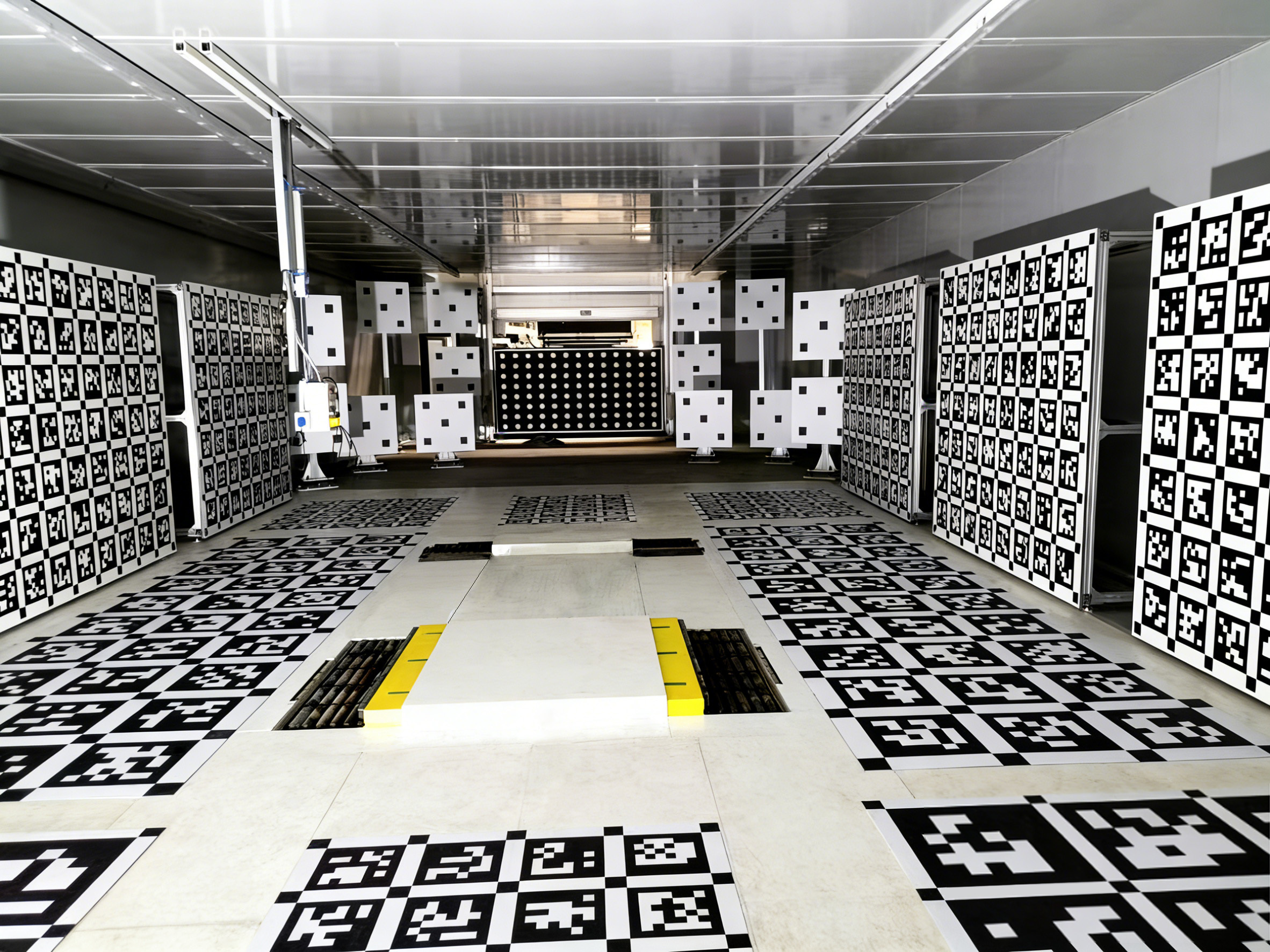

(2) Professional Calibration Targets: Equipped with dedicated multi-functional calibration boards, such as checkerboard, dot array, vertical boards, ArUco/AprilTag coded marker boards, and radar reflectors with specific geometric shapes, for accurate identification by both optical and laser equipment.

(3) Automated Calibration Hardware and Software System: Integrating mechanical control mechanisms, machine vision automatic alignment algorithms, and background analysis software, this system automates the entire process from target recognition and feature extraction to automatic calculation of extrinsic parameters, significantly reducing errors caused by manual intervention.

3. Application Scenarios

(1) OEM Off-Line Inspection: As the final core process on the automotive assembly line, this ensures that every new intelligent driving vehicle off the production line has perfect "vision."

(2) Autonomous Driving R&D and Testing Center: Regular deep recalibration is performed after algorithm iterations, sensor scheme changes, or after vehicles undergo high-intensity road tests.

(3) Advanced After-Sales Service Center: Used to restore the factory-grade accuracy of the core perception system after a minor collision, windshield replacement, or sensor maintenance in an intelligent driving vehicle.
