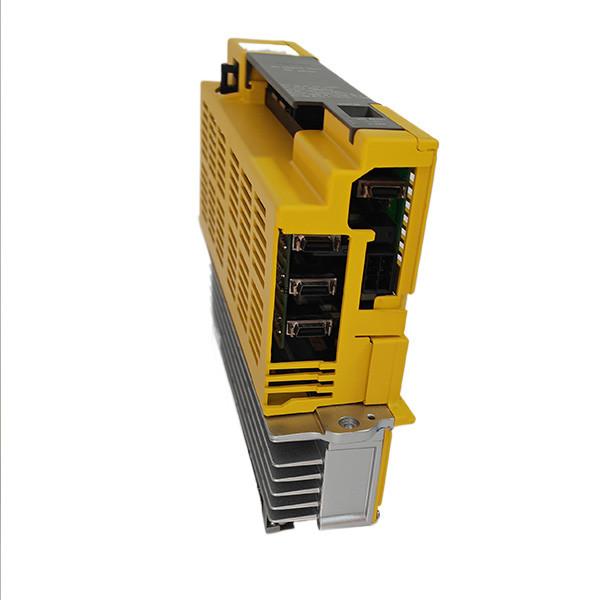

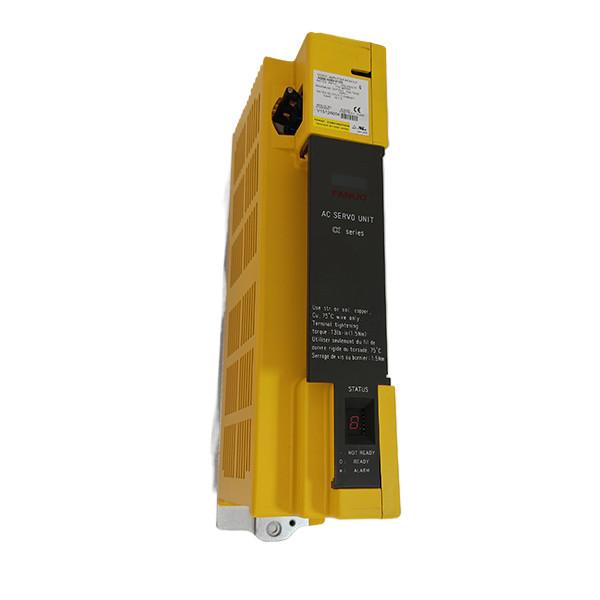

FANUC CNC Single-Axis Drive A06B-6117-H103 αi SV 20

The FANUC A06B-6117-H103 αi SV 20 is a high-performance single-axis servo amplifier designed for precision motion control in CNC (Computer Numerical Control) systems. Part of FANUC's advanced αi series, this drive is engineered to deliver reliable and efficient operation in industrial applications such as machine tools, robotics, and automation systems. Below is a detailed overview of its features, specifications, and applications.

Key Features

1. High Power Density: Compact design with high output capability.

2. Advanced Control: Supports HRV2 and HRV3 (High Response Vector) control for superior motion accuracy.

3. Modular Design: Easy integration with other FANUC components.

4. Regenerative Braking: Efficient energy management during deceleration.

5. Robust Construction: Designed for harsh industrial environments.

Specifications

The table below summarizes the technical specifications of the A06B-6117-H103 αi SV 20:

Applications

The αi SV 20 drive is widely used in CNC machinery and automation systems, including:

• Machine Tools: Lathes, milling machines, and grinders.

• Industrial Robots: Precision motion control for robotic arms.

• Automated Manufacturing: High-speed pick-and-place systems.

• Packaging Machinery: Synchronized motion for conveyor systems.

Advantages

1. Precision Control: Delivers high-speed, high-accuracy positioning.

2. Energy Efficiency: Regenerative braking reduces power consumption.

3. Easy Maintenance: Modular design simplifies troubleshooting and replacement.

4. Scalability: Compatible with a wide range of FANUC motors and CNCs.

Conclusion

The FANUC A06B-6117-H103 αi SV 20 is a versatile and powerful servo amplifier, ideal for demanding CNC applications. Its robust design, advanced control features, and seamless integration with FANUC systems make it a preferred choice for industrial automation. Whether used in machining centers or robotic systems, this drive ensures reliable performance and long-term durability.
