Product Overview

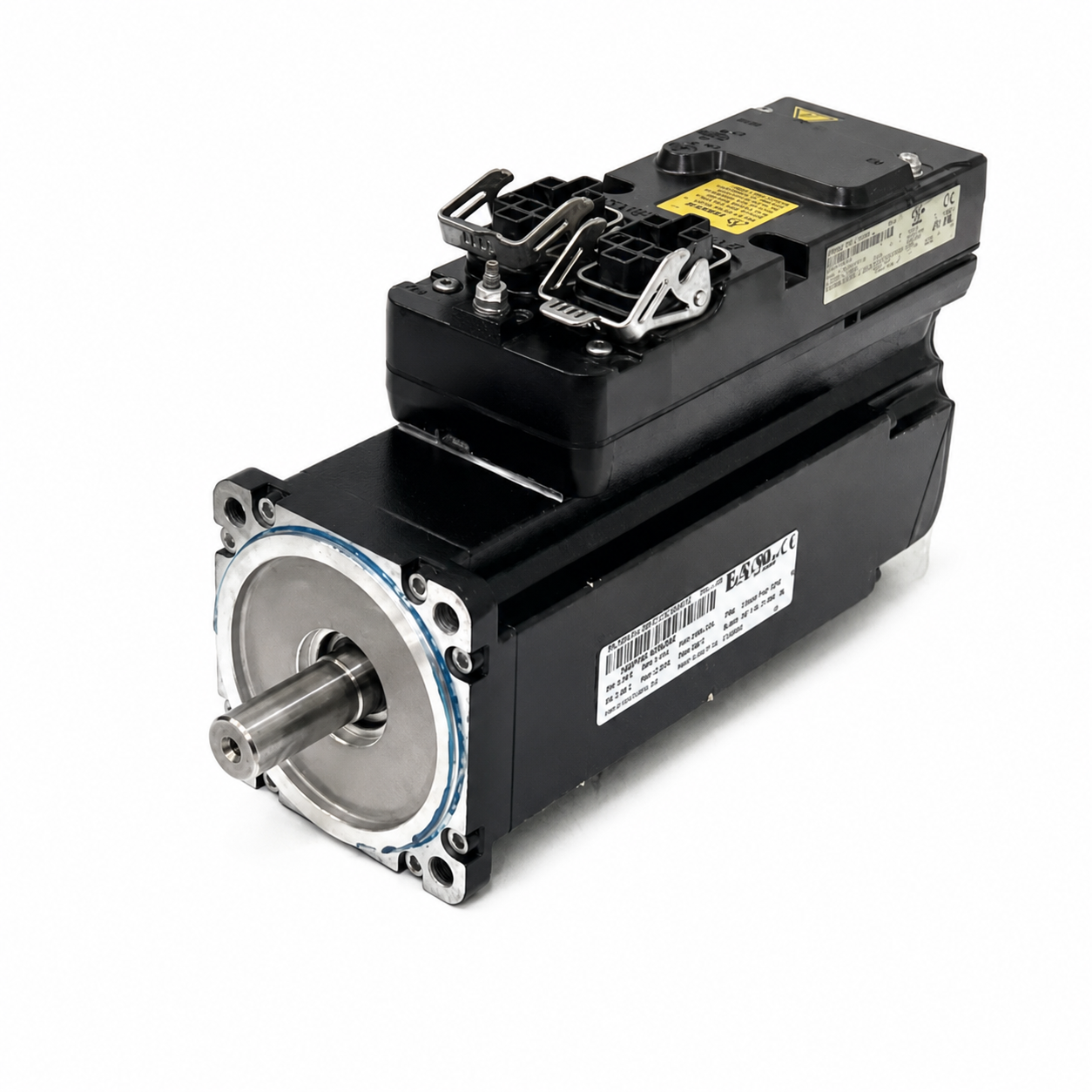

The B&R 8LVA23.B1030D000-0 is a compact self-cooled synchronous servo motor designed for precise positioning, speed control and dynamic motion applications. It belongs to the 8LVA size 2 product family and is commonly integrated with B&R ACOPOSmicro and compatible ACOPOS servo drive systems.

This version has a nominal speed of 3000 rpm, a stall torque of 1.35 Nm and an 80 VDC motor voltage class. Its compact mechanical construction is suitable for packaging machinery, handling systems, assembly equipment, testing machines and other applications where installation space is limited.

Main Features

• Compact 8LVA size 2 synchronous servo motor
• Self-cooled construction for space-efficient machine installation
• Nominal operating speed of 3000 rpm
• Stall torque of 1.35 Nm
• Four pole-pair motor design
• B1 EnDat 2.2 inductive 16-line multi-turn encoder
• Smooth shaft without an oil seal
• Swivelling angled connector arrangement
• IP54 standard protection configuration
• Without an integrated holding brake

Technical Specifications

Compatible System and Applications

The motor is designed for use in compact B&R motion-control systems. Typical applications include packaging machines, pick-and-place axes, small conveyors, laboratory automation, electronic assembly machinery, dosing equipment and compact handling systems. Drive selection must be based on the motor current, required torque, duty cycle and installed feedback system.

Maintenance and Replacement Notes

Before replacement, compare the complete model 8LVA23.B1030D000-0 with the original motor nameplate. Verify the encoder system, brake configuration, shaft design, connector orientation, motor revision and compatible ACOPOS drive. Motors sharing the shortened designation 8LVA23 are not automatically interchangeable.

Related Models

Related configurations include 8LVA23.B1030D200-0, 8LVA13.B1030D000-0, 8LVA13.B1030D200-0, 8LVA33.B1021D000-0 and 8LVA33.B1021D200-0. Confirm the full order code before selecting an alternative.

Inquiry and Supply Notes

Please provide a clear nameplate photograph and the complete motor model when requesting a quotation. Confirm condition, motor revision, encoder version and regional availability before quotation.
