Specifications
Brand Name :
DEYI
Place of Origin :
Hunan, China
Model Number :
DY-EP600-1
MOQ :
3000
Main Material :
Epoxy
Color :
A:Black; B:Grey White
Viscosity A :
5000-15000cps
Viscosity B :
1000-3000cps
Operation Time :
1H
Mixing Ratio :
10:9
Temperature Range :
-60~125℃
Hardness :
80~85A
Dielectric Strength :
>25kv/mm
Tensile Strength :
>40Mpa
Bending Strength :
>80Mpa
Curing Condition :
85℃/3-5H+105℃/6-8H
Preheat Temperature :
50-60℃
Defoaming Time :
5-10 minutes
Curing Time :
85℃/3-5H+105℃/6-8H
Description

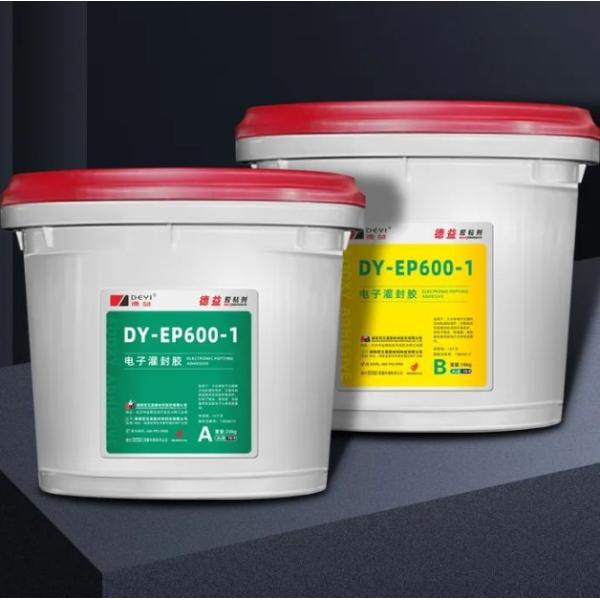

Electronical Potting Adhesive, Epoxy Resin Potting Compound With High Temperature Resistance of Electrical Parts

Company Information

Company overview

Hunan Baxiongdi New Material Co., Ltd. was established in 1999. 25 years professional manufacture experience, we become one of the largest manufacture on adhesive in Changsha city Hunan China.

Our main products are including RTV silicone gasket maker, liquid nails adhesive, threadlocker sealant, modified acrylic adhesive, epoxy adhesive and 502 super glue. They are well approved by SGS, ROSH, ISO9001. OEM are welcomed.

We’d like to cooperate with customers from all over the world based on mutual-benefit. We always put “Customers First” in our mind and commit ourselves to providing high quality service to all reliable and esteemed international partners and clients.

Product Description

FUNCTION

ADVANTAGE

1.Effectively eliminating the adverse effects of ultraviolet light, ozone, moisture, and chemicals on circuits and electronic components.

2.High and low temperature resistance and electrical insulation performance can fully protect relays from external interference.

3.High thermal conductivity, low expansion rate, insulation, waterproofing, oil resistance, dust prevention, corrosion resistance, aging resistance, and resistance to cold and hot impacts.

Packaging & Shipping

THE USAGE METHOD

1. Before mixing, first preheat component A and component B in a container for 2 hours at a preheating temperature of 50-60 ℃, and then stir thoroughly and evenly.

2. When mixing, mix according to the mass ratio of A: B=100:90 and mix thoroughly and evenly

3. Defoaming: After mixing the rubber material, vacuum defoaming should be carried out for 5-10 minutes. During the defoaming process, attention should be paid to the overflow of bubbles

4. Sealing: The mixed adhesive should be poured into the poured product as soon as possible to avoid poor fluidity caused by the thickening of the adhesive in the later stage

5. Curing, 85 ℃/3-5H+105 ℃/6-8H

FAQ

Q1: Are you a factory or a trading company?
Of course, we are a Factory.

Q2: Can you provide the samples?

Yes, we can. The sample is free, and you only need bear the freight.

Q3: How long can I got sample?

The sample time is 5-7 days and express delivery usually needs 5-7 day.

Q4: Production period and delivery time?

3 days to 7 days.

Q5: What's your MOQ (min order quantity) ?

Our MOQ is 3000 pairs.

Q6: How can you control of product quality?

We have experienced and skilled labors and QC team. Goods are 100% inspection before packing.
