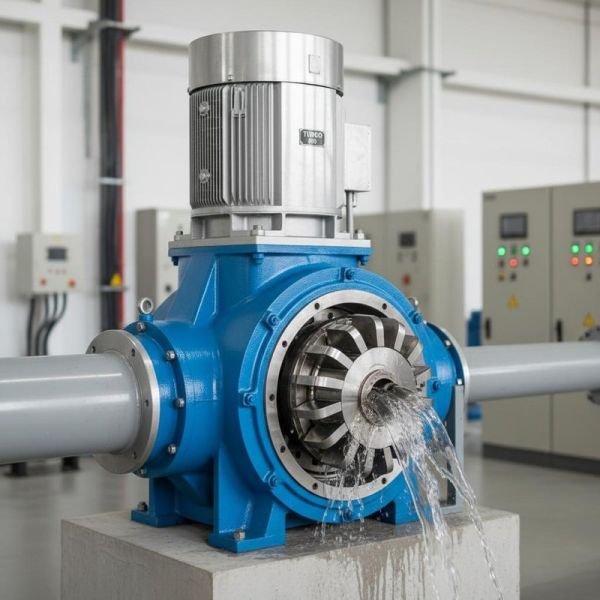

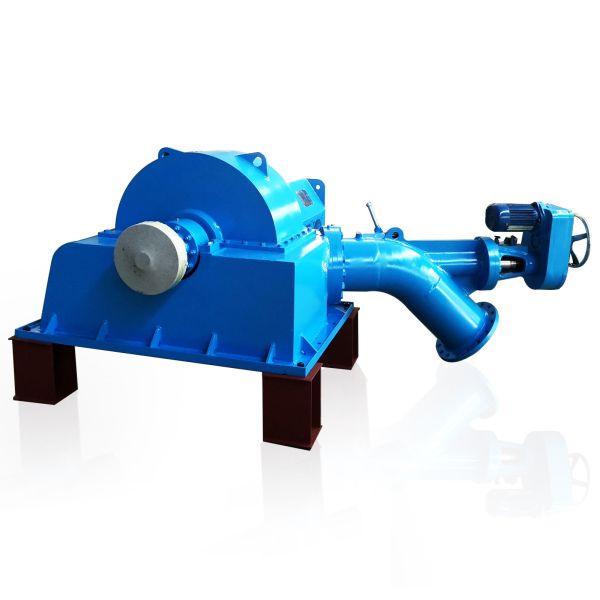

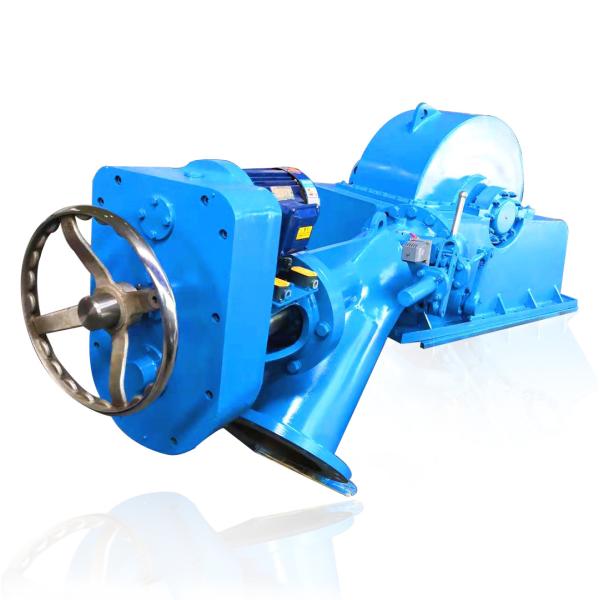

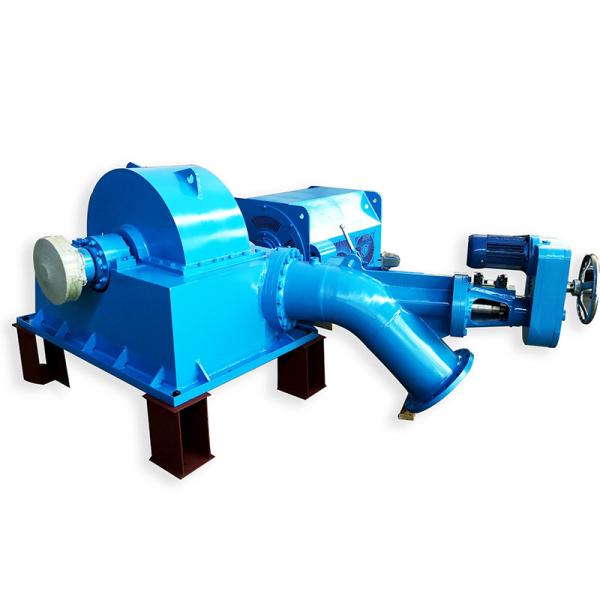

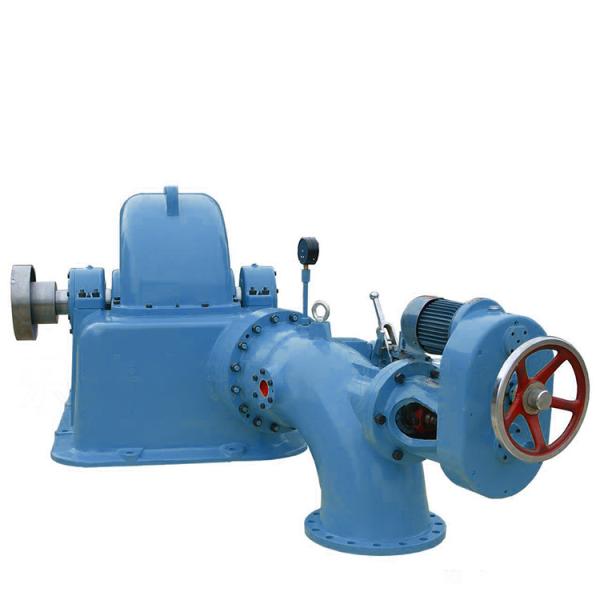

400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
400-600mm Pipe Diameter Turgo Turbine Generator with Stainless Steel Runner and Vertical Installation for Hydropower
Specifications
Description
Turgo Turbine Generator - 400-600mm Pipe Diameter
Advanced hydropower generation solution delivering efficient and reliable power output from 100 KW to 1000 KW. Engineered for small to medium-scale hydroelectric projects with optimal performance, durability, and cost-effectiveness.
Key Features
  • Compact structure for versatile installation in various hydropower settings
  • High efficiency rating up to 87% for optimal energy conversion
  • Impulse principle operation handling wide range of water flow rates and heads

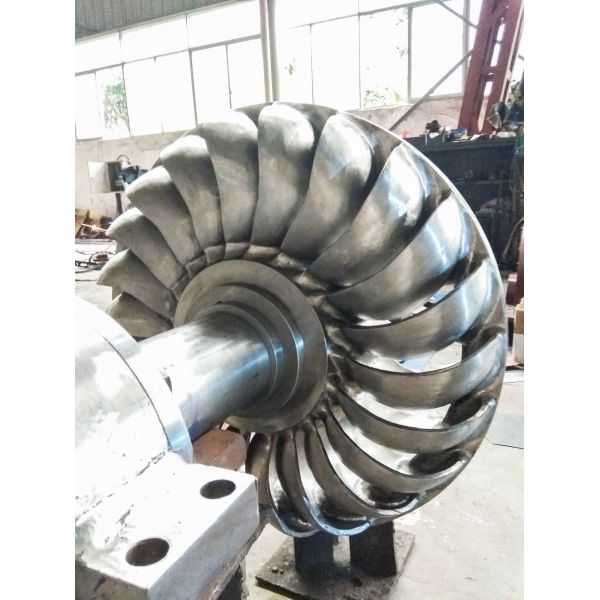

  • Durable construction with stainless steel or high-strength alloy runner materials
  • Vertical installation method for space-efficient operation
  • Long service life with minimal downtime requirements
  • Environmentally friendly design with minimal ecosystem impact
Technical Specifications
Parameter Specification
Product Name Turgo Turbine Generator
Generator Type 3-phase Alternator
Operating Head Range 15m to 300m
Voltage Options 220/380V, 10.5KV or 13.8KV
Pipe Diameter 400-600 mm
Weight 500-1000 kg
Runner Diameter 350-400 mm
Design Speed 600-1000 R/min
Excitation Device 5 In 1 Integrated Control Panel
Power Range 100 KW to 1000 KW
Applications
Ideal for small hydroelectric plants, remote power supply systems, community-based renewable energy projects, rural electrification initiatives, and industrial power applications. Particularly suitable for mountainous regions with consistent water flow and off-grid renewable energy systems.
Product Details
Brand Name
DSSD-deyang
Model Number
Turgo-XJ-20(300)
Origin
Deyang City, China
Certifications
ISO, CE, TUV
Minimum Order
1 Set
Price
$12,000
Delivery Time
120-200 Days
Supply Capacity
500 Units Per Year
Support & Services
Comprehensive technical support including installation guidance, maintenance procedures, troubleshooting assistance, and performance optimization. Services include on-site inspection, remote technical support, training programs, spare parts supply, and upgrade options.
Packaging & Shipping
Secure export packaging with wooden cases and plastic film protection. Custom-designed packaging with foam inserts and moisture-resistant materials. Multiple shipping options available with tracking and insurance coverage.
Frequently Asked Questions
What certifications does the Turgo Turbine Generator have?
The generator is certified with ISO, CE, and TUV certifications ensuring quality and safety standards.
What is the delivery time and packaging?
Delivery time ranges from 120 to 200 days with export packing including wooden cases and plastic film.
What payment terms are accepted?
Accepted payment terms include EXW, FOB, and CIF for international buyers.
