Specifications
Description

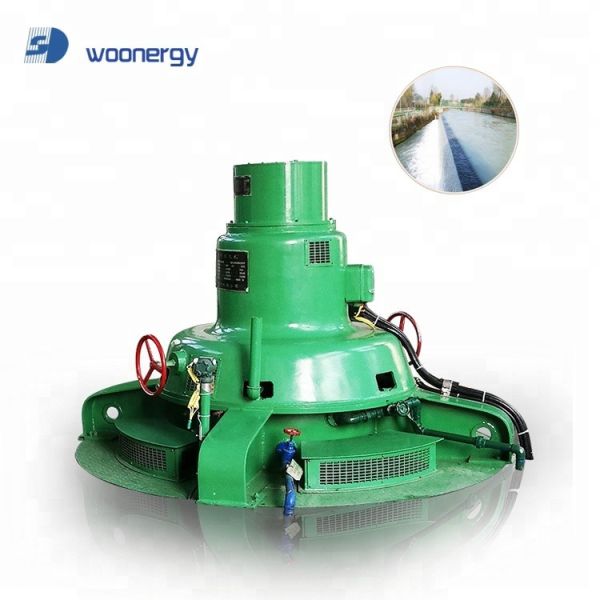

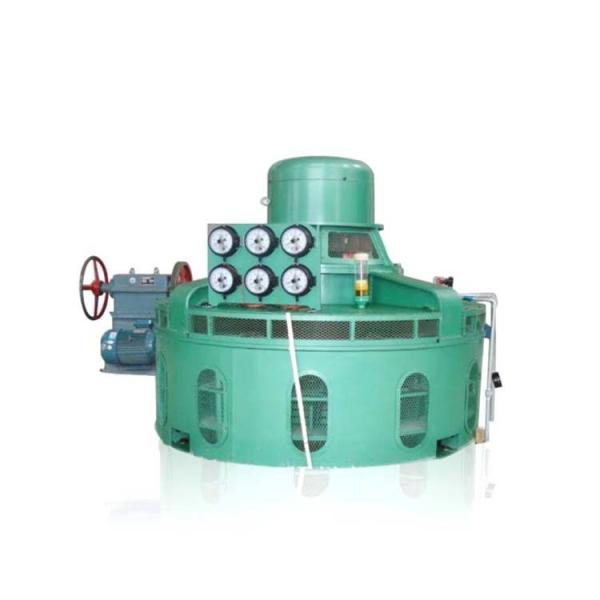

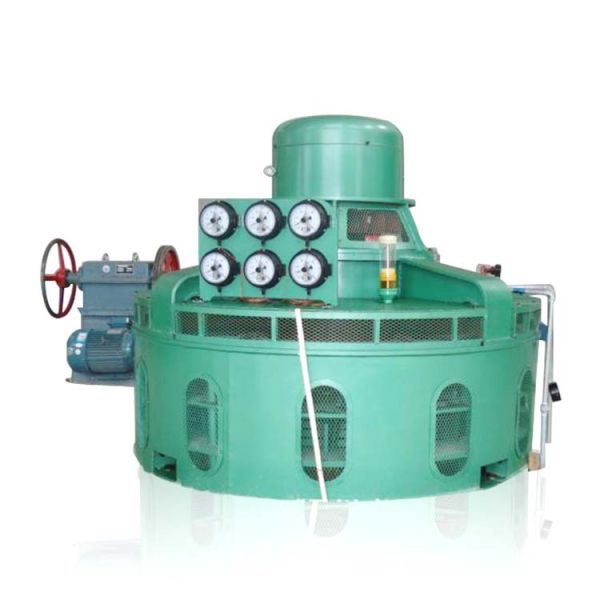

Air Or Water Cooling Kaplan Hydro Turbine Generator
Product Overview
The Kaplan Hydro Turbine Generator is a state-of-the-art water-powered turbine generator designed to deliver exceptional performance and efficiency in a wide range of hydroelectric applications. Engineered to operate optimally under variable flowrate conditions, this high-efficiency turbine generator can handle water flow rates of up to several hundred cubic meters per second, making it ideal for both small and medium-scale hydroelectric power plants.
The adjustable blade design allows it to maintain high efficiency across varying water head (5-30 meters) and flow conditions, resulting in improved overall plant performance and increased power output. With power factor range of 0.8 to 0.9 and multiple voltage options, it ensures effective and stable power delivery to grid systems.
Key Features
  • Product Name: Kaplan Hydro Turbine Generator
  • Type: Water-Powered Turbine Generator
  • Voltage Options: 400V, 800V, 6.3KV, 10.5KV
  • Power Factor Range: 0.8 - 0.9
  • High Efficiency: Up to 95%
  • Cooling Method: Air or Water Cooling
  • Rated Rotor Speed: 400 - 1600 RPM
  • Reliable and robust design for optimal performance
Technical Specifications
OEM Yes
Frequency 50Hz / 60Hz
Flowrate Variable, Up to Several Hundred Cubic Meters Per Second
Power Factor 0.8 - 0.9
Runner Diameter 1 - 10 Meters
Voltage 400V, 800V, 6.3KV, 10.5KV
Generator Frequency 50 - 60Hz
Color Customized Color
Customized Yes
Type Hydro Turbine Generator
Applications

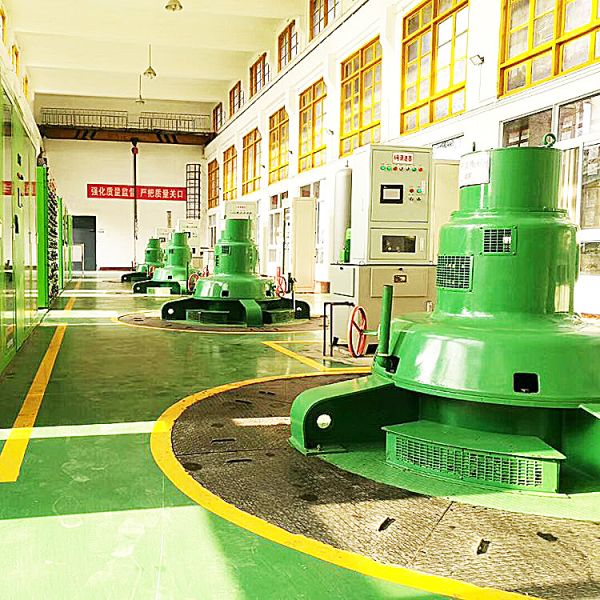

The DSSD Kaplan Hydro Turbine Generator is ideal for hydropower plants in rivers, dams, and irrigation canals where variable flow rates are common. Its adaptability ensures maximum efficiency in generating electricity at both low and high water flow rates, making it perfect for small to medium-scale hydroelectric projects, rural electrification, and renewable energy initiatives.
Customization Options
Our Kaplan Hydro Turbine Generator offers exceptional customization services including cooling method (Air or Water Cooling), color, and power factor optimization. Manufactured in Deyang, China with ISO, TVS, and CE certifications, we support minimum order quantities starting from 1 set with pricing from $30,000 to $5,000,000.
Support & Services
Our technical support team provides comprehensive assistance with installation, operation, maintenance, and troubleshooting. We offer product documentation, expert consultation for system design, regular maintenance services, and training programs for operators to ensure optimal performance and equipment longevity.
Frequently Asked Questions
What is the brand and model of this hydro turbine generator?
The hydro turbine generator is from the brand DSSD, and the model number is Kaplan Turbine Generator.
Where is the Kaplan Turbine Generator manufactured?
The Kaplan Turbine Generator is manufactured in Deyang, China.
What certifications does the DSSD Kaplan Turbine Generator have?
The Kaplan Turbine Generator is certified with ISO, TVS, and CE certifications.
What is the minimum order quantity and price range?
The minimum order quantity is 1 set, and the price ranges from $30,000 to $5,000,000 depending on specifications.
