High Visibility Green Lateral Navigation Buoy 1800mm For Coastal And Offshore Marking
High Visibility Green Lateral Navigation Buoy 1800mm For Coastal And Offshore Marking
High Visibility Green Lateral Navigation Buoy 1800mm For Coastal And Offshore Marking
High Visibility Green Lateral Navigation Buoy 1800mm For Coastal And Offshore Marking
Specifications
Brand Name :
Dexonmarine.
Model Number :
DMF1800
Certification :
ISO9001, IALA
Place of Origin :
Suzhou
MOQ :
1
Price :
1000-3000
Payment Terms :
,L/C,T/T,Western Union
Supply Ability :
1000set/month
Delivery Time :
3-15days
Packaging Details :
Pallets
Service :
Logo OEM , customized detailed requiements
Current :
Up to 6knots
Buoy material :
Polyethylene marine buoys
Buoy lantern :
Solar or DC marine navigation lantern made by Dexonmarine
Visibility :
2nm~10nm (according to models of marine lantern)
Optional funtion :
GPS sync, location, GSM monitoring，AIS communication
Product includes :
Polyethylene shell, foam, 2 lifting points and 1 galvanized steel mooring eye, lifting handles, cast iron ballasts, removable mast, brush top mark.
Lifespan :
15 years
Description

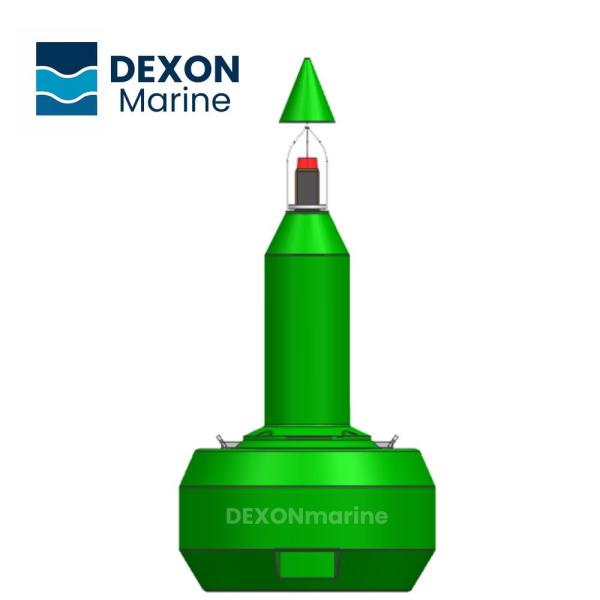

The Dexonmarine DMF1800 IALA-Compliant Lateral Navigation Buoy with 10NM LED lantern is built for deep-sea, port, and river applications, offering high-visibility channel marking in currents up to 6 knots.

High Visibility Green Lateral Navigation Buoy 1800mm For Coastal And Offshore Marking

Diameter: ∅1800mm

Application: Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.

The Dexonmarine DMF1800 IALA-Compliant Lateral Navigation Buoy with optional 10NM LED lantern is built for reliable channel marking in offshore, deep-sea, and port environments. It features a durable polyethylene shell, EPS foam core, radar reflector, galvanized steel lifting/mooring points, cast iron ballast, a removable mast, and a high-visibility IALA topmark. Designed for tough conditions and strong currents, it ensures long-term performance and safe marine navigation.

Optional Equipment: Radar reflectors and marine lanterns

TECHNICAL DATA

General Characteristics
Color Red, Green, White, Yellow as per IALA Recommendations
Diameter 1800mm
Height (no topmark) 2712 mm
Material Polyethylene
Filling EPS Foam
Buoyancy 1800KG
Balance Weight 160KG
Focal Plane From 2035 mm
Structure, Lifting & Mooring Points S235 galvanized steel (SS316 option available)
Float and Mast UV-stabilized grade 16 Polyethylene high density. Rotational moulding
Ballasts Cast Iron. Removable
Topmark Rotomolded Polyethylene, PVC, and Nylon, Aluminum *
Eco-Friendly Recyclable polyethylene. Heavy metal-free. No ecological damages
Certifications
IALA Compliant to IALA E-108
Quality Assurance ISO9001:2015

MORE INFORMATION

MARINE-GRADE MATERIALS FOR LONG-LASTING OFFSHORE USE
Shell Construction: Made of durable LLDPE, built to resist UV, impact, and seawater corrosion—ideal for long-term offshore deployment.
Core: EPS foam filling ensures reliable buoyancy and structural integrity in open-sea conditions.
Mooring: Hot-dip galvanized lifting and mooring points offer secure, corrosion-resistant anchorage.
Topmark: Reinforced PVC and nylon topmark provides high visibility and meets IALA lateral buoy standards.
Eco-Safe: Produced with recyclable, non-toxic materials for environmentally responsible navigation marking.

STABLE FLOATATION FOR HARSH MARINE CONDITIONS
Floatation: Maintains consistent positioning in varying salinity and strong currents.
Stability: Configurable ballast setup supports offshore balance and vertical alignment.
Anchoring: Modular mooring compatibility ensures secure installation in diverse seabed environments.

INTEGRATED 10NM MARINE LIGHTING
The Dexonmarine DMF1800 IALA-Compliant Offshore Lateral Navigation Buoy includes an optional 10NM LED lantern, providing long-range visibility for offshore, port, and river applications.
Available in IALA colors—Red, Green, White, and Yellow—for all lateral and special marking needs.

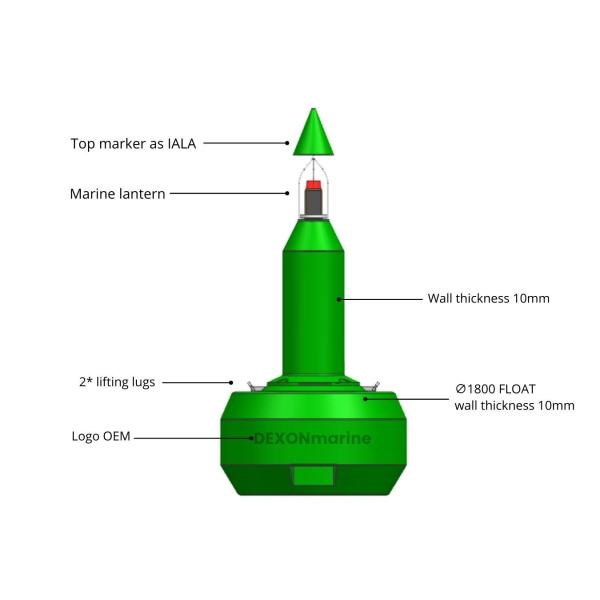

DRAWING(mm)

High Visibility Green Lateral Navigation Buoy 1800mm For Coastal And Offshore Marking
