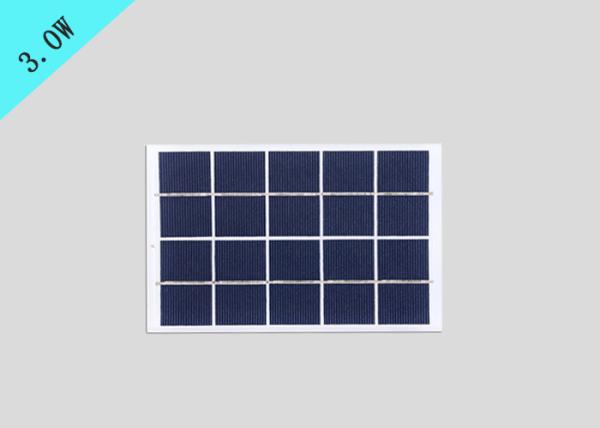

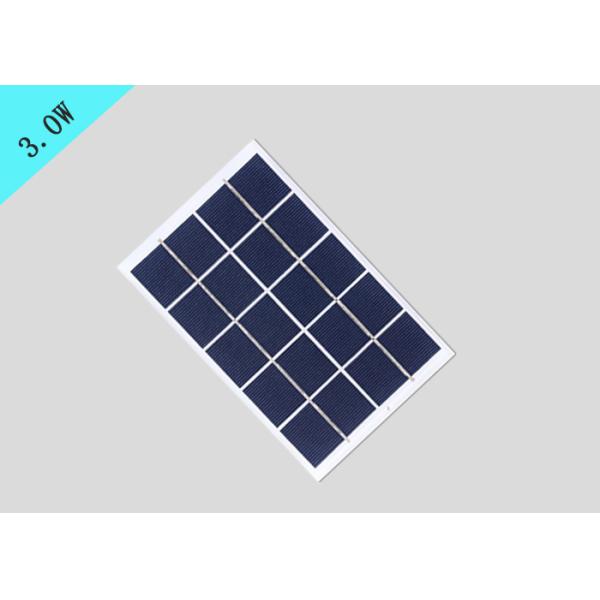

3.0W Mono Cell Solar Panel , Glass Laminating Solar Cells PV System CE Approved
3.0W Mono Cell Solar Panel , Glass Laminating Solar Cells PV System CE Approved
Specifications
Brand Name :
Desun
Model Number :
DS-180115
Certification :
CE RoHS TUV
Place of Origin :
China
MOQ :
1
Price :
Contact Us for the Price
Payment Terms :
T/T, Western Union
Supply Ability :
10000Pcs per Day
Delivery Time :
10-25 days.
Packaging Details :
Neutral Package
Product Name :
3W Monocrystalline Solar Panel
Solar Cell :
Mono Cell
Efficiency :
20%
Power :
3W
Surface Material :
PET/ETFE/Tempered Glass Optional
Backsheet Thickness :
Optional; Depends on the material
Backsheet Colar :
Black / White
Dimension :
180*115mm
Lamination :
PET/ETFE/Tempered Glass Available
Test Standard :
1000W/㎡; 25℃; AM1.5;
Humidity :
10-90%
Storage Temp. :
-20-60℃
Description

3.0W Monocrystalline Silicon Solar Panel Glass Laminated Solar Panel PV System​

1. Description and Advantages:

Monocrystalline solar cells consist of a single silicon crystal (c-Si) and have the highest level of efficiency at approximately 20% compared to other silicon cells. It has a typical black to bluish coloring and is the preferred choice when there is a limited surface available to build a solar PV system. And the minimum lifetime of 20 years has been proven in solar projects for many years.

3.0W Mono Cell Solar Panel , Glass Laminating Solar Cells PV System CE Approved

2. Features and Parameter:

Our Monocrystalline Solar Panels have features such as Long lifespan, competitive price, and high efficiency. We adopt reliable quality cell and other raw materials (EVA, PET, TPT etc) for all our solar panels. Besides, we have more than 10 years experience in manufacturing solar panel which makes us professional enough for the solar panel production.

Dimension(MM) Power(W) Operating Voltage(V) Operating Current(MA) Open-circuit Voltage(V) Short-circuit Current(MA)
43*36*1.3 0.22 2.2 100 2.5 105
60*59*1.6 0.45 5.5 81 6.4 85
73*35*2.0 0.3 2.75 110 3.2 115
75*51*1.6 0.4 5.5 72 6.4 76
82*69*2.2 0.57 5.5 103 6.4 110
90*70*34*2.2 0.51 2.75 188 3.0 198
99*62*2.0 0.73 5.5 132 6.5 140
D101*1.6 0.24 4.95 48 5.5 52
115*115*1.6 2.2 4.95 445 5.5 467
124*76*2.0 1.4 5.5 254 6.5 264

3. Applications of our Monocrystalline silicon solar panel

We provide high quality and high level of efficiency solar panel to our customer. Our Monocrystalline Solar Panel can be widely used in different projects, such as garden light, mobile phone charger, solar power system etc.

3.0W Mono Cell Solar Panel , Glass Laminating Solar Cells PV System CE Approved
