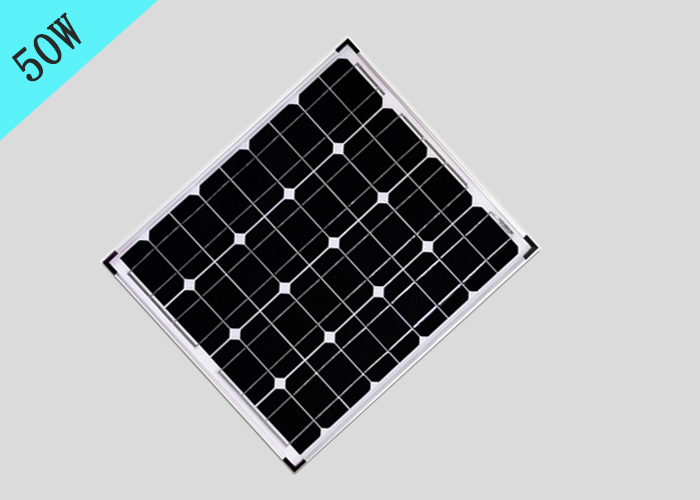

50W Tempered Glass Laminating Solar Cells , Multicrystalline Solar Panels With Aluminum Frame
50W Tempered Glass Laminating Solar Cells , Multicrystalline Solar Panels With Aluminum Frame
Specifications
Brand Name :
Desun
Model Number :
DS-680500
Certification :
CE RoHS TUV
Place of Origin :
China
MOQ :
1
Price :
Contact Us for the Price
Payment Terms :
T/T, Western Union
Supply Ability :
10000Pcs per Day
Delivery Time :
10-25 days.
Packaging Details :
Neutral Package
Product Name :
50 watt polycrystalline solar panel
Solar Cell :
Polycrystalline Silicon Cell
Power :
Customized
Surface Material :
PET/ETFE/Tempered Glass Optional
Backsheet Thickness :
Optional; Depends on the material
Backsheet Colar :
Black / White
Dimension :
680*500MM
Humidity :
10-90%
Storage Temp. :
-20-60℃
Working Temp. :
-20-60℃
Description

50W Tempered Glass Lamination Solar Panel with Aluminum Frame Polycrystalline Solar Panel

1. Advantages

The biggest advantages of Polycrystalline solar panels are the lower price point! In addition, polycrystalline solar panels tend to have a blue hue instead of the black hue of monocrystalline panels.

50W Tempered Glass Laminating Solar Cells , Multicrystalline Solar Panels With Aluminum Frame

2. Details and Parameter of our Polycrystalline Solar Panel

Dimension(MM) Power(W) Operating Voltage(V) Operating Current(MA) Open-circuit Voltage(V) Short-circuit Current(MA)
148*65*1.6 1.4 5.0 280 6.5 290
150*40*0.8 0.6 5.5 105 6.4 110
150*76*2.4 1.5 5.5 272 6.4 285
150*135*3 2.6 6.0 430 7.1 450
43*36*1.3 0.22 2.2 100 2.5 105
60*59*1.6 0.45 5.5 81 6.4 85
73*35*2.0 0.3 2.75 110 3.2 115
75*51*1.6 0.4 5.5 72 6.4 76
142*80*1.6 1.73 4.95 350 5.5 365
143*81*2.0 1.5 5.5 274 6.4 290

3. Application Show:

Both monocrystalline and polycrystalline solar panels serve the same function in the overall solar PV system: they capture energy from the sun and turn it into electricity. They are also both made from silicon, which is used for solar panels because it is an abundant, very durable element. Many solar panel manufacturers produce both monocrystalline and polycrystalline panels.

50W Tempered Glass Laminating Solar Cells , Multicrystalline Solar Panels With Aluminum Frame
