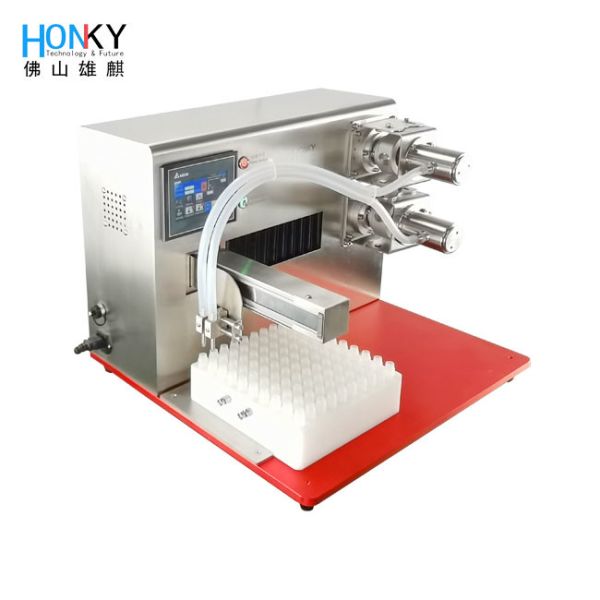

Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
Specifications
Brand Name :
XQ
Model Number :
XQJZ-2S-XYZ
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 20000-25000/ SET
Payment Terms :
T/T
Supply Ability :
20 SETS per Month
Delivery Time :
20 Days
Packaging Details :
Wooden packing(70*70*70 cm)
Machine speed :
60-80 BPM
Pump choosing :
Ceramic pump(0.6-6ml)
Filling error :
±0.5%
Machine Size :
50*50*50 cm
Machine Weight :
40 KGS
Mold :
Customized
Description

Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid Tube Filling

Characteristic of Desktop Automatic XY Axis Tube Filling Machine:

This compact, precision tube filling machine is designed for small-volume liquid filling applications, featuring advanced automation and high-accuracy dispensing technology.


Key Features
1.XY Axis Automation: Programmable XY movement for precise tube positioning


2.Dual-Head Ceramic Piston Pump:


3.High-precision ceramic components for accurate dosing


4.Two independent filling heads for increased throughput


5.Corrosion-resistant for various liquid types


6.Small Volume Capability: Ideal for filling small tubes (typically 1-50ml range)


7.Desktop Design: Compact footprint for lab or small production environments


8.Touchscreen Interface: User-friendly programming and operation


9.Adjustable Parameters: Fill volume, speed, and positioning fully customizable


Technical parameters of Desktop Automatic XY Axis Tube Filling Machine:

Target Products Test tube/ampule/water needle/E-liquid bottle
Manufacturing speed 130-140 PCS/min
Power AC 220V 50-60Hz / 680w
Air range -


Product display of Desktop Automatic XY Axis Tube Filling Machine:

Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid

1.Automatic dual-channel bottle loading, multi-head filling.


2.Suitable for a variety of standing instability products.


3.The machine is made of stainless steel 304.


4.The size of the machine can be customized according to the customer’s need.


Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid

This equipment adopts XYZ three-axis linkage method, using Japanese sensor, Taiwan rail, which makes the positioning precise.


Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid

The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.


Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume LiquidDesktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume LiquidDesktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume LiquidDesktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid
