Specifications
Brand Name :
XQ
Model Number :
XQHB Series
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD 500-2000 Per Set
Payment Terms :
T/T
Supply Ability :
100 Sets per month
Delivery Time :
10 days
Packaging Details :
Wooden Packing
Application :
MEDICAL, Chemical and Comestic
Filling SIZE :
1-10ml to 5-50ml
Material :
High purity ceramic
Use for :
Vertical or traditional Filling machine pump upgrading
Adjustment :
Manual adjusting
Driven mode :
air and servo motor
Dimension :
customizing
Noise :
≤65dB
Power :
0.4KW
Description

Multiple Heads High Viscosity Cream Paste Liquid Filling Pump System With Higp Precision And Speed For Bag Packing Machine Using

HBD-RN Series Multi-Column Ceramic Pump Integration adopts precision ceramic plunger design, suitable for medium and high viscosity liquids, homogeneous creams (1000-100,000CPS) and quantitative perfusion of materials containing certain particles. The pump uses a servo screw to control the filling volume. It only needs to be set on the control screen without manual intervention. It has high measurement accuracy and repeat consistency, and the accuracy is better than ±0.8%. The metal part in contact with the material is made of 316L stainless steel and ceramic, which has better corrosion resistance.

Industry application of High Viscosity Cream Paste Liquid Filling Pump System
It can be used for supporting and transforming the filling part of the packaging machine. It is suitable for cream, honey, electrolyte, medicinal liquid, biochemical reagent, chemical liquid, essential oil, essence, lotion, perfume, nail polish and other medium and high viscosity homogeneous liquid materials. It can be used with multi-station bag packing machines, multi-row packaging machines, blister machines and other equipment.


Parameter of High Viscosity Cream Paste Liquid Filling Pump System

Model

Plunger diameter(mm)

Stroke (mm)

 Volume

Accuracy

 Speed
ml CPM
HBD-10R3 20 50 1-10 ±0.5-1% 30-45
HBD-30R3 30 3-30
HBD-50R3 38 5-50

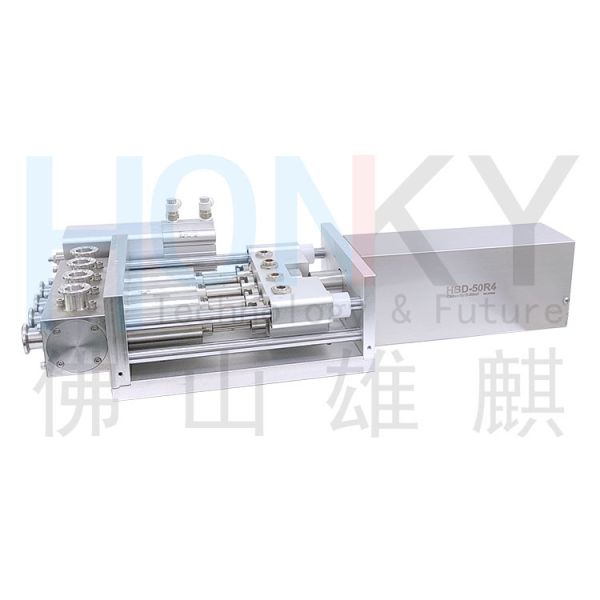

Product display of Precision 100ml High Viscosity Cream Paste Pneumatic Ceramic Filling Pump

Multiple Heads Ceramic Filling Pump with 0.4KW Power and 1-10ml to 5-50ml Filling Size for High Viscosity Liquids


Q & A

Q: Do you offer OEM services, I am a distributor from overseas?

A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.


Q: How about the after-sales service?

A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.


Q: What are your Installation Services?

A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.


Q: What info will be needed to confirm machine models?

A: 1.The material status.

2. Filling range.

3. Manufacturing speed.

4. Requirements for the production process.


About HonkyTech

Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
