10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design
10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design
10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design
10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design
Specifications
Brand Name :
XQ
Model Number :
XQIVD-96
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 20000-25000/ SET
Payment Terms :
T/T
Supply Ability :
20 SETS per Month
Delivery Time :
20 Days
Packaging Details :
Wooden packing(70*70*70 cm)
Filling Efficiency :
10 Plate/min
Pump Choosing :
XQX2-06 CERAMIC PUMP with 8 sets
Filling Accuracy :
±0.8%
Machine Size :
1200*700*500mm
Driven mode :
no need air
Condition :
New
Description

996 Deep Well Plate Diagnostic Reagent Liquid Filling Machine Line type filling with ceramic pump6 Deep Well Plate Diagnostic Reagent Liquid Filling Machine Line type filling with ceramic pump

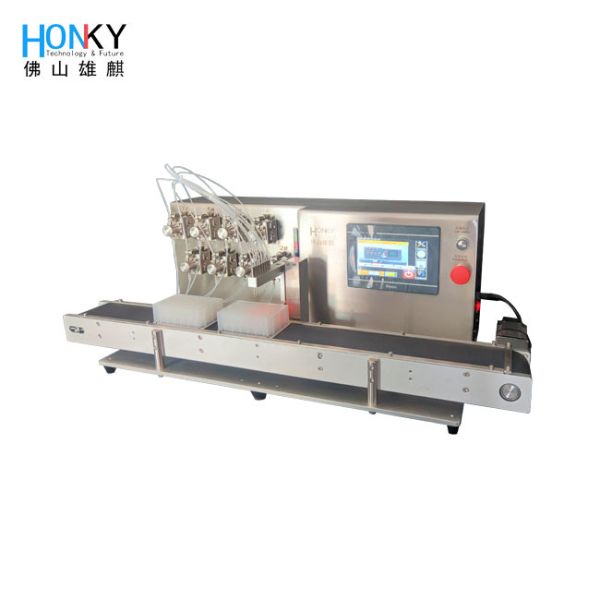

XQIVD-96 has a desktop filling design, which is specially designed to fill 96 deep well plates. The appearance uses desktop design, whose size is small and the material is 304 stainless steel which is easy to clean and good at corrosive resistance. The filling pumps use the XQX2 high-precision ceramic pump to ensure filling accuracy(Within 0.8%). The filling speed is up to 96 cells*10 PCS per minute The machine adopts the bottle mold fast loading method, different bottle types can be changed quickly and conveniently.

96 Deep Well Plate Diagnostic Reagent Liquid Filling Machine Line type filling with ceramic pump

Technical data

Model XQIVD-96
Pump type Ceramic pump
Filling accuracy ±0.5%
Filling range 0.01-0.5ml
Manufacturing speed 10-12 PCS / minute
Power AC 220V 50-60Hz 550W
Air pressure 0.4-0.6Mpa
Machine size 1200*500*500mm (Main machine roughly)

Full automatic desktop 96 deep well plate high precision ceramic pump filling machine for bio reagent

Product Display

10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design

This equipment has been tested to meet the requirements of GMP certification. A self-development system is applied to make the machine easy to operate.

10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design 10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design

the machine adopts a bottle mold fast loading method, different bottle types can be switched quickly and conveniently. Fully desktop design to make operation easy.

Packing Size

Dimension G.W.
130*60*60 CM 120 kg

Line type 96 Deep Well Plate Desktop Diagnostic Reagent Filling Machine 10 Plates / Min

Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.

Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.

Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.

Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
