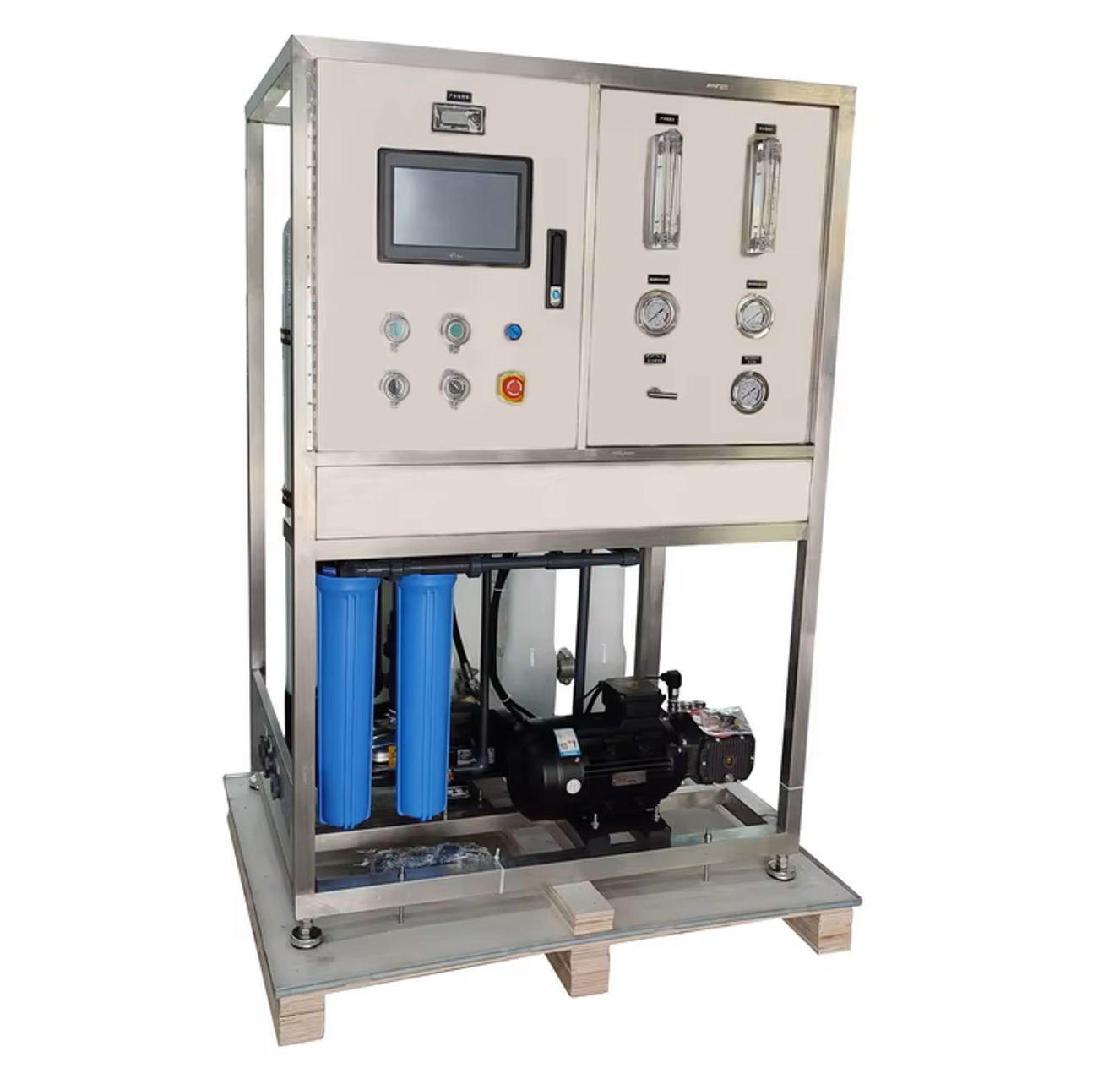

Brackish Water Desalination Machine 5.5KW Water Treatment Desalination System
Brackish Water Desalination Machine 5.5KW Water Treatment Desalination System
Brackish Water Desalination Machine 5.5KW Water Treatment Desalination System
Brackish Water Desalination Machine 5.5KW Water Treatment Desalination System
Brackish Water Desalination Machine 5.5KW Water Treatment Desalination System
Brackish Water Desalination Machine 5.5KW Water Treatment Desalination System
Specifications
Brand Name :
nettronics
Model Number :
JCSWRO15T/D
Certification :
EC
Place of Origin :
sino
MOQ :
1
Price :
liaise
Payment Terms :
T/T
Supply Ability :
liaise
Delivery Time :
7-10working days
Packaging Details :
export wooden box
Treatment Process :
Physical and Chemical Treatment
Frequency :
50/60Hz
Disinfection Method :
Chlorination
Voltage :
380V/440V
Power Source :
Electric
Treatment Level :
Secondary Treatment
Material :
Stainless Steel
Capacity :
100 gallons per hour
Application :
industrial process water treatment
Installation :
Under Sink
Dimensions :
1280 x 600 x 1700 mm
Purification Technology :
Reverse Osmosis
Weight :
50 lbs
Operation Mode :
Automatic
Power Supply :
380V/50Hz
Water Source :
Sea water
Purification Capacity :
625L/h
Display :
Touch Screen
Membrane Material :
Polyamide
Pretreatment System :
Multi-media filter, Activated Carbon filter
Operating Pressure :
800-1200 psi
Membrane Type :
Reverse Osmosis
Membrane :
Reverse Osmosis(RO)
Included Components :
Pre-filter, Post-filter, Faucet
Type :
Reverse Osmosis
Color :
White/Blue/Stainless steel
Function :
Drinking water, industrial water, etc.
Port :
Ningbo
Filtration Level :
Deionization
Purification Method :
Reverse Osmosis
Product Type :
Water Purification System
Post-Filtration :
Carbon filter
Description
JC-15T Brackish Water Desalination System
Advanced 15T/D desalination system engineered for efficient brackish water treatment with innovative Chinese manufacturing technology.
Key Specifications
Water Production: 15T/D (20°C)
Inlet Water Salinity: ≤40,000 mg/L
Outlet Water Quality: Complies with GB5749-06 Class I standards
System Desalination Rate: ≥99.3%
Power Consumption: 5.5KW
Equipment Configuration
Component Specifications Quantity Origin/Material
Raw Water Pump 1500W 1 set Guangdong stainless steel
Sand Filter 300x1500 1 set Guangdong Glass-Fibre Reinforced Plastic
Fine Filter System 20" housing with 5μ & 3μ filter elements 2 units Dongguan Fibre
High-Pressure Pump P316, 30 L/min, 140 bar 1 set Imported
Reverse Osmosis System 40" membranes with 4" x 3 section housing 3 units Huitong, Glass fibre reinforced plastic
Control & Monitoring Pressure gauges, flow meters, conductivity meter Multiple Zhejiang, Chinese marine grade
Technical Parameters
  • Inlet Water Temperature: 5~36°C
  • Inlet Water Flow Rate: 2 m³/h
  • Inlet Water pH Range: 3.0~10.0
  • Inlet Water Pressure: -0.1~1 kg/cm²
  • Effluent Salinity: ≤700 mg/L
  • Effluent pH: 6.5~8.5
  • System Recovery Rate: ≈20-25% (temperature dependent)
  • Power Supply: AC 220-440V, 60Hz/3-phase
  • Dimensions: 1,300 × 900 × 1,650 mm
  • Weight: ≈580 kg (net weight)
Brackish Water Desalination Machine 5.5KW Water Treatment Desalination System
Important Notice: Due to the specialized nature of this equipment, please contact our customer service team before purchasing. Our experts will assess your specific water consumption and quality requirements to recommend the most suitable system. For detailed specifications, technical parameters, or additional product images, please reach out to our customer service department for personalized assistance.
