Fully-Automatic Top Speed LCD Program Control PCB Separation With High Standard Material
Fully-Automatic Top Speed LCD Program Control PCB Separation With High Standard Material
Fully-Automatic Top Speed LCD Program Control PCB Separation With High Standard Material
Fully-Automatic Top Speed LCD Program Control PCB Separation With High Standard Material
Specifications
Place of Origin :
China
Brand Name :
Chuangwei
Certification :
CE GlobalMarket
Model Number :
CWV-1A
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Plywooden Case will be the first consideration
Delivery Time :
1 Week
Payment Terms :
T/T
Supply Ability :
1000 Sets/Year
Approval :
CE ISO
Platform :
1.2m 2.4m steel
Usage :
PCB Cutting
Working Area :
330*220MM
Working Way :
Saw blade / milling cutter
Description


Top Speed LCD Program Control PCB separation With High Standard Material

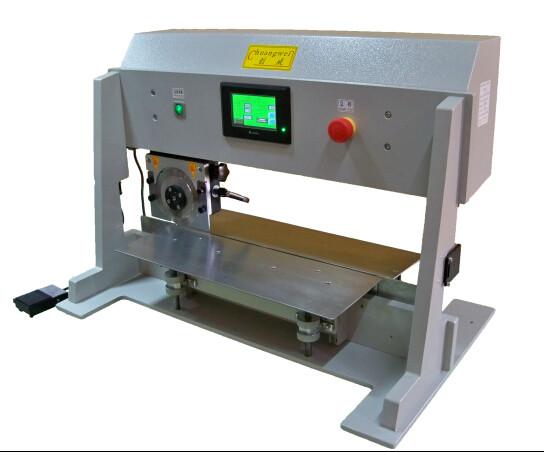

Chuangwei Machine Diagram:

Top speed pcb depaneler with high standard material
1.Operator foolproof
2.Infrared protection
3.Calibration Blade Set
4.LCD program Control

Specification:

Model

CWV-1A

PCB Cutting Length (mm)

460/600/1000/1500

Cutting Speed (mm/s)

100/200/300/500

Cutting Thickness (mm)

0.6~3.5

Power Supply

110/220 V

Size (mm)

770*510*450

Weight (Kg)

55

Blade working life for metal (Year)

0.5

Blade working life for PCB (Year)

1

Blade Hardness (HRC)

60~63

Blade Hardness (HB)

540~567

Guarantee (Year)

1

Delivery (Day)

7

Min. Order (Set)

1

Ability (Set)

1000

Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board), LED.

2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated

to high strength cutting, and excellent toughness, able to cut metal board !!!!!!

Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress

2. Safe, easy to operate

3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)

Feature:

1. Minimize the shearing stress to avoid micro-cracks of the solder joints.

2. Guiding device of the "V-CUT" of the PCB.

3. Ball-bearing slideways for easy setting of the PCB edge guides.

4. Ball-bearing slideways for easy setting of the height of the tabletop.

5. Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.

6. Cutters can be re-grinded

7.The shape of the cutter can be customer-made

Our Advantage :

1.CWVC-1 Pcb depanelizer original manufacturers, price concessions

2.Promise day technical support services

3.Limit the handling of complaints, half an hour back to customers

4.Depanel Experts, the provision of professional PCB sub-programme

5.Reliable machine maker, we get Experts--15, each one has over 6 years experience, equipment quality will be satisfying.
