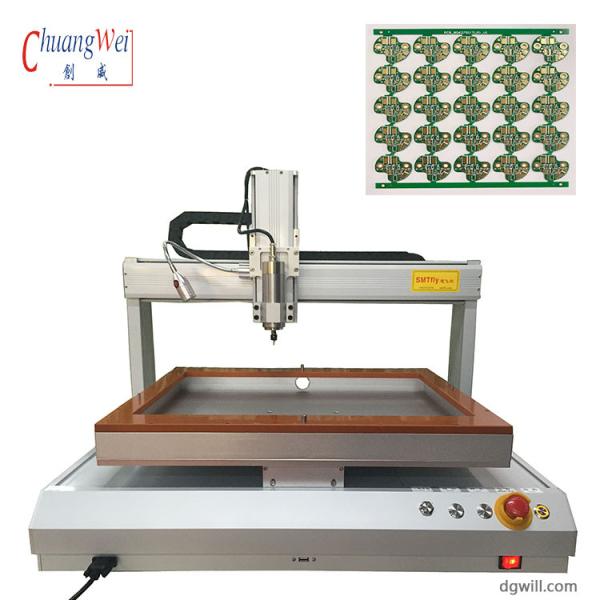

PCB Router Machine 150W 3.5mm Thick Cnc Milling
PCB Router Machine 150W 3.5mm Thick Cnc Milling
PCB Router Machine 150W 3.5mm Thick Cnc Milling
PCB Router Machine 150W 3.5mm Thick Cnc Milling
PCB Router Machine 150W 3.5mm Thick Cnc Milling
PCB Router Machine 150W 3.5mm Thick Cnc Milling
PCB Router Machine 150W 3.5mm Thick Cnc Milling
PCB Router Machine 150W 3.5mm Thick Cnc Milling
Specifications
Brand Name :
SMTfly
Model Number :
SMTfly-F01-S
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
7 days
Packaging Details :
plywood case
Name :
Precision Depaneling Router Pcb Manufacturing Machine
Weight :
600kgs
PCB thickness :
0.3-3.5mm
Spindle :
KAVO
Cutting precision :
0.1mm
Positioning accuracy :
0.01
Warranty :
1 year
Service :
Oversea training
Description :
Printed Circuit Board Router
Description

PCB Router Machine 150W 3.5mm Thick Cnc Machine For Pcba Making / Cnc Router Pcb Milling

Features:

1. Broken knife detection, automatic knife changing function, ensure the continuous working time of the machine, reduce the operation difficulty.

2. Marble working table, never deformed, ensure the level of equipment, equipment running more stable.
3. Through the CE international certification, in line with the ergonomic operation;
4. Platform servo drive into, faster speed, higher precision;
5. Visual intelligence positioning, automatic correction of deviation;
6. Software is easy to learn, simple training can be skillfully operated;
7. Safety door sensor, open automatic alarm stop;
8. Taiwan spindle, high speed, low noise;
9. Machine running at high speed, stable and not shaking
Specification:
Specification
Depaneling accuracy: ±0.05 X,Y1,Y2,Z Driving Method :Servo Denso
Maximum size of depaneling: 320mm*350mm(Dual-platform merger 640*700) Control Method: Adoption of Industrial Motion Controller + Industrial Computer Man-machine
Maximum cutting speed: 100 mm/s Operation and Data Storage Method: Industrial Computer
Cutting Repeatability: 0.01mm Mainframe Size: 1200*1250*1680 (L X H X D)mm
Cutting Form: Straight, round, arc, U-shape, L-shape, etc. Machine Weight: 650Kg
Image : intelligent industry Working Air Pressure: 5KG/CM²
Operation Interface: Chinese Interface Fiducial Mark: CCD Auto Alignment Function
Mainframe Voltage: :AC 220V 50/60Hz Program Preview: Path Simulation Function
Dust Collector Size: 650 x 400 x 1250 (L X H X D)mm Program Preview: CCD Path Simulation Function
Maximum Rotation: Taiwan Spindle Max 45000rpm Dust Collector : 4HP
Dust Collector Power Supply : AC 380V 50/60Hz Dust Collector Weight :122kg

Router Detailed Photoes:

PCB Router Machine 150W 3.5mm Thick Cnc Milling

Router Depaneling fixture Photoes:

PCB Router Machine 150W 3.5mm Thick Cnc Milling

24 Hours Service ,Welcome to Inquiry !!
