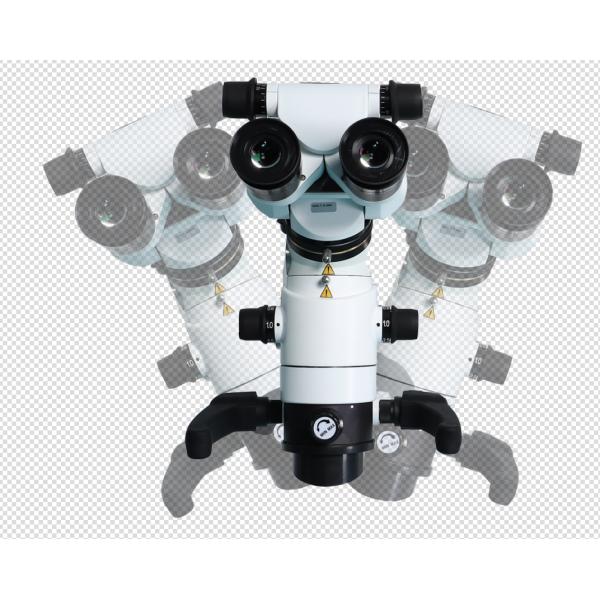

Electric LED Illumination Dental Endodontic Microscope
Electric LED Illumination Dental Endodontic Microscope
Electric LED Illumination Dental Endodontic Microscope
Electric LED Illumination Dental Endodontic Microscope
Electric LED Illumination Dental Endodontic Microscope
Electric LED Illumination Dental Endodontic Microscope
Electric LED Illumination Dental Endodontic Microscope
Electric LED Illumination Dental Endodontic Microscope
Electric LED Illumination Dental Endodontic Microscope
Electric LED Illumination Dental Endodontic Microscope
Specifications
Brand Name :
Zhoek
Model Number :
DOM-500
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
USD2000-USD3700
Payment Terms :
Western Union, T/T, MoneyGram, L/C
Supply Ability :
1000pcs/month
Delivery Time :
5-10 work days
Packaging Details :
Carton
Material :
Acrylic, Metal, Plastic, Steel
Power Source :
Electric
Instrument classification :
Class II
Description

Endodontic microscope

Product description

Product Name
Oral Microscope
Brand
ZHOEK++
Model Number
DOM-700
Warranty
1 year
After-sale Service
Online Technical Support
Illumination
LED
Magnification
0.3X,0.5X,0.8X ,1.2X,2.0X,3.0X
Eyepiece
Wide Field WF12.5X/18B(10 X/18B)
Binocular Tube
0-200 degree
Usage
Oral Therapy Optical Equipment

Electric LED Illumination Dental Endodontic Microscope

Model
DOM700
Function
Dental
Electrical Data
Power socket
220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ
Power Consumption
40VA
Safety Class
class I
Microscope
Binoculars
0-200 binocular tube
Magnification
A manual 5-step changer, ratio0.3X,0.5X,0.8X ,1.2X,2.0X,3.0X ,
total magnification 2.9x,4.5x,7.2x,10.8x,18x,27.0( F 180mm)
Objectives
F=180mm-300mm
Objective Focusing
120mm
Eyepiece
12.5x/ 18B(10x/18B for optional)
Diopter Adjustment
+6D ~ -6D
Feild of veiw
6 steps: 67mm,44.5mm,27.8mm,18.5mm,11.1mm,7.4mm.
Illumination
Light
Source
LED cold light,illumination diameter of light spot Φ50mm with life time >100000 hours, brightness >50000 lux CRI>90
Banlance Arm
120° Banlance arm
Filter
build-in standard spot, green filter, yellow filter.
Power Supply
AC 110V/220V - 220W
Stands
Max Extension Range
1428mm
Base
640mm × 640mm
Rotation Angle
270 degree
Movable Floor Stand Frame
Including base, column, big cross arm(340mm),small cross arm(650mm) and so on. height:1800mm, The range of up-down≥350mm
Brake System
Fine adjustable mechanical brakes for all rotation axes
with detachable brake
System Weight
110kg
Stand Options
Ceiling mount,Wall mount,Floor stand,Floor plate
