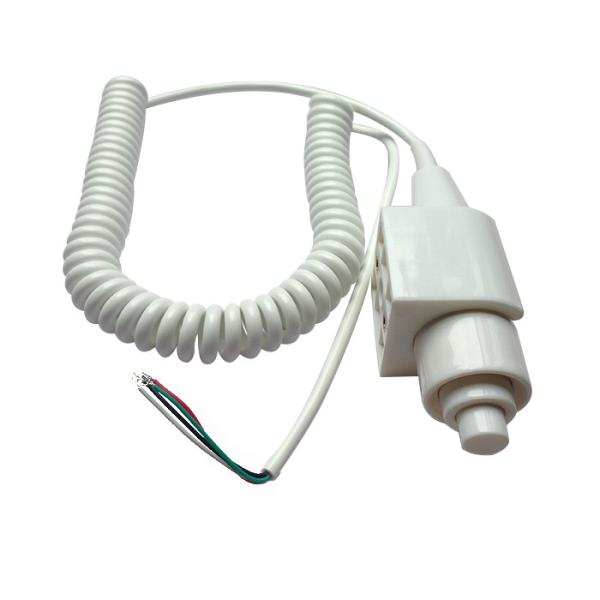

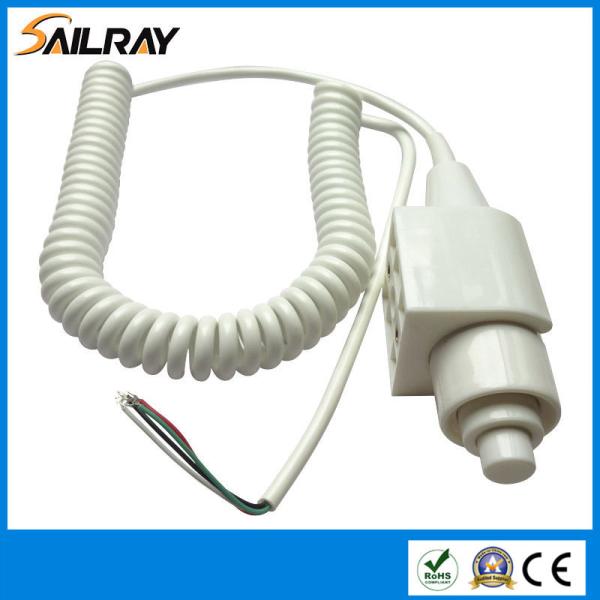

Two Step X-ray Push Button Switch with Omron Micro Button for Dental Machine

Quick Detail:

Model: HS-02

Type: Two Step

Construction and material: With Omron micro switch, PU coil cord cover and copper wires

Wires and coil cord: 3cores or 4cores, 2.2m or 5m

Mechanical life: 1.0 million times

Electrical life: 100 thousand times

Certification: CE, CQC, RoHS

Connector: can fixed to DB9 connector or Air plug

Competitive Advantage:

Better performance with Omron micro switch

Better elasticity of coil cord with PU cover and pure copper wire

Longer Mechanical life and Electrical life

CE, CQC, ROHS approval.

Description:

X-ray exposure Hand switch is the electric control parts, can be used for controlling the on-off of electrical signal, photographic equipment and medical diagnostic X-ray photography exposure. X-ray exposure Hand switch, used OMRON micro switch as component contacts, is a hand-held switch which has one stepping switches and with fixed trestle.

This type of x-ray exposure hand switch can be 2 cores or 3 cores. The coil cord length can be 2.2m or 5m after fully stretched. Its electrical life can reach to 100 thousand times while its mechanical life can reach to 1.0millioin times.

X-ray exposure Hand switch is comply with the national safety standards: GB15092.1-2003 "the first part of the medical electrical equipments: general requirements for safety" related provisions. Get CE, CQC, ROHSapproval.

Applications:

X-ray exposure Hand switch is the electric control parts, can be used for controlling the on-off of electrical signal, photographic equipment and medical diagnostic X-ray photography exposure

Performance Parameters( 3cores ) :

Comply with the national safety standards: GB15092.1-2003 "the first part of the medical electrical equipments: general requirements for safety" related provisions.

Type and Useful time:

Cores:.............................................................................3cores or 4cores,

Type: ..............................................................................Two step

Wire material:................................................................PU

Wire Sectional area.....................................................0.2mm2(24 gauge)

Useful time(Mechanical life): ....................................1.0 million times

Useful time(Electrical life):.........................................100 thousand times

Operation Method:

When pressing the button, it is connected while loosing it is cut.
