Limiting X Ray Collimator High Performance Motor Control For Hospital
Limiting X Ray Collimator High Performance Motor Control For Hospital
Specifications
Brand Name :
SAILRAY
Model Number :
SR303
Place of Origin :
CHINA
MOQ :
10
Payment Terms :
T/T, Western Union
Supply Ability :
100 per month
Delivery Time :
30 work days
Packaging Details :
Wooden Case
Control Method :
Manual
contrast ratio :
>4:1
Model No :
SR303
Input Power :
AC24V
Weight(Kg) :
7.5
Size :
270×210×200
Packaging :
Wooden Case
Price :
Negotiation
Description

150KV Medical Manual X-ray Collimator SR303 for limiting X-ray

Quick Detail:

Type: SR303

Maximum X-ray field coverage range:480mm×480mm (SID=100cm)
The average brightness of the light field:>160 lux
Max Voltage: 150KV

technical parameters:

Radiation Shielding 150KV
Maximum X-ray field coverage range 480mm×480mm (SID=100cm)
The average brightness of the light field >160 lux
Edge contrast ratio >4:1
Power supply requirement of projection lamp 24V AC/150W
Bright X-ray field duration for Once 30S
Distance from Focal Spot of X-ray tube tl he mount plane of collimator SFD (mm)(optional) 60
Filteration(Inherent) 75kV 1mmAl
Filteration(Additional) optional
Control method Manual
Drive motor --
Motor Control --
Position detection Potentiometer
Input power AC24V
(SID)Measuring tape Configuration
Center laser instructions optional
Dimension(mm)(W×L×H) 270×210×200
Weight(Kg) 7.5

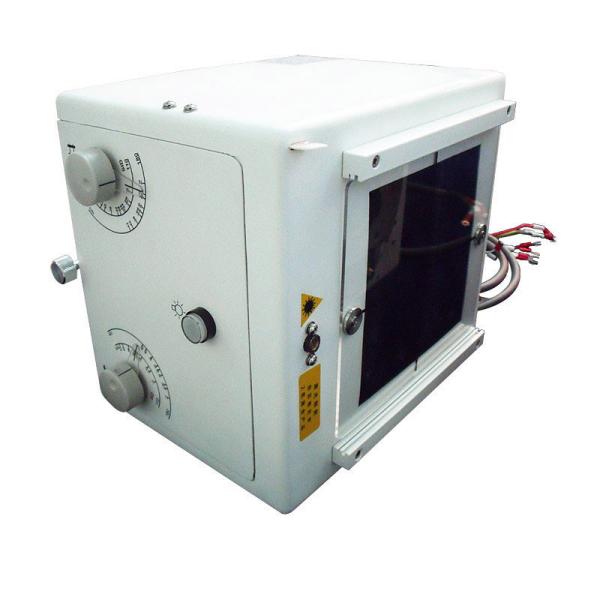

Detailed Images
