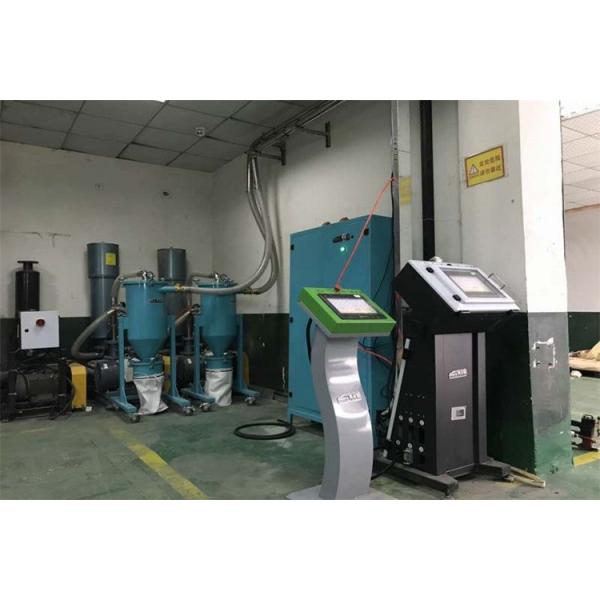

Conveying Centralized Feeding System Plastic Material For Extrusion Process

Central Feeding System, Central Conveying System, Plastic Loading System, Plastic Material Loading System, Plastic Central Feeding System

General Introduction

Utilizing the method of vacuum conveying, Orste Central Material Feeding/Conveying System (OMCS) transports plastic materials from storage silos to the central dehumidifying & drying system through centralized piping, and then convey the dried material to each molding machine. OMCS is suitable for the integrity of the material of huge capacity, eliminates waste and improves the cost effectiveness of the factory.

Features

Continuous auto-operation

Various dosing & mixing for different colors and materials

Effective instant recycling which can mix regrind and new material flexibly

Offer you the most flexibility to easily be expanded or modified equipment, make sure your production safer and more reliable and keep the best working environment.

The Central Feeding System mainly include the following parts, and it can be expanded to include the dehumdifying drying system, granulating recycling system to make the whole factory run automaticall.

OMCS Control Station

Ideal design of integrating the monitoring panel and the control panel.

Friendly interface and accurate control.

Operating and monitoring by a single personnel and can be linked with a PC.

Conveying time, material types, and pipe cleaning time of each station are adjusted by the control station.

Displaying panel shows you how stations, dryers and storage silos work, such as on/off, full or lack of material, and material types of each station.

Extensive interface allows easy expansions up to 40 stations for future demands.

Compact and durable.

Microprocessor touch-style control panel

Operating status:

Display the operating status of machines.

Set-up status:

Display the set up status, such as working stations, material types, material conveying time, and pipe cleaning time.

Abnormal:

Display abnormal machines and material type.

“OMCS” Control Unit

Ideal design of integrating the monitoring panel and control panel, User-friendly interface, Compact & Durable, Small space to make more productive use of factory floor space.

High-pressure Blower

Pressure air adjustable.

Maximum conveying distance can be 150 meters.

Suitable for conveying the material of large capacity.

Material Selector

Stainless steel made to avoid pollution of materials. Quick coupling devices for quick set-up or easy disconnected with pipes.

Dust-removing Combination: Vortex Cylone & Pulse Dust Collector

Collect dust from the conveying system efficiently.

Double protections for high-pressure blower in operation. Easy to maintain: only to change the filter on time and clean conveniently.

Dedicated and compact design.

Material Cut-off Valve: Stainless steel made, durable device design.

Air Cut-off Valve: Stainless steel made, reliable device design.

Compression Couples: Stainless steel made, connect pipes to construct the completely-closed central vacuum conveying system.

Parameters

Application Cases

The Central Feeding System is a large comprehensive system which combines dehumidifying drying, material mixing, material feeding, sprue parts granulating and recycling into 1 control system. It is an important and essential process to achieve the fully automatic running of the whole production in plastic material handling.

FAQ

Q1: What kind of company are you? Trading company or manufacturer?
A: We are a manufacturing company with more than 12 years design and manufacturing experience in Dongguan, Guangdong Province, China.

Q2: How long is the delivery time?
A: 7-30 days after order confirmed. Based on the actual requirement.

Q3: What's the MOQ?
A: 1 set per order.

Q4: What is your terms of payment?
A: For order amount ≤ 2000 USD, 100% in advance; For order amount ≥ 2000 USD, T/T 50% as order, balance 50% T/T before shipping. We will show you the pictures and videos of the machines for the order.

Q5: What are the trading terms?
A: EXW, FOB and CIF.

Q6: Can you do OEM?
A: Yes, OEM and ODM service are provided.

Q7: Do you test all your machines before packing and delivery?
A: Yes, we haved tested all our machines well before delivery.

Q8: How to provide the after-sales service?
A: 1st, our machines are manufactured in strict quality control system to make sure there is few faulties occur after installation, but if any faulty, we can send new spare parts for free in 12 months warranty time.
2nd, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.

3rd, we have over 30 3rd-party cooperation agents or service centers around the world to proivde in-time after-sales service for the customers nearby.

Q9: How can get the shipping cost?
A: We can calculate the shipping cost for you if you provide us your destination port.
