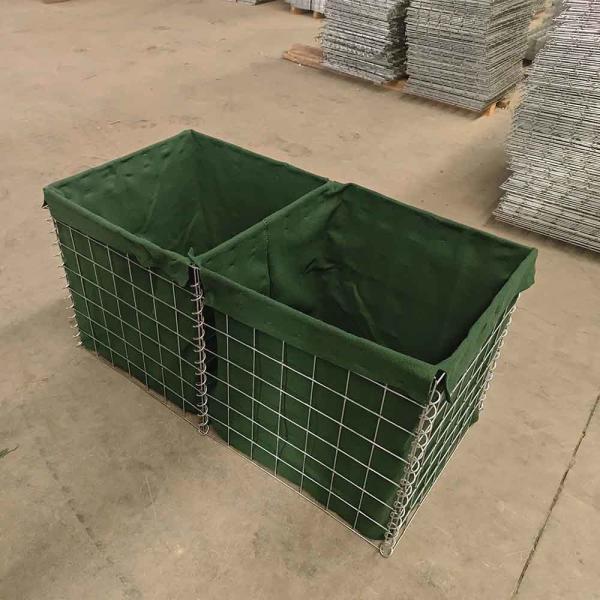

Galvanized Steel Welded Wire Mesh Defensive Barrier 75mmx75mm
Galvanized Steel Welded Wire Mesh Defensive Barrier 75mmx75mm
Specifications
Brand Name :
SHUXIN
Model Number :
M1
Certification :
CE SGS ISO COC
Place of Origin :
Hebei China
MOQ :
100
Price :
55-52USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500 units per week
Delivery Time :
15 work days
Packaging Details :
wooden pallet
Product Name :
Military Retaining Wall And Trench Defense Wall Supplier Of Defensive Barriers
Key Word :
supplier of defensive barriers
Mesh Diameter :
5.0mm, 4.0 mm
Hesco Feature :
Easily Assembled
Surface Treatment :
Galvanized
Mesh Hole :
3*3'(7.62*7.62cm), 75mmx75mm
Type :
Welded wire mesh Defensive Barrier
Specification :
CE, BV, SGS
Usage :
Defensive
Shape :
Square
Wire Diameter :
3.0-6.0mm
Material :
Steel
Mesh Hole: :
3''*3''
material :
hot dipped galvanized wire
Hole Shape :
square
advantage :
easy Assembled
color :
White, Sand color, Military Green
Diameter of Spring: :
4.00mm
Description

Military Retaining Wall And Trench Defense Wall Supplier Of Defensive Barriers



Introduction of Military Barriers :


The Defensive Barrier Wall, commonly known as the anti-explosion and flood protection wall, is fabricated from welded gabion nets and geotextile fabric sewn together. It can be filled with fine sand, soil, rocks, or other materials, serving as a replacement for traditional military bunker sandbags while being recyclable. Unlike conventional gabion nets (gabions), it accommodates both stones and finer sand particles.

The filling materials can be prepared onsite, making it particularly suitable for use in river downstream areas or sandy beaches lacking stone resources. With the assistance of advanced tools such as excavators and forklifts, installation efficiency is dozens or even hundreds of times higher than that of traditional sandbags. As military equipment, it can be employed for temporary bunkers, fortifications, and pre-war command posts, replacing traditional manually dug trenches and effectively reducing soldier and civilian casualties.


Defensive Barrier Wall specification:


Model Height Width Length Internal Cells
SX-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells


Defensive Mesh gabion box Application:


Perimeter Security and Defence Wall

Equipment Revetments

Personnel and Material Bunkers

Observation Points

Defensive Firing Positions

Guard Posts

Explosives and Contraband Search Areas

Highway Checkpoints

Border Crossing Checkpoints

Protecting Existing Structures

Flood control retaining wall

Coastal Erosion

Protection engineering of seaside area.


Defensive Barrier Wall advantage


1.Defensive Barrier Wall that has the ability to resist explosion shock waves and can limit the destructive effects of explosions within a certain range.


2.Compared with the reinforced concrete explosion-proof wall, it has the advantages of light weight, easy loading and unloading, recyclable and reusable.


3.The Defensive Barrier cage produced by our company has as many as 12 specifications, in various colors such as earthy gray, earthy yellow, grass green, etc., and can be flexibly combined to apply to different scenes or purposes.
