Galvanized Steel Army Defensive Barrier Wall For Flood Prevention
Galvanized Steel Army Defensive Barrier Wall For Flood Prevention
Specifications
Brand Name :
SHUXIN
Model Number :
M1
Certification :
CE SGS ISO COC
Place of Origin :
Hebei China
MOQ :
100
Price :
50-40USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500 units per week
Delivery Time :
15 work days
Packaging Details :
wooden pallet
Product Name :
Army Defensive Barrier Wall Flood Prevention Defense Wall Town Flood Prevention
Key Word :
Army Defensive Barrier Wall
Mesh Diameter :
5.0mm, 4.0 mm
Hesco Feature :
Easily Assembled
Surface Treatment :
Galvanized
Mesh Hole :
3*3'(7.62*7.62cm), 75mmx75mm
Type :
Welded wire mesh Defensive Barrier
Specification :
CE, BV, SGS
Usage :
Defensive
Shape :
Square
Wire Diameter :
3.0-6.0mm
Material :
Steel
Description
Army Defensive Barrier Wall Flood Prevention Defense Wall
Product Specifications
Attribute Value
Product Name Army Defensive Barrier Wall Flood Prevention Defense Wall
Mesh Diameter 5.0mm, 4.0 mm
Hesco Feature Easily Assembled
Surface Treatment Galvanized
Mesh Hole 3*3'(7.62*7.62cm), 75mmx75mm
Type Welded wire mesh Defensive Barrier
Specification CE, BV, SGS
Usage Defensive
Shape Square
Wire Diameter 3.0-6.0mm
Material Steel
Military Barrier System Overview

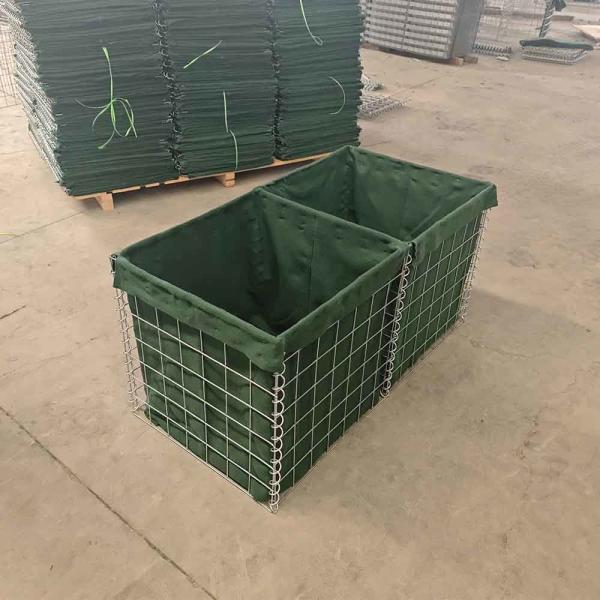

The Obstructive Barrier System, also known as explosion-proof and flood-control wall, features interlocking metal mesh cages with geotechnical fabric envelopes. Fillable with sand, stabilized earth, or crushed stone, it serves as an eco-friendly alternative to traditional sandbag fortifications while allowing material reuse. Its dual-chamber design enables mixed-loading of both solid stones and granular media.
Ideal for stone-scarce environments like river deltas or beachfronts, it supports rapid deployment with automated loaders and cranes, achieving 50-100x faster installation than manual sandbagging. As military hardware, it transforms into rapid-deploy bunkers, defensive strongholds, and tactical command centers, reducing personnel casualties compared to dug trenches. The recyclable design ensures versatile protection across dynamic operational theaters.
Defensive Barrier Wall Specifications
Model Height Width Length Internal Cells
SX-1 54"(1.37m) 42"(1.06m) 32'9"(10m) 5+4=9 cells
SX-2 24"(0.61m) 24"(0.61m) 4'(1.22m) 2 cells
SX-3 39"(1.0m) 39"(1.0m) 32'9"(10m) 5+5=10 cells
SX-4 39"(1.0m) 60"(1.52m) 32'9"(10m) 5+5=10 cells
SX-5 24"(0.61m) 24"(0.61m) 10'(3.05m) 5 cells
SX-6 66"(1.68m) 24"(0.61m) 10'(3.05m) 5 cells
SX-7 87"(2.21m) 84"(2.13m) 91'(27.74m) 5+4+4=13 cells
SX-8 54"(1.37m) 48"(1.22m) 32'9"(10m) 5+4=9 cells
SX-9 39"(1.0m) 30"(0.76m) 30'(9.14m) 6+6=12 cells
SX-10 87"(2.21m) 60"(1.52m) 100'(30.5m) 5+5+5+5=20 cells
SX-11 48"(1.22m) 12"(0.30m) 4'(1.22m) 2 cells
SX-12 84"(2.13m) 42"(1.06m) 108'(33m) 5+5+5+5+5+5=30 cells
SX-19 108"(2.74m) 42"(1.06m) 10'5"(3.18m) 6 cells
Applications
  • Perimeter Security and Defence Wall
  • Equipment Revetments
  • Personnel and Material Bunkers
  • Observation Points
  • Defensive Firing Positions
  • Guard Posts
  • Explosives and Contraband Search Areas
  • Highway Checkpoints
  • Border Crossing Checkpoints
  • Protecting Existing Structures
  • Flood control retaining wall
  • Coastal Erosion Protection
  • Protection engineering of seaside area
Key Advantages
  • Resists explosion shock waves and limits destructive effects within a defined range
  • Lighter weight than reinforced concrete explosion-proof walls with easy loading/unloading
  • Recyclable and reusable design for sustainable operations
  • Available in 12 specifications with color options including earthy gray, earthy yellow, and grass green
  • Flexible combination options for diverse applications and environments
