Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
Specifications
Brand Name :
KN
Model Number :
KN-D02
Certification :
ISO CE
Place of Origin :
Hengshui,China
MOQ :
10 pcs
Price :
USD 6.99-8.99/ pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 pcs per week
Delivery Time :
7-15 days
Packaging Details :
Plastic bags+wooden pallet
Product name :
Defensive Barrier
Surface :
Hot Dip Galvanized 200g/m2
Meterial :
Q195, Carbon steel wire
Keyword :
defensive barrier
Usage :
Retaining wall
Advantage :
20 Years Experience
Surface treatment :
Hot dipped galvanized, or Galfan coated
Geotextile Color :
Beige, Green.white
Geotextile weight :
200g-400g
Wire diameter :
3.0-6.0mm
Description

China Factory Price Good Selling Bastion Barrier Wall Defensive Barrier

Product description

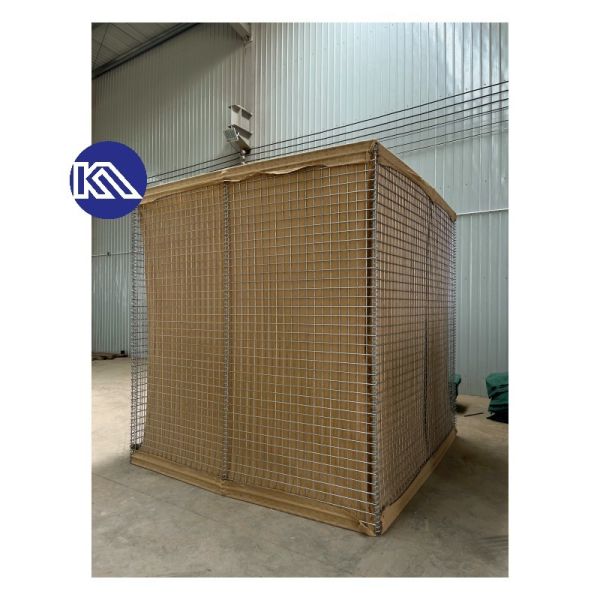

Defensivebastion uses the perfect combination of welded gabion wire and Geotextile, used as a temporary to semi-permanent levee or blast wall against explosions or small-arms.

Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For ProtectionSurface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection

Specifications

Technical Specification for Barrier Panel
Steel wire
0.1% carbon max steel
Wire thickness
3.5mm-5.0mm
Wire tensile
500-800Mpa
Welding tensile
50-100% of wire tensile strength
Mesh size
76.2*76.2mm,100*100mm
Surface treatment
Zinc coating or Zinc-AI coating 40-600g/sqm
Technical Specification for Geotextile Fabric
Color
Beige sand,Olive green,Grey
Mass(g/sqm)
250,300,350
Tensile strength
16KN
Tear strength
0.42KN
CBR puncture
3.0KN
UV strength retention ASTM D4355
50% at 500 hours(5years use life in common environment)
70% at 500 hours(10 years use life in common environment)

Different sizes for your choice.

Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection

Product Package

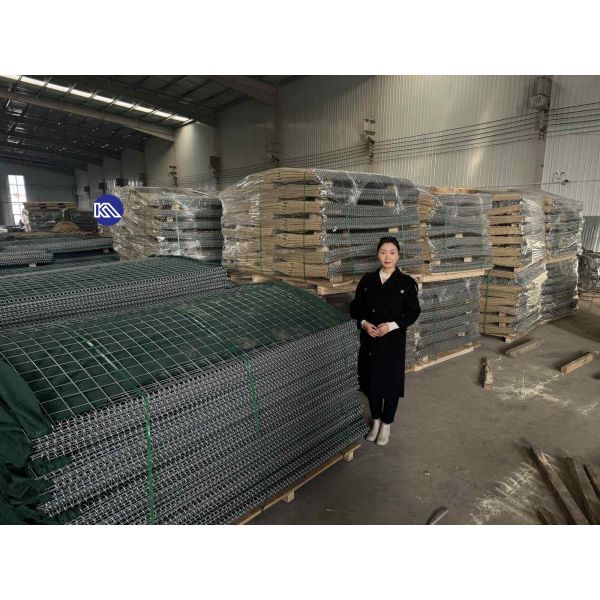

Defensive barrier packing on pallet then wrapped with plastic film outside .
Customers' request are also available!

Surface Hot Dip Galvanized 200g/m2 Bastion Barrier Wall Defensive Barrier For Protection
