Good Quality Woven Iron Wire 2*1*1 Gabion Mesh Basket Retaining Wall With Stone Filled
Good Quality Woven Iron Wire 2*1*1 Gabion Mesh Basket Retaining Wall With Stone Filled
Good Quality Woven Iron Wire 2*1*1 Gabion Mesh Basket Retaining Wall With Stone Filled
Good Quality Woven Iron Wire 2*1*1 Gabion Mesh Basket Retaining Wall With Stone Filled
Good Quality Woven Iron Wire 2*1*1 Gabion Mesh Basket Retaining Wall With Stone Filled
Good Quality Woven Iron Wire 2*1*1 Gabion Mesh Basket Retaining Wall With Stone Filled
Specifications
Model Number :
KN-Gabion Basket
Gabion Size :
1*1*1m, 2*1*1m, 3*1*1m, 2*1*0.5m
Certification :
CE ISO SGS COC PVOC
MOQ :
1000square meter
Delivery Time :
15 work days
Surface Treatment :
Hot Galvanized / PVC Coated
Price :
0.9-1.5 USD
Material :
Galvanized Steel Wire
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Key Words :
Gabion Basket
Aperture :
60*80;80*100;100*120;...
Edge Wire Diameter :
3.0-4.0mm
Supply Ability :
5000 square meter per day
Product Name :
Heavy Duty Hexagonal Wire Mesh Gabion Baskets – Custom Sizes for Erosion Control Projects
Brand Name :
KN
Mesh Shape :
Hexagonal Hole
Packaging Details :
pallet
Place of Origin :
Hebei China
Description

Good Quality Woven Iron Wire 2*1*1 Gabion Mesh Basket Retaining Wall With Stone Filled

Heavy-duty hexagonal wire mesh gabion baskets are specifically designed for high-strength soil conservation and ecological protection projects. Manufactured from high-quality low-carbon steel wire or PVC-coated wire through mechanical double-twist weaving, they offer exceptional structural stability and tensile strength. Once filled with rock, these gabions form a flexible, permeable, and monolithic protective structure, making them an ideal material for resisting water erosion, stabilizing foundations, and promoting ecological restoration.

Product Specifications

We offer standardized and fully customized options to meet the specific load-bearing and anti-corrosion requirements of any project:

Specification Details
Material Hot-dipped galvanized wire / Galfan (Zinc-Alloy) wire / PVC-coated wire
Mesh Wire Diameter 2.0mm - 4.0mm
Selvedge (Edge) Wire Diameter 2.5mm - 5.0mm (Typically 0.5-1.0mm thicker than mesh wire for frame strength)
Common Mesh Sizes 60×80mm, 80×100mm, 100×120mm, 120×150mm
Common Basket Sizes 2×1×1m, 3×1×1m, 4×1×0.5m (Custom sizes fully supported)
Tensile Strength ≥ 380 N/mm
Weaving type Feature Material

Mesh size

Wire Gauge

 Processing Service
Durable Three Normal Twist Corrosion Resistance Galvanized Iron Wire

80x100 cm

100x120cm

 2.7mm-3.5mm Bending Cutting

Product Advantages

(1)Economy. Just put the stone into the cage and seal it.

(2) The construction is simple and does not need special technology.

(3) Strong ability to resist natural damage, corrosion and adverse weather effects.

(4) can withstand large-scale deformation without collapsing.

(5)Silt between the cage stones is beneficial to plant production and can be fused with the surrounding natural environment.

(6) It has good permeability and can prevent damage caused by hydrostatic force. It is conducive to the stability of mountain slopes and beaches.

(7)Save transportation costs. It can be folded up for transportation and assembled on the construction site.

(8) Good flexibility: no structural joints, and the overall structure has ductility.

(9) Corrosion resistance: Galvanized materials are not afraid of seawater.

Product Applications

  • Erosion Control: Riverbank protection, coastal shoreline defense, and soil loss prevention.

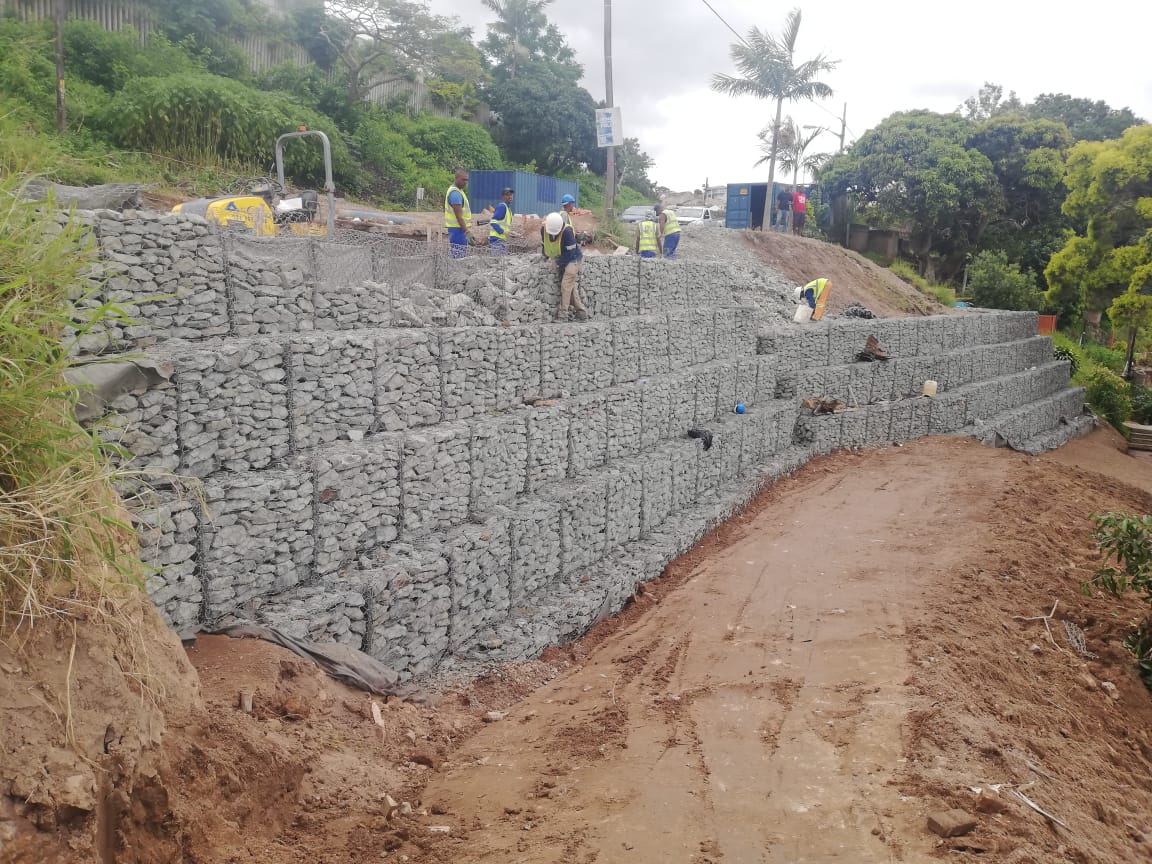

  • Retaining Wall Systems: Highway and railway slope stabilization, landslide prevention, and gravity retaining walls.

  • Hydraulic Engineering: Reservoir and river diversion dams, spillway protection, and bridge pier scour protection.

  • Landscaping: Modern architectural landscape walls, park ecological partitions, and agricultural terracing.
