6*8cm Mesh Hole 2.2mm Wire Diameter Galvanized Q195 Steel Wire Gabion Basket Gabion Box
6*8cm Mesh Hole 2.2mm Wire Diameter Galvanized Q195 Steel Wire Gabion Basket Gabion Box
6*8cm Mesh Hole 2.2mm Wire Diameter Galvanized Q195 Steel Wire Gabion Basket Gabion Box
6*8cm Mesh Hole 2.2mm Wire Diameter Galvanized Q195 Steel Wire Gabion Basket Gabion Box
Specifications
Model Number :
KN-05
Mesh hole :
8*10cm,6*8cm,10*12cm...
MOQ :
10 pcs
Delivery Time :
7-15 days
Size :
1*1*1m,2*1*1m,3*1*1m... customized
Selvding Wire :
3-4mm
Price :
USD2.98-6.88
Delivery time :
7-12 days
Certification :
ISO CE
Wire diameter :
2.2mm,2.7mm,3.2mm... customize
Payment Terms :
L/C,T/T
Sample :
Free
Supply Ability :
300000 ㎡/month
Key word :
Stone cage for river bank protect
Brand Name :
KN
Product name :
Gabion basket
Packaging Details :
Customized
Lacing Wire :
2.0-2.2mm
Place of Origin :
Hebei.China
Material :
Q195 steel wire mesh galvanized
Description
Factory Competitive Price 6*8cm Weave Gabion Boxes Galvanized Gabion Basket 2.2mm Gabion

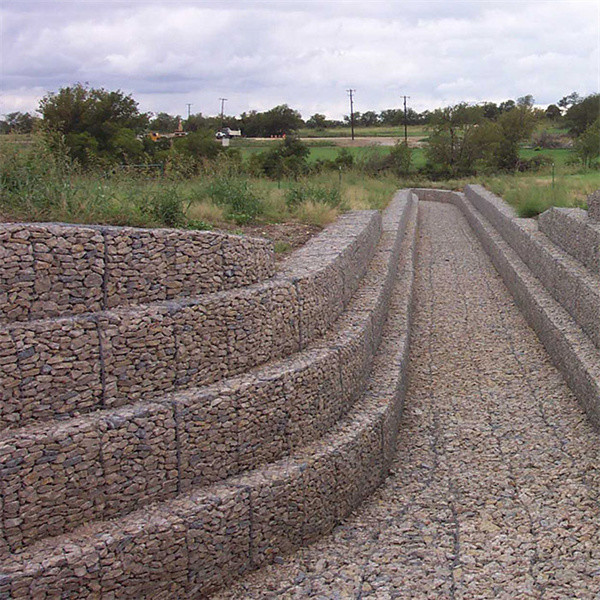

Gabion Mesh, also known as gabion net, gabion cage, hexagonal gabion, woven gabion, hexagonal wire mesh, or ecological wire mesh, is assembled from various mesh specifications according to ASTM A975-97 standards. The gabion mesh is constructed from low-carbon steel wire with high corrosion resistance, strength, and ductility, or PVC-coated steel wire. When filled with stone at the construction site, it forms a flexible, permeable, and integrated ecological protection engineering support structure.

6*8cm Mesh Hole 2.2mm Wire Diameter Galvanized Q195 Steel Wire Gabion Basket Gabion Box
Hexagonal Gabion Mesh Specifications
Material Wire Diameter (mm) Selvage Wire (mm) Lacing Wire (mm) Mesh Hole (mm) Gabion Size (m)

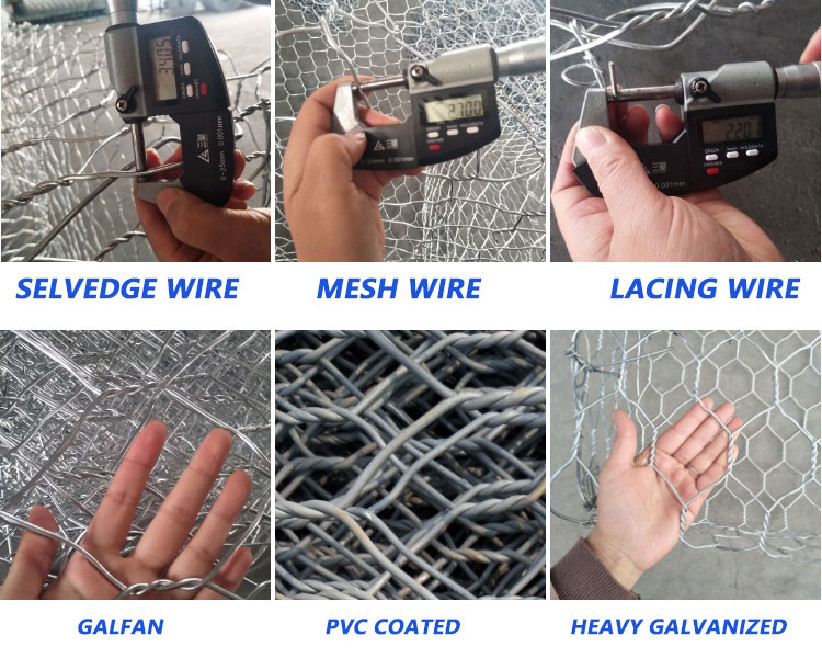

1. Galvanizing
2. Hot dip galvanizing
3. Galfan (zinc aluminum alloy)
zinc 5% aluminum mixed rare earth alloy steel wire
zinc 10% aluminum mixed rare earth alloy steel wire
4. PVC coated		 2.0mm, 2.2mm, 2.4mm, 2.7mm, 3.0mm, 3.5mm, 4.0mm 3-4mm 2.0-2.2mm 60*80mm, 80*100mm, 100*120mm, 120*150mm, customized 2*1*0.5m, 2*1*1m, 3*1*1m, 4*1*2m, 4*2*0.3m, 6*2*0.3m, customized
Gabion Mattress Specifications
Material Wire Diameter (mm) Selvage Wire (mm) Lacing Wire (mm) Mesh Hole (mm) Gabion Size (m)
1. Galvanizing
2. Hot dip galvanizing
3. Galfan (zinc aluminum alloy)
zinc 5% aluminum mixed rare earth alloy steel wire
zinc 10% aluminum mixed rare earth alloy steel wire
4. PVC coated		 2.0mm, 2.2mm, 2.4mm, 2.7mm, 3.0mm, 3.5mm, 4.0mm 3-4mm 2.0-2.2mm 60*80mm, 80*100mm, 100*120mm, 120*150mm, customized 3*2*0.3m, 4*2*0.3m, 5*2*0.3m, 6*2*0.3m, customized

Note: All sizes and materials of the welded gabion can be customized according to your requirements.

6*8cm Mesh Hole 2.2mm Wire Diameter Galvanized Q195 Steel Wire Gabion Basket Gabion Box
Gabion Advantages
  • Hexagonal Wire Design: Double twist woven structure provides superior strength and durability
  • Anti-Rust Material: Heavy galvanized wire, galfan (Al-Zinc wire), and PVC coating ensure long-lasting protection against rust and corrosion
  • High-Tensile Strength: Maintains structural integrity for reliable soil protection with tensile strength of 350-550 MPa
  • Permeable Design: Prevents waterlogging and effectively stabilizes soil in slope works
  • Customizable Sizes: Available in various dimensions to fit specific project requirements
  • Flexible Structure: Adapts to terrain seamlessly and enables easy on-site assembly
  • Quality Assurance: Meets EU, GB, ISO9001, and ASTM standards for reliability
6*8cm Mesh Hole 2.2mm Wire Diameter Galvanized Q195 Steel Wire Gabion Basket Gabion Box 6*8cm Mesh Hole 2.2mm Wire Diameter Galvanized Q195 Steel Wire Gabion Basket Gabion Box
