Stone Filled Flood Gabion Box Barrier Anti Rust with 2*1*1m
Stone Filled Flood Gabion Box Barrier Anti Rust with 2*1*1m
Stone Filled Flood Gabion Box Barrier Anti Rust with 2*1*1m
Stone Filled Flood Gabion Box Barrier Anti Rust with 2*1*1m
Specifications
Supply Ability :
10000 Square Meter
Material :
Hot Dipped Galvanized Wire
Brand Name :
KN
Color :
Green, Grey, and also customized
Model Number :
KN-GC211
Features :
Fast Producing, Easy Installation
MOQ :
100000 square meter
Delivery Time :
5-8 business days
Application :
Retaining Wall, Road Protection
Payment Terms :
T/T, Western Union, MoneyGram,L/C, Paypal
Mesh Aperture :
60*80mm, 80*100mm,100*120mm, 110*130mm
Surface Treatment :
Hot Dipped Galvanized After Weaving
Price :
Negotiated
Hole Shape :
Hexagonal Gabion Mesh Hole
Wire Guage :
2.0-4.0mm
Size :
2*1*1M, 1*1*1M, 6*2*0.3M
Certification :
ISO,CE,SGS,COC,PVOC,SONCAP
Place of Origin :
HB
Packing :
50-100 PCS Gabion Cage per Pallet
Packaging Details :
In Bundle
Description
Stone Filled Flood Gabion Box Barrier Anti Rust with 2*1*1m
Product Attributes
Attribute Value
Material Hot Dipped Galvanized Wire
Mesh Aperture 70*90mm, 80*100mm, 100*120mm, 110*130mm
Hole Shape Hexagonal Gabion Mesh Hole
Wire Gauge 2.2mm for Gabion Mattress, 2.7-3mm for gabion cage
Surface Treatment Hot Dipped Galvanized , 275g zinc coating
Application Retaining Wall, Road Protection, Flood Barrier, Retaining Wall
Features Fast Producing, Easy Installation
Color Green, Grey, and also customized
Size 2*1*1M, 1*1*1M, 6*2*0.3M, 3*2*0.3m, 3*3*0.5m, 3*2*1m
Packing 50-100 PCS Gabion Cage per Pallet
Product Description

275g Zinc Stone Filled Gabion Basket

Gabions are baskets made of double twisted Hexagonal wire mesh, as per ASTM A975-97.

Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures, such as retaining walls, channel linings, Base Bottom, Flood Barrier etc.

The steel wire used in the manufacture of the gabion box is 95% zinc + 5% Al Wire. A PVC coating is then applied to provide added protection for use in polluted environments where soils or water are acidic: in salt or fresh water, or wherever the risk of corrosion is present.

The PVC coating has a nominal thickness of 0.50 mm, Grey and Green Color are the most popular.

The gabion is divided into cells by means of diaphragms positioned at approximately 1m centers. In order to reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter.

Stone Filled Flood Gabion Box Barrier Anti Rust with 2*1*1m

Wire Specifications

All tests on wire must be performed prior to manufacturing the mesh.

  • Tensile strength: The wire used for the manufacture of gabions shall have a tensile strength between 372-470 according to ASTM A856. Wire tolerances are in accordance with ASTM A856.
  • Elongation: Elongation shall not be less than 12%, in accordance with ASTM A370-97. Test must be carried out on a sample at least 12 in. (30 cm) long.
  • Galfan coating: All wire shall comply with the requirements of ASTM A975-97, style 3 coating, Galfan and PVC coated steel wire.
  • Adhesion of Galfan: The adhesion of the Galfan coating to the wire shall be such that, when the wire is wrapped six turns around a mandrel having four times the diameter of the wire, it does not flake or crack when rubbing it with the bare fingers, in accordance with ASTM A856.
Gabion Basket Specifications
Length (M) Width (M) Height (M) Diaphragm Quantity
1 1 1 0
2 1 1 1
3 1 1 2
4 1 1 3
6 1 1 5
2 1 0.5 1
3 1 0.5 2
6 2 0.3 5
Gabion Cage Mesh Specifications
Mesh Hole PVC Coated Wire (Inner/Outside) Hot Dipped Galvanized Wire Galfan Coated Wire
60*80mm 2.0mm/3.0mm-2.8mm/3.8mm 2.2mm-3.8mm 2.2mm-3.8mm
80*100mm 2.2mm/3.2mm-3.0mm/4.0mm 3.2mm-4.0mm 3.2mm-4.0mm
100*120mm 2.4mm/3.4mm-3.2mm/4.2mm 3.4mm-4.2mm 3.4mm-4.2mm
120*150mm 2.7mm/3.7mm-3.5mm/4.5mm 3.7mm-4.5mm 3.7mm-4.5mm
Stone Filled Flood Gabion Box Barrier Anti Rust with 2*1*1m
Applications
  1. Control and guide rivers and floods by Gabion Cage and Gabion Mattress
  2. Flood discharge dam and diversion dam Protected by Gabion Box
  3. Rockfall protection used by Stone filled Gabion Cage
  4. Preventing water and soil erosion
  5. Bridge protection
  6. Solid Soil structure
  7. Coastline Defence
  8. Port Works

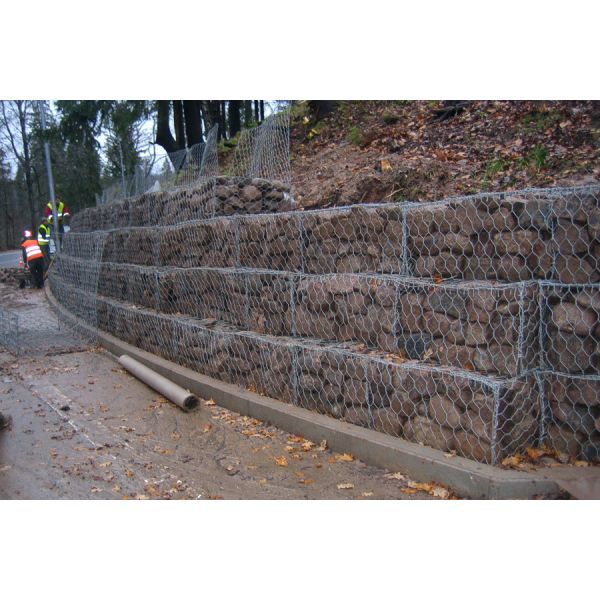

  9. Retaining Wall
  10. Road Protection

Stone Filled Flood Gabion Box Barrier Anti Rust with 2*1*1m

Stone Filled Flood Gabion Box Barrier Anti Rust with 2*1*1mStone Filled Flood Gabion Box Barrier Anti Rust with 2*1*1m
