Hot Dipped Galvanized Gabion Hesco Heavy Duty Stackable
Hot Dipped Galvanized Gabion Hesco Heavy Duty Stackable
Hot Dipped Galvanized Gabion Hesco Heavy Duty Stackable
Hot Dipped Galvanized Gabion Hesco Heavy Duty Stackable
Hot Dipped Galvanized Gabion Hesco Heavy Duty Stackable
Hot Dipped Galvanized Gabion Hesco Heavy Duty Stackable
Specifications
Brand Name :
SHUXIN
Model Number :
SX-12
Certification :
CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E, CO
Place of Origin :
CN
MOQ :
17 UNITS
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal, T/A
Supply Ability :
20 Units per week
Delivery Time :
15 working days
Packaging Details :
Pallet
Raw Material :
Low Carbon Steel Wire Q195
Geotextile :
300 g/㎡ Standard
Mesh Diameter :
4.0mm - 5.0mm
Apeture :
3" (76.2mm×76.2mm)
T/S :
500 - 800 MPA
Accessories :
Staple, Joint Pin
Height :
2.13 m
Width :
1.06 m
Legnth :
around 33m
Cells :
around 30 cells /set
Package :
wooden pallet
production time :
3 days/ container
Description

Hot Dipped Galvanized SX-12 Heavy Duty Stackable Miltary Defensive Barrier / Welded Hesco Barrier

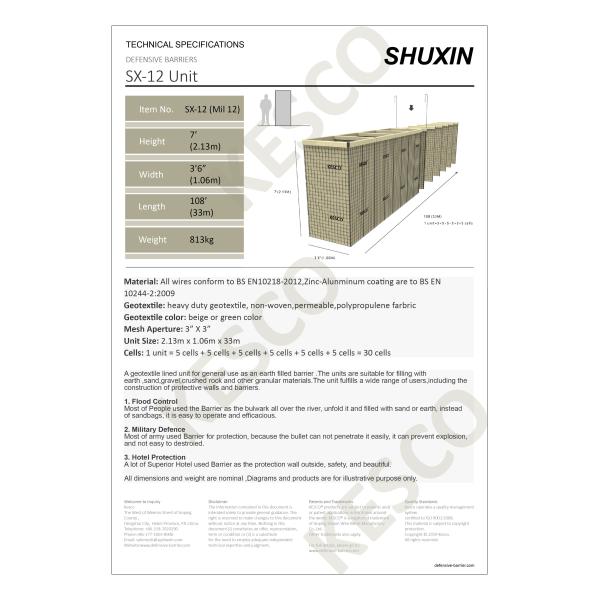

SX-12 military defensive barrier is 2.13m high, 1.06m wide, around 33m long, is a common model to use. it totally have 30 cells, 5 cells connected together, 6 PCS / 5 cells.

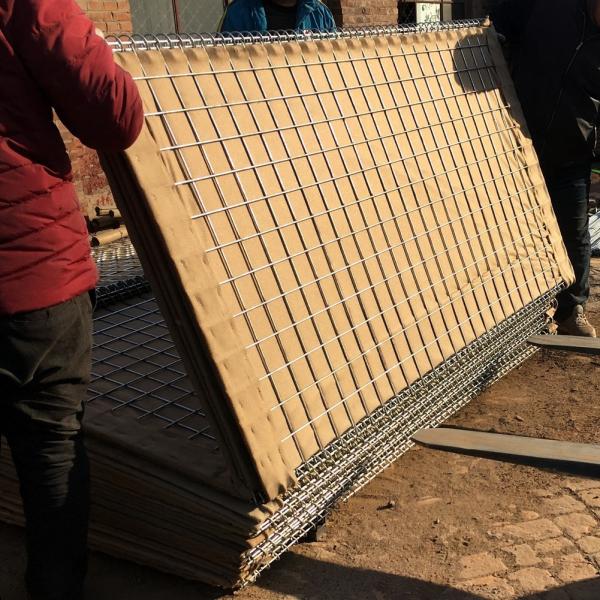

The material includes mesh panel, geotextile, sprial wire and joint hook.

Model SX - 12
Height 2.13m
Wide 1.06m
Length

33.0 m
No. of cells 5 cells * 6 PCS = 30 cells
Geotextile 250 GSM -300 GSM
Sprial Wire 22 PCS
Joint Hook 12 PCS
Weight around 813 KGS
Package Wooden Pallet

Hot Dipped Galvanized Gabion Hesco Heavy Duty Stackable

The Standard Technical Specifications from MIL 1 to MIL 19

Welded Gabion Box for HESCO Barriers
Model Height Width Length
SX-1 54"(1.37M) 42"(1.06M) 32'9"(10M)
SX-2 24"(0.61M) 24"(0.61M) 4'(1.22M)
SX-3 39"(1.00M) 39"(1.00M) 32'9"(10M)
SX-4 39"(1.00M) 60"(1.52M) 32'9"(10M)
SX-5 24"(0.61M) 24"(0.61M) 10'(3.05M)
SX-6 66"(1.68M_ 24"(0.61M) 10'(3.05M)
SX-7 87"(2.21M) 84"(2.13M) 91'(27.74M)
SX-8 54"(1.37M) 48"(1.22M) 32'9"(10M)
SX-9 39"(1.00M) 30"(0.76M) 30'(9.14M)
SX-10 87"(2.21M) 60"(1.52M) 100'(32.50M)
SX-11 48"(1.22M) 12"(0.30M) 4'(1.22M)
SX-12 84"(2.13M) 42"(1.06M) 108'(33M)
SX-19 108"(2.74M) 42"(1.06M) 10'5"(3.18M)

The Application for Welded Gabion Box for Defensive Bastion

Flood Control

1. Flood Prevention Barrier

From a simple perimeter wall to a complex base infrastructure, SHUXIN products provide rapid expeditionary protection

2. Permanent or Semi-permanent Dike

Gabion Box can as the Dike against the Flood permanently or Semi-Permanently.

3. Flood Control Retaining Wall

Wiht sand and earth in it, Welded Gabon BOx can as a retaining Wall to against the flood.

4. Protection Engineering of Seaside Area

Flood Control Barrier is more and more homemade at the seaside area as Protection Fence

5. Protecting Existing Structures

6. Coastal Erosion Control

The Advantages of Welded HESCO Defensive Barrier:

1. Lifetime

The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.

2. Collapsible

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.

3. Strong Protection

Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.

Hot Dipped Galvanized Gabion Hesco Heavy Duty Stackable
