Specifications
Brand Name :
SHUXIN
Model Number :
SX-Military Barrier
Certification :
SGS COC ISO PVOC
Place of Origin :
Hebei,China
MOQ :
130 sets
Price :
Negotiated
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
100 sets per week
Delivery Time :
15 Working Days
Packaging Details :
Pallet
Mesh Size :
3" X 3",(7.62*7.62cm)
Accessories :
Spring, Joint Pin, Geotextile
Geotextile :
300 g/m2,waterproof, good penetration
Application :
Military Barriers,River Pretection
Feature :
Easy to assemble,Good permeability.
Raw materials :
Hot dipped galvanized
Description

Portable Welded Square 3x3 inches Military Barrier Defensive Stone Box Barriers In Ghana

Military Barrier Description:

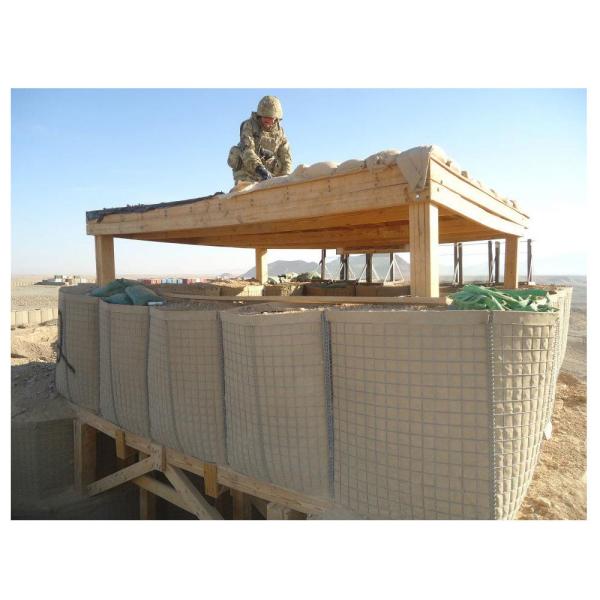

Military Gabion Barrier Bastion Sand Wall is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.

Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.

As the name implies, the military defensive barrier was originally mainly used for military, military protection, military fortifications, explosion-proof walls, etc. It is made of foldable welded gabion net and ultraviolet protection heavy geotextile lining. The common surface treatment is hot dip galvanizing before welding, welding after galvanizing and Galfan coating. They all have a long service life. It is widely used in Iraq, Afghanistan and Africa.

Details of Military Barrier:

Model Height Width Length Internal Cells
SX-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells

Advantages of Military Barrier:

1. Removable

It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.

2. Anticorrosion

The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.

3. Easy installation

When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.

4. Rapid displacement

When you want to use it in another place, just move it and it can be used many times.

5. Easy to repair

If a part is damaged, throw it away and connect it with a new one.

Defensive barrier characteristics:

Easy to handle and install

High strength and impact resistance

Long service life and normal use

Can be filled with sand, cement, stone, soil.

Our services:

Selected high-quality materials and processes follow strict international standards.

A team of technical experts who produce high-quality products. Products that have been certified or inspected for the third time can be provided as required.

Analyze or suggest the best transportation plan to save costs. Feedback or reply to you in a timely manner through excellent customer service.

Provide OEM services

One-stop sales team delivers goods quickly

Our promise: Professionalism, Efficiency, Faithful
