Durable Geotextile Lined Welded HESCO Sand Filled Barriers for Perimeter Wall
Durable Geotextile Lined Welded HESCO Sand Filled Barriers for Perimeter Wall
Durable Geotextile Lined Welded HESCO Sand Filled Barriers for Perimeter Wall
Durable Geotextile Lined Welded HESCO Sand Filled Barriers for Perimeter Wall
Specifications
Brand Name :
SHUXIN
Model Number :
SX-HC03
Certification :
COC ISO
Place of Origin :
CHINA
MOQ :
10 set
Price :
pls contact us
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
500 sets per week
Delivery Time :
15-20 work days
Packaging Details :
In pallet
Material :
Hot Dipped Galvanized Wire
No. of Cells :
1 cells, 2 cells, 5 cells
Specification :
Mil 1 to Mil 10
Accessories :
Spring, Joint Pin, Geotextile
Spring :
4.0mm
Jonit Pin :
with hook, can easy operate
Geotextile :
300 gsm
Color :
Military Green, Sand Color, Brown
Description

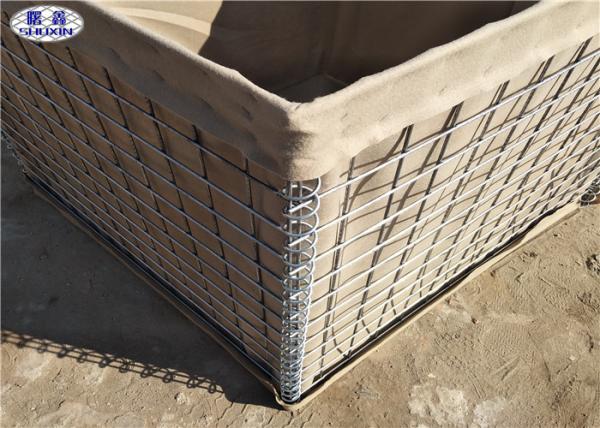

Durable Geotextile Lined Welded HESCO Sand Filled Barriers used for Perimeter Wall

Description of Flood Control Retaining Wall:

HESCO Barrier is become more popular and become a househole name, because its Outstanding contribution for Flood Control, Military Denfence, and Hotel Protection in flood-prone areas along the River.

HESCO Barrier was named after one company made them, and this thechnology was grasped by our people and inproved, has Low-Cost and High-Quality. It is assembled with Hot Dipped Galvanized and Geotextile by Spring and Jonint Pin, which is can block explosion and flood in wide range. Also can as the shooting range in military.

Quick View of HESCO Barrier:

Material: Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size: 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding

The Hesco barriers come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 1.4m x 1.1m x 9.8m (4'6" x 3'6" x 32') to 2.1m x 1.5m x 30m (7' x 5' x 100').

The Common Specification of HESCO Barrier as followed:

Hesco Barrier Specification

Model Height Width Length Internal Cells
SX-1(Mil 1) 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2(Mil 2) 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3(Mil 3) 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4(Mil 4) 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5(Mil 5) 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6(Mil 6) 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7(Mil 7) 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8(Mil 8) 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9(Mil 9) 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10(Mil 10) 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5+5=20 cells
SX-11(Mil 11) 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12(Mil 12) 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19(Mil 19) 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells

Application:

1. Flood Control.

Most of People used the HESCO Barrier as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.

2. Military Defence

Most of army used HESCO Barrier for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.

3. Hotel Pretection

A lot of Superior Hotel used HESCO Barrier as the protection wall outside, safety, and beautiful.

Durable Geotextile Lined Welded HESCO Sand Filled Barriers for Perimeter Wall
