HESCO MIL 5 Series Military Sand Wall Hesco Barriers Zinc -5% Aluminum Alloy Wire
HESCO MIL 5 Series Military Sand Wall Hesco Barriers Zinc -5% Aluminum Alloy Wire
HESCO MIL 5 Series Military Sand Wall Hesco Barriers Zinc -5% Aluminum Alloy Wire
HESCO MIL 5 Series Military Sand Wall Hesco Barriers Zinc -5% Aluminum Alloy Wire
Specifications
Brand Name :
KESCO
Model Number :
mil 5
Certification :
ISO CE SGS COC
Place of Origin :
CHINA
MOQ :
10 unit
Price :
Negotiated
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
100 units per week
Delivery Time :
15 working days
Packaging Details :
pallet and plastic film outside
Material :
zinc-5% aluminum alloy wire
Mesh Wire :
4.0 mm
Spring Wire :
4.0 mm
Standard :
ASTM B750 ASTM A856
Geotextile :
non-woven polypropylene geotextile fabric
geotextile color :
Beige, Green, Tan,
Component :
mesh panel , spiral wire hinges, connect pins
Application :
Flood Control , Militay Defence , Hotel Protection
Description

HESCO MIL 5 Series Military Sand Wall Hesco Barriers For Sale

What is the defense barrier ?

Mesh Gabion Box Explosion-proof Wall , has the ability of resisting explosive shock wave and can limit the damage of explosion to a certain range of wall.


defensive barrier also named as sand cage, welded gabion box, wire mesh gabion box, stone cage.

--- Material have galvanized , galfan coated wire
--- Experienced factory in manufacturing .
--- U.S Military approved quality .
--- Short shipping time.

The defense barrier is a modern gabion primarily used for flood control and military fortifications . It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms . It has seen considerable use in many countries .

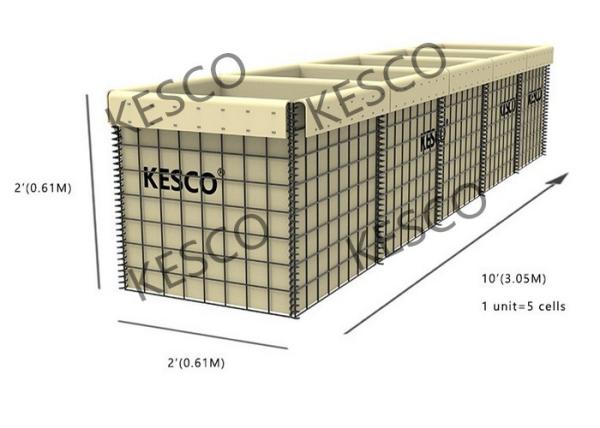

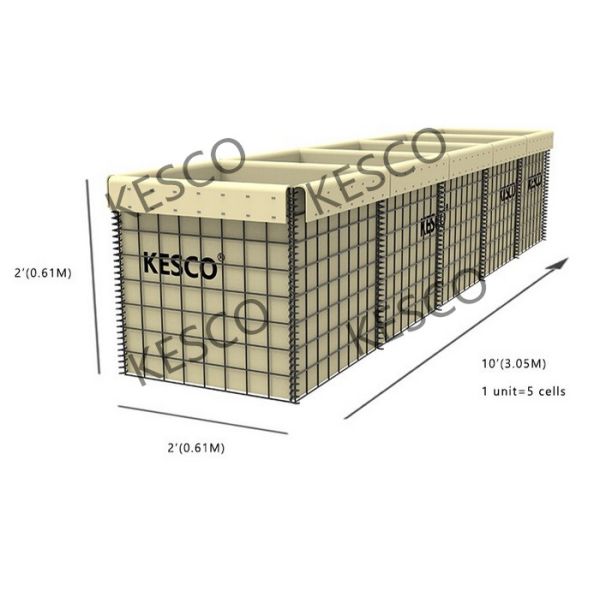

Specification of Mil 5 Unit :

HESCO MIL 5 Series Military Sand Wall Hesco Barriers Zinc -5% Aluminum Alloy Wire

Material : All wires conform to BS EN10218-2012,

Zinc-Alunminum coating are to BS EN 10244-2:2009

Geotextile: heavy duty geotextile, non-woven,permeable,

polypropulene farbric

Geotextile color: beige or green color

Mesh Hole: 3” X 3”

Unit Size : 0.61m x 0.61m x 3.05m

Cells: 1 unit = 5 cells
Item No. Height Width Length all dimensions and weight are nominal ,Diagrams and products are for illustrative purpose only.
SX5 (Mil 5)

2’

(0.61m)

2’

(0.61m)

10’

(3.05m)

A geotextile lined unit for general use as an earth filled barrier .

The units are suitable for filling with earth ,sand,gravel,crushed rock and other granular materials.

The unit fulfills a wide range of users,including the construction of protective walls and barriers.

HESCO MIL 5 Series Military Sand Wall Hesco Barriers Zinc -5% Aluminum Alloy Wire
HESCO Defensive Barrier Specification

Model Height Width Length Internal Cells
SX-1(Mil 1) 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2(Mil 2) 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3(Mil 3) 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4(Mil 4) 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5(Mil 5) 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6(Mil 6) 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7(Mil 7) 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8(Mil 8) 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9(Mil 9) 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10(Mil 10) 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11(Mil 11) 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12(Mil 12) 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19(Mil 19) 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells

Defensive Barrier Application :


♦ Perimeter security and defense walls
♦ Equipment revetments
♦ Personnel and material bunkers
♦ Observation points
♦ Defensive firing positions
♦ Guard posts
♦ Protection engineering of seaside area
♦ Border crossing checkpoints
♦ Protecting existing structures
♦ Flood control retaining wall


FAQ :

Q: Are you trading company or manufacturer ?
A: We are factory.


Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shippment.


If you have another question, pls feel free to contact us .
