Heavy Duty Galfan Coated Hesco Barrier For Military Defensive Barrier
Heavy Duty Galfan Coated Hesco Barrier For Military Defensive Barrier
Heavy Duty Galfan Coated Hesco Barrier For Military Defensive Barrier
Heavy Duty Galfan Coated Hesco Barrier For Military Defensive Barrier
Heavy Duty Galfan Coated Hesco Barrier For Military Defensive Barrier
Heavy Duty Galfan Coated Hesco Barrier For Military Defensive Barrier
Specifications
Brand Name :
KESCO
Model Number :
SX Series
Certification :
ISO CE SGS COC
Place of Origin :
CN
MOQ :
10 units
Price :
Negotiated
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
150 units per week
Delivery Time :
15 business days
Packaging Details :
Wooden Pallet
Material :
Q195, Low Carbon steel wire
Mesh Wire :
5.0mm
Spring Wire :
4.0mm
Geotextile :
300 GSM heavy geotextile
Surface Treatment :
Galfan Coated
Life Duration :
around 25 years
Description

Heavy Galvanized KESCO Barrier , Not HESCO Barrier for military fortifications

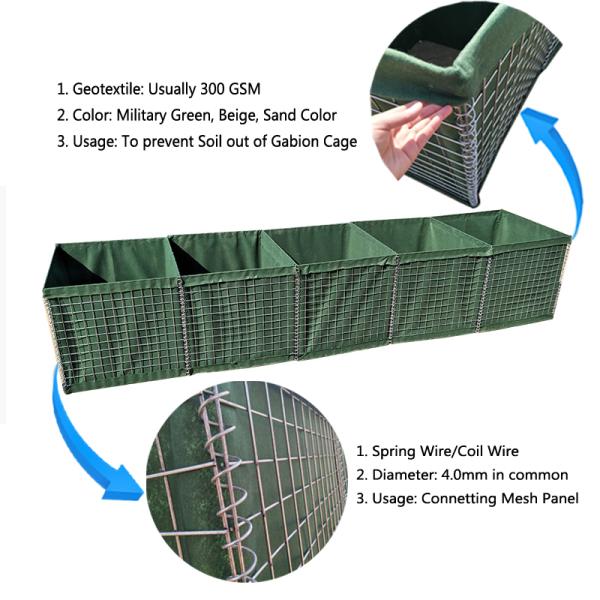

Anping Shuxin Wire Mesh Involved in HESCO Barrier more than 13 year, have a professional team to meet kinds of requirements from client. Hesco Barrier / Hesco Bastion, which is made of the steel welded mesh and lined with non-woven geotextile , can be filled with sand, earth, cement, stone, then as a defence wall or bunker and widely used in the military to protect safety.

Material: Galvanized steel wire or Galfan/

zinc-5%aluminum wire

Service Life: 15-20 years

Price:19.8$-99.8$/set

Wire diameter: 3.0mm- 6.0mm

Aperture:50*50mm 75*75mm, 76.2*76.2mm 80*80mm 100*100mm etc

Color of geotextile:Grey and Military, Green,Sand color etc

Gram Weight of geotextile:200g/m2 or 300g/m2

Finish:hot dipped galvanized,Galfan wire.

Welded method:welded after galvanized or galvanized after welded

Packing:Wrapped with shrink film then packed in wood pallet or iron pallet

Model Height Width Length Internal Cells
SX-1(Mil 1) 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2(Mil 2) 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3(Mil 3) 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4(Mil 4) 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5(Mil 5) 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6(Mil 6) 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7(Mil 7) 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8(Mil 8) 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9(Mil 9) 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10(Mil 10) 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11(Mil 11) 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12(Mil 12) 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19(Mil 19) 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells

Heavy Duty Galfan Coated Hesco Barrier For Military Defensive Barrier

Defensive Barrier Application :

1. landscaping, as retaining walls, landscape urban landscape and parks.
2. or high salt pollution in the environment, Gore can be used where welded wire mesh technology.
3. within the welded wire mesh filled with stone or natural cobblestone highway together protection, slope, roadway, bridge and so on.
4. welded wire mesh is widely used in earth or soil reinforcement such as desertification, slope protection, river, coastal protection, reservoirs, canals and pipelines renovation, Rock failure protection, bridge protection, protective net.

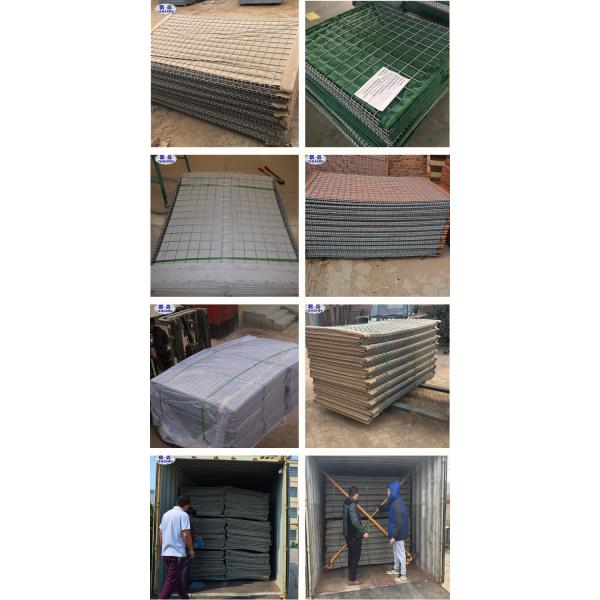

Package of HESCO Barrier

Usually used wooden pallet, stacked together.

Heavy Duty Galfan Coated Hesco Barrier For Military Defensive Barrier
