Specifications
Brand Name :
SHUXIN
Model Number :
SHUXIN-MIL 19
Certification :
CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E, CO
Place of Origin :
CN
MOQ :
10 sets
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram,Paypal, T/A
Supply Ability :
200 Units per week
Delivery Time :
7-10 working days
Packaging Details :
Pallet
Raw Material :
Carbon Steel Wire
Geotextile :
300 g/㎡ Standard
Sample :
Free Sample
Apeture :
3" (76.2mm×76.2mm)
Color :
Military Green
Accessories :
Staple, Joint Pin
Key Words :
Defensive Barrier, Welded Gabion Defensive Wall
Stock :
Some MIL types have stock
Delivery :
Some countries can send to your address directly
Production Time :
usually need 7-10 days
Surface :
Galfan Coated, Galvanized,
Description

Heavy Duty Galvanized 2.74m High Mil 19 Welded Defensive Barrier Wall for Flood Control Retaining Wall

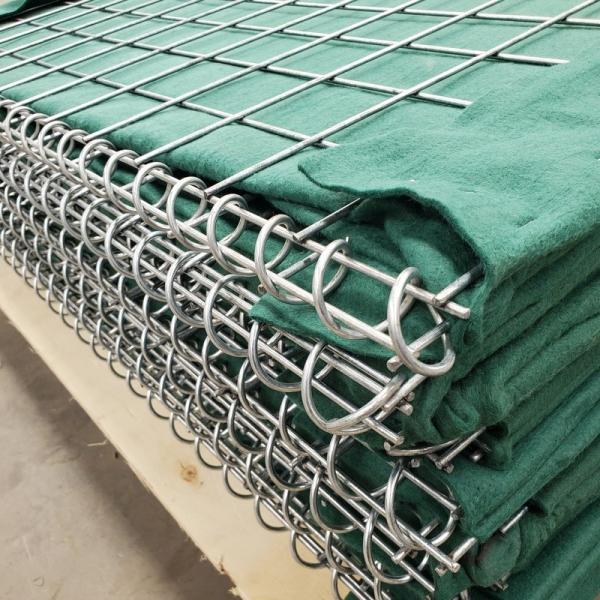

The Military barrier is a kind of modern gabion for Military fortification and Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells joint together.The concertainer SX units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile. Gabion barrier /Defensive bastion can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the military to protect safety.

Brief Introduction for Sand Filled Wall

Material: Galvanized steel wire or Galfan/zinc-5%aluminum wire

Service Life: 15-20 years

Wire diameter: 3.0mm- 6.0mm

Aperture:50*50mm,75*75mm, 76.2*76.2mm, 80*80mm,100*100mm etc

Color of geotextile: Grey and Military, Beige, Sand Color and so on.

Gram Weight of geotextile: 250 g/m2 or 300 g/m2

Finish:hot dipped galvanized,Galfan wire.

Welded method:welded after galvanized or galvanized after welded

Packing:Wrapped with shrink film then packed in wood pallet or iron pallet

The Standard Technical Specifications from SX 1 to SX 19

Welded Sand Filled HESCO Barriers for Retaining Wall
Model Height Width Length
SX-1 54"(1.37M) 42"(1.06M) 32'9"(10M)
SX-2 24"(0.61M) 24"(0.61M) 4'(1.22M)
SX-3 39"(1.00M) 39"(1.00M) 32'9"(10M)
SX-4 39"(1.00M) 60"(1.52M) 32'9"(10M)
SX-5 24"(0.61M) 24"(0.61M) 10'(3.05M)
SX-6 66"(1.68M_ 24"(0.61M) 10'(3.05M)
SX-7 87"(2.21M) 84"(2.13M) 91'(27.74M)
SX-8 54"(1.37M) 48"(1.22M) 32'9"(10M)
SX-9 39"(1.00M) 30"(0.76M) 30'(9.14M)
SX-10 87"(2.21M) 60"(1.52M) 100'(32.50M)
SX-11 48"(1.22M) 12"(0.30M) 4'(1.22M)
SX-12 84"(2.13M) 42"(1.06M) 108'(33M)
SX-19 108"(2.74M) 42"(1.06M) 10'5"(3.18M)

The Application for HESCO Defensive Barrier

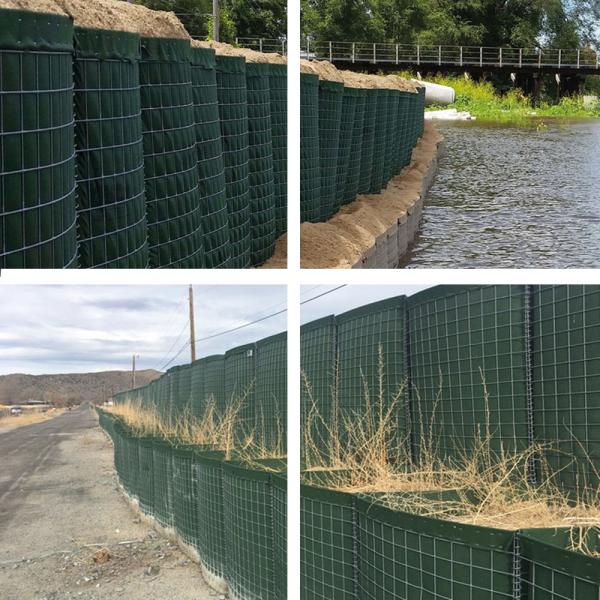

Flood Control

1. Flood Prevention Barrier

From a simple perimeter wall to a complex base infrastructure, SHUXIN products provide rapid expeditionary protection

2. Permanent or Semi-permanent Dike

Welded Gabion Box can as the Dike against the Flood permanently or Semi-Permanently.

3. Flood Control Retaining Wall

Wiht sand and earth in it, Defensive Flood Barrier Wall can as a retaining Wall to against the flood.

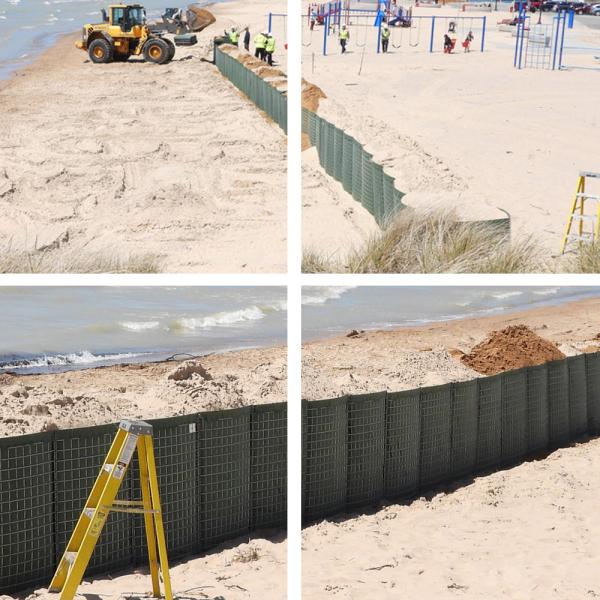

4. Protection Engineering of Seaside Area

Defensive Barrier is more and more homemade at the seaside area as Protection Fence

5. Protecting Existing Structures

6. Coastal Erosion Control

The Advantages of Welded Defensive Barrier:

1. Lifetime

The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.

2. Collapsible

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.

3. Strong Protection

Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
