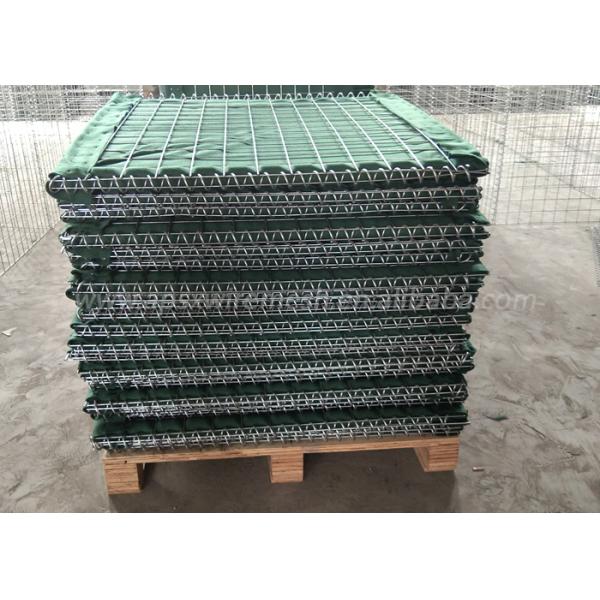

Metal Mesh Sand Wall Mil 3 Military Barrier Hesco Stainless Steel
Metal Mesh Sand Wall Mil 3 Military Barrier Hesco Stainless Steel
Specifications
Brand Name :
SHUXIN
Model Number :
Mil 3
Certification :
ISO:9001
Place of Origin :
CN
MOQ :
100 unit
Price :
Negotiated
Payment Terms :
Western Union, L/C, T/T,Paypal
Supply Ability :
200 unit per week
Delivery Time :
10 Working Days
Packaging Details :
pallet
Packing :
flat packed on pallet
Mesh wire :
5.0mm
Aperture :
3''
Identification :
ISO 9001
Geotextile :
300gsm Sand Color,Green Color
Application :
Military Protection
Description

Metal mesh sand wall Hesco Barriers Price stainless steel High Quality hesco bag for hesco sandbags Military Barrier

Introduction of Military Barrier

Military Barrier also named as Hesco bastion, Hesco defense wall, Hesco blast wall, Sand cage, Welded gabion box, Defense blast wall for military use, Wire mesh gabion box, Stone cage etc.

operational principle

It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.

Model Height Width Length Internal Cells
KN-1(Mil 1) 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
KN-2(Mil 2) 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
KN-3(Mil 3) 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
KN-4(Mil 4) 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
KN-5(Mil 5) 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
KN-6(Mil 6) 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
KN-7(Mil 7) 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
KN-8(Mil 8) 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
KN-9(Mil 9) 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
KN-10(Mil 10) 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
KN-11(Mil 11) 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
KN-12(Mil 12) 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
KN-19(Mil 19) 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells

Metal Mesh Sand Wall Mil 3 Military Barrier Hesco Stainless Steel

Detail Specification Military Barrier

1. Wire Diameter: 4-5mm

2. Mesh Size: 3" (75x75mm,50x50mm) 80*80mm

3. Panel Size: 13 type size for any security protection,suddenly burst attacks

4. Geotextile: In heavy duty non-woven polypropylene;

5. Color: Grey and Military Green,Sand color etc.

6. Finish: Hot dipped galvanized, Galfan wire.

7. Packing: Packed in pallet

Application Military Barrier

1. Military Fortifications
Most Army Used Barrier build up a Military Fortifications
2. Shooting Range
Nowadays, A lot of people use Barrier to build a shooting range, because its High Strength Defense, more safety.

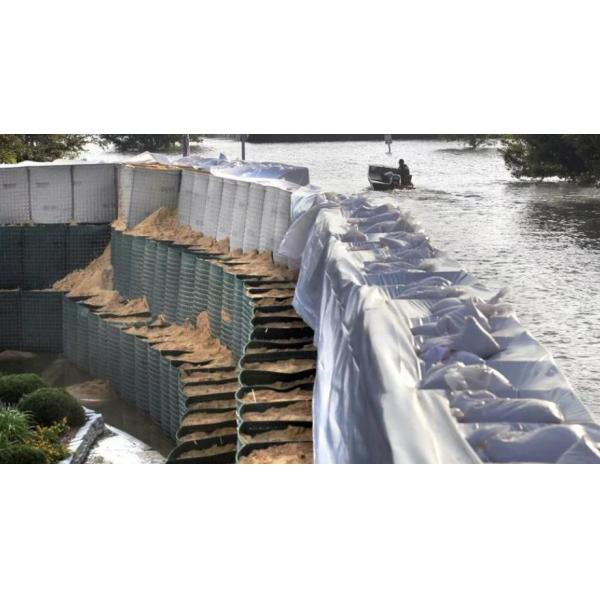

3. Flood Control
We Mentioned above, The Barrier is more and more popular and Homemade.

Metal Mesh Sand Wall Mil 3 Military Barrier Hesco Stainless Steel
