Welded Defensive Barrier Wall Against Explosions Strong Durable Feature
Welded Defensive Barrier Wall Against Explosions Strong Durable Feature
Welded Defensive Barrier Wall Against Explosions Strong Durable Feature
Welded Defensive Barrier Wall Against Explosions Strong Durable Feature
Welded Defensive Barrier Wall Against Explosions Strong Durable Feature
Welded Defensive Barrier Wall Against Explosions Strong Durable Feature
Specifications
Brand Name :
SHUXIN
Model Number :
SHUXIN-Afghanistan
Certification :
CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E, CO
Place of Origin :
CN
MOQ :
50 UNITS
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal, T/A
Supply Ability :
200 Units per week
Delivery Time :
15 working days
Packaging Details :
Pallet
Raw Material :
Hot Dipped Galvanized Iron Wire
Geotextile :
300 g/㎡ Standard
Mesh Diameter :
8 SWG
Apeture :
3" (76.2mm×76.2mm)
T/S :
500 - 800 MPA
Description

Strong Durable Welded Military Defensive Blast Barriers Against Explosions

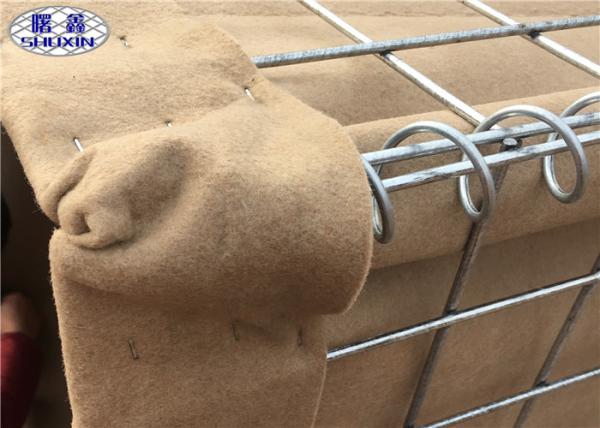

Military Gabion Box also known as the Concertainer, is a kind of wire-mesh steel basket, hinged together with a helical coil system and lined with non-mesh geotextile cloth that folds up like flat-pack furniture. In the field, it's unfolded and filled by a standard front loader or backhoe, with any dirt or rubble that's locally available and tamped down hard. By lining these baskets up and stacking them like building blocks, army engineers can build a wall ten times faster than sandbagging, with fewer people. The result is an earthen wall thick enough to shrug off a rocket propelled grenade.

The Standard Technical Specifications from SX 1 to SX 19

Welded Military Defensive Bastion Barrier
Model Height Width Length
SX-1 54"(1.37M) 42"(1.06M) 32'9"(10M)
SX-2 24"(0.61M) 24"(0.61M) 4'(1.22M)
SX-3 39"(1.00M) 39"(1.00M) 32'9"(10M)
SX-4 39"(1.00M) 60"(1.52M) 32'9"(10M)
SX-5 24"(0.61M) 24"(0.61M) 10'(3.05M)
SX-6 66"(1.68M_ 24"(0.61M) 10'(3.05M)
SX-7 87"(2.21M) 84"(2.13M) 91'(27.74M)
SX-8 54"(1.37M) 48"(1.22M) 32'9"(10M)
SX-9 39"(1.00M) 30"(0.76M) 30'(9.14M)
SX-10 87"(2.21M) 60"(1.52M) 100'(32.50M)
SX-11 48"(1.22M) 12"(0.30M) 4'(1.22M)
SX-12 84"(2.13M) 42"(1.06M) 108'(33M)
SX-19 108"(2.74M) 42"(1.06M) 10'5"(3.18M)

The Application for Military Defensive Bastion

Military Defense

1. Perimeter Security Barrier and Defence Wall

2. Temporary Fort and Command Post

3. Observation Points and Border Checkpoints

4. Military Barrier Fortification System

5. Equipment Revetment

6. Explosives and Contraband Search Areas

7. Guard Posts

8. Personnel and Material Bunkers

9. Shooting Range

The Advantages of Welded Defensive Barrier:

1. Lifetime

The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.

2. Collapsible

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.

3. Strong Protection

Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
