SHUXIN Galvanized Rapidly Deployable Military Welded Gabion Barriers Against Explosions

The Gabion barrier concertainer unit is a multi-cellular wall system manufactured from welded Zinc-Aluminum coated /hot dipped galvanized steel wire mesh and joined with vertical,helical coil joints.

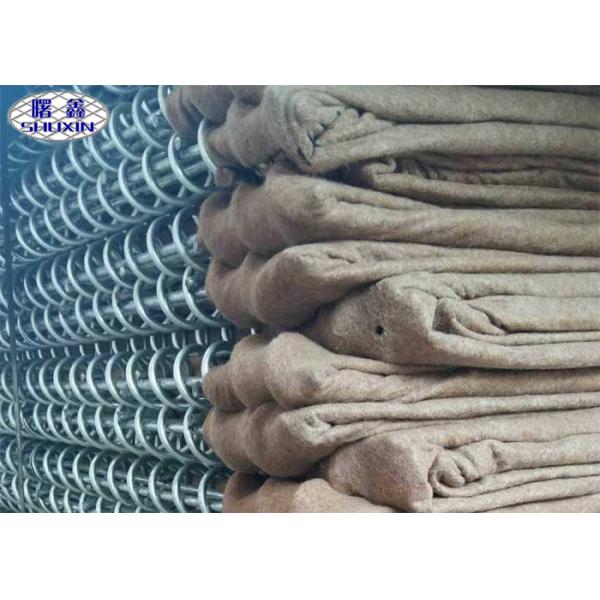

The concertainer SX units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile.Gabion barrier /Defensive bastion can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the military to protect safety.

Brief Introduction for Military Welded Gabion Box Container:

Material: Galvanized steel wire or Galfan / zinc-5%aluminum wire

Service Life: 15-20 years

Wire diameter: 3.0mm- 6.0mm

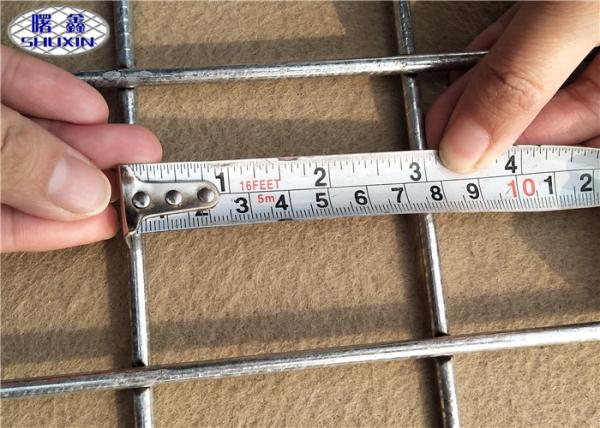

Aperture: 3" (76.2mm × 76.2mm ) Standard

Color of geotextile: Grey and Military, Beige, Sand Color and so on.

Weight of Geotextile: 250 g/m2 or 300 g/m2

Finish:hot dipped galvanized,Galfan wire.

Welded method:welded after galvanized or galvanized after welded

The Standard Technical Specifications from SX 1 to SX 19

The Application for Military Defensive Barrier

Flood Control

1. Flood Prevention Barrier

From a simple perimeter wall to a complex base infrastructure, Military Gabion Box products provide rapid expeditionary protection

2. Permanent or Semi-permanent Dike

Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.

3. Flood Control Retaining Wall

Wiht sand and earth in it, Military Defensive Barrier can as a retaining Wall to against the flood.

4. Protection Engineering of Seaside Area

Welded Gabion Barrier is more and more homemade at the seaside area as Protection Fence

5. Protecting Existing Structures

6. Coastal Erosion Control

The Advantages of Welded Defensive Barrier:

1. Lifetime

The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.

2. Collapsible

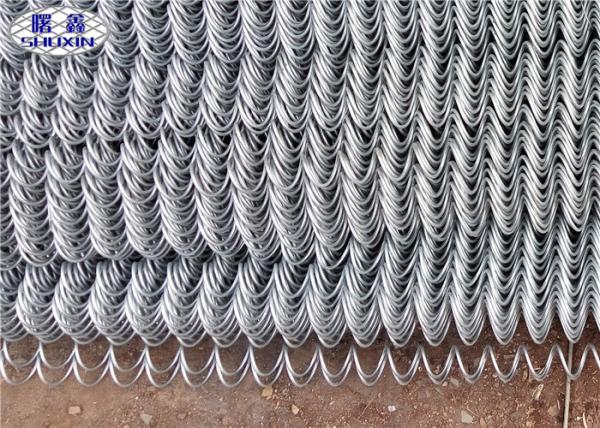

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.

3. Strong Protection

Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
