Specifications
Brand Name :
SHUXIN
Model Number :
BTO-22, CBT-60, CBT-65
Certification :
ISO, PVOC,SASO,FORM A, FORM E,CO
Place of Origin :
HB
MOQ :
10 Tons
Price :
USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Trade Assurance, Paypal
Supply Ability :
Have Stock in Small Quantity
Delivery Time :
7 Working Days
Packaging Details :
Inner waterproof paper with woven bag outside
Material :
HDP Galvanized Wire, Stainless Steel Sheet
Razor Blade Style :
BTO-11,22,30,28 CBT65 60
Product name :
Galvanized Material Razor Blade Barbed Wire Razor Wire
Type :
Barbed Wire Coil
Razor Type :
Cross Razor
Razor Thickness :
0.5±0.05mm
Inner wire Dia. :
2.5±0.1mm
Package :
Inner waterproof paper with woven bag outside
Port :
Tianjin Xingang Port, Shanghai Port, Qingdao Port
Description

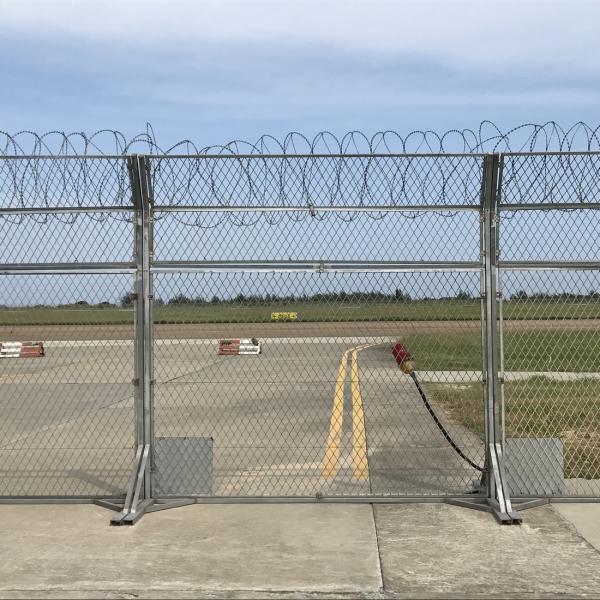

90cm CBT-65 Stainless Steel Concertina Razor Barbed Wire for Airport Protection Fence

1. Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire / ElectroGalvanized sheet Hot Dipped Galvanized Wire
2. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
Razor Barbed sheet thickness: 0.45±0.05mm
3. Razor Loop Diameter: 600mm
Other Coil diameter for u choose: 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes
4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg,14kg)

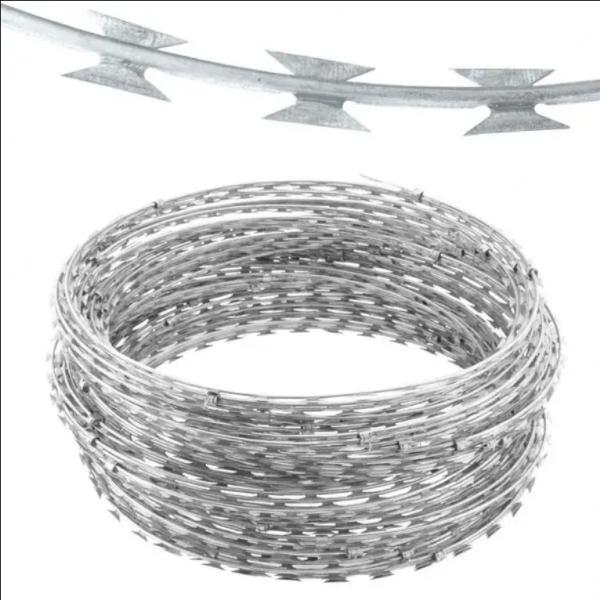

Razor Barbed wire is a kind of modern security fencing materials fabricated with high-tensile wire.

Razor wire can be installed as deterrent to the perimeter intruders with piecing and cutting razor blades mounted at the top of the wall. Its high resistance allows greater spacing between the fencing posts.

It used for grass boundary, railway, highway isolation protection

Applications:

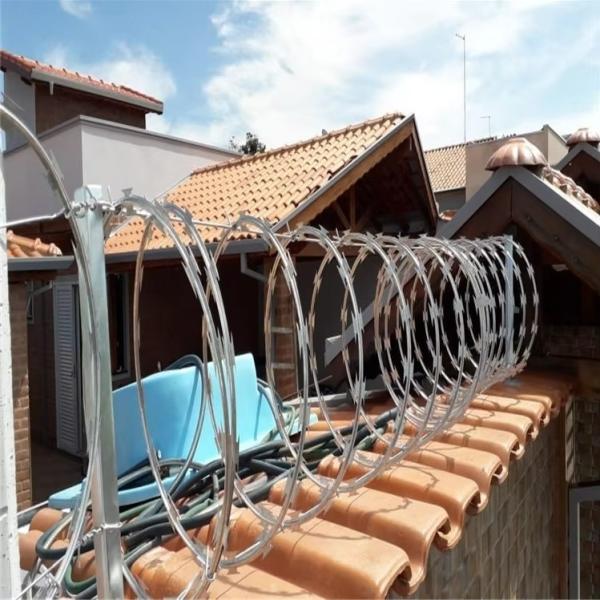

Razor Barbed Wire used in mainly serves in protecting of grass boundary, railway, highway and also widely used in military, jail, industry, agriculture, animal husbandry, dwelling house, plantation for fencing.

Specification:

Reference Number

Thickness

(mm)

Wire Dia

(mm)

Bard Length

(mm)

Bard Width

(mm)

Bard Distance

(mm)

BTO-10 0.5±0.05 2.5±0.05 10±1 13± 16±1
BTO-12 0.5±0.05 2.5±0.05 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.05 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.05 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5±0.05 28±1 15±1 53+1
BTO-30 0.5±0.05 2.5±0.05 30±1 21±1 54±1
CBT-60 0.5±0.05 2.5±0.05 60±1 32±1 100±1
CBT-65 0.5±0.05 2.5±0.05 65±1 21±1 100±2

Razor Barbed Wire Coil and Unit Loops

Outside Diameter No.of Loops Standard Length Per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type

Packing & Delivery:

1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.

90cm CBT-65 Stainless Steel Concertina Razor Barbed Wire for Airport Protection Fence

Producing department:

ANPING SHUXIN MANUFACTORY CO.,LTD,established in 2013.We are located in Anping county,Hebei province.Know as the hometown of Chinese wire mesh.
We are professional manufacturer and have professional technological.
Our mainly product: Chicken Cage, wire mesh basket, wire mesh container, defensive barrier, Gabion, razor wire, and barbed wire etc.
If you want to customize,please contact us.
