Welded Galvanized Decorative Gabion Mesh Box for Landscape / Floor Protection
Welded Galvanized Decorative Gabion Mesh Box for Landscape / Floor Protection
Welded Galvanized Decorative Gabion Mesh Box for Landscape / Floor Protection
Welded Galvanized Decorative Gabion Mesh Box for Landscape / Floor Protection
Welded Galvanized Decorative Gabion Mesh Box for Landscape / Floor Protection
Welded Galvanized Decorative Gabion Mesh Box for Landscape / Floor Protection
Specifications
Brand Name :
SHUXIN
Model Number :
SX-WGB2000
Certification :
ISO,SGS,CO,FORM E,PVOC,CE
Place of Origin :
CN
MOQ :
1000 sets
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, ,Paypal,
Supply Ability :
100 PCS per day
Delivery Time :
15 working days after getting the deposit
Packaging Details :
In Pallet
Material :
Low Carbon Steel Wire/Hot Dipped Galvanized Wire
Technology :
Welding
Surface Treatment :
Hot Dipped Galvanized
Mesh Hole :
50*100mm, 50*50mm, 100*100mm
Accessories :
Spring Wire, Hook
Usage :
Landscape, Flood Protection
Description

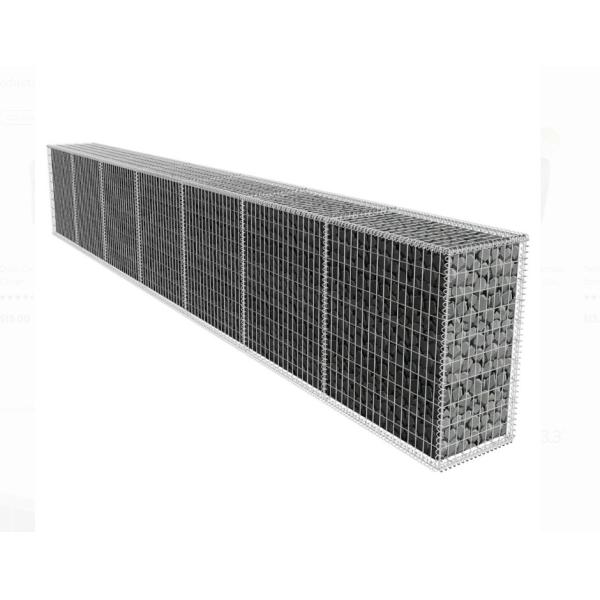

China Home Decor Welded Galvanized Decorative Gabion Mesh Box

Steel Welded Mesh Gabions Box are popular in architectural applications, or low height structures where there is minimal risk of differential settlement.

Our Welded Gabion Units consist of panels of quality welded wire mesh, secured together to form a gabion unit, which is filled on site with gabion stone to form the appropriate structure.

Architectural and landscaping are popular uses for these units, as they have a formal appearance when filled correctly with quality stone. Our welded mesh gabion units have been successfully used within free standing walls, cladding and other features within the built environment.

As with all gabion solutions, they have to be designed to meet the requirements of the project.

Welded Mesh Gabion Box Units should not be used in watercourses due to the risk of differential settlement.

Welded Galvanized Decorative Gabion Mesh Box for Landscape / Floor Protection Material:

Galvanized steel wire or Galfan/zinc-5%aluminum wire.

Use Life: 10-20 years

Wire diameter: 3.0mm- 6.0mm

Aperture:25*50mm 50*50mm 75*75mm

76.2*76.2mm 50*100mm etc

Gabion size:1*1*1m 1*0.5*1m 1*1*2m

or as request.

Finish:hot dipped galvanized,galfan wire, PVC coated

Welded Method :welded after galvanized or galvanized after welded

Packing:Wrapped with shrink film then

packed in wooden fumigation pallet or iron pallet

Common Specification of Welded Gabion Box:

Wire Diameter:3.0 - 6.0 mm
Specification in Meters Mesh Size(mm)

No. of diaphragms

Capacity cu.meters
1.0 * 1.0 * 0.5 50*50/75*75/50*100/100*100 0 0.50
1.0 * 1.0 * 1.0 50*50/75*75/50*100/100*100 0 1.00
1.5 * 1.0 * 0.5 50*50/75*75/50*100/100*100 0 0.75
1.5 * 1.0 * 1.0 50*50/75*75/50*100/100*100 0 1.50
2.0 * 1.0 * 0.5 50*50/75*75/50*100/100*100 1 1.00
2.0 * 1.0 * 1.0 50*50/75*75/50*100/100*100 1 2.00
3.0 * 1.0 * 0.5 50*50/75*75/50*100/100*100 2 1.50
3.0 * 1.0 * 1.0 50*50/75*75/50*100/100*100 2 3.00
4.0 * 1.0 * 0.5 50*50/75*75/50*100/100*100 3 2.00
4.0 * 1.0 * 1.0 50*50/75*75/50*100/100*100 3 4.00
REMARK:We Provide the attached specification,but it does notlimited to them. it can be as client's instruction.

Features:

a) Easy to handle and install.


b) High Tensile and anti-Impact capability.


c) Long Life , regular use.


d) can fill with sand ,stone ,cement
