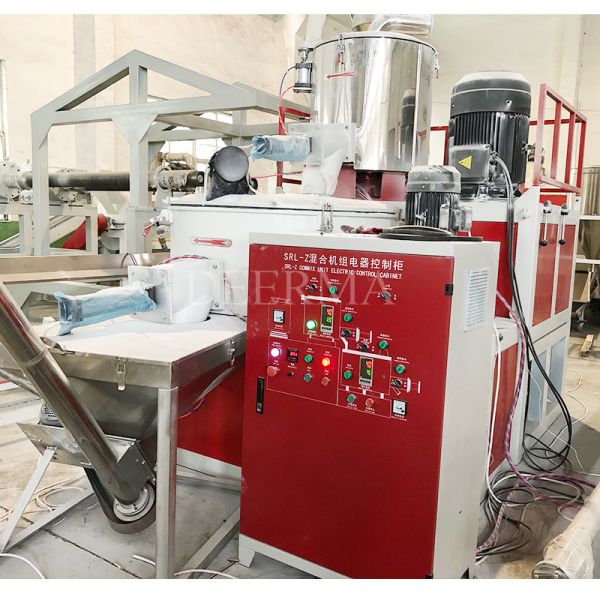

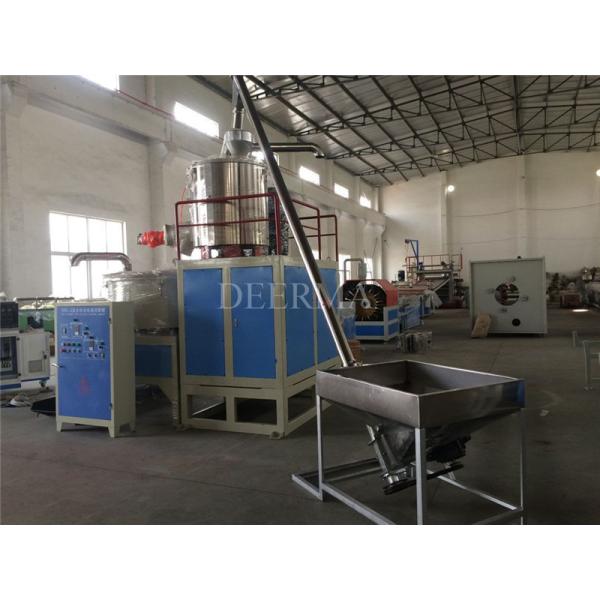

45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
45kW Power PVC PP PE Mixer/Mixing Machine for 600L Max. Loading Volume Requirement
Specifications
Mixer Type :
Agitator
Barrel Volume (L) :
300 / 600
Material Processed :
Plastics, Chemicals
Max. Loading Volume (L) :
600 L
Range of Spindle Speed(r.p.m) :
475 - 950 r.p.m
Max. Loading Capacity :
600
Weight (KG) :
3600 KG
Material :
SUS304
Condition :
New
Product Type :
Detergent Powder
Application :
mixer
Additional Capabilities :
mixer
Place of Origin :
China
Brand Name :
DEERMA
Voltage :
220V/380V, 380V
Dimension(L*W*H) :
Referring
Power (kW) :
45 kW
Warranty :
1 Year
Key Selling Points :
Long Service Life
Applicable Industries :
Manufacturing Plant, Construction works
Showroom Location :
None
Marketing Type :
Ordinary Product
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Model :
SRL-Z300/600
Total capacity(L) :
300/600
Effective capacity(L) :
225/450
Motor power(kw) :
40/55/11
Spindle speed(rpm) :
475/950/130
Heating method :
Electric Heating
Application scope :
Industrical Chemical Mixing
Packaging Details :
Outside package:Stretch film
Port :
Qingdao
Supply Ability :
3 Set/Sets per Month
Price :
$8,800.00/sets >=1 sets
Description

Mixer Machine

1.Widely used in mixing, drying, coloring for all kinds of resin such as PVC, PP, PE, ABS, PC, etc.

2.Composed of one high speed hot mixer and one cooling mixer.

3.The temperature will rise rapidly to meet the requirements of the material mixing process in the hot mixer.

4.The materials from hot mixer will be loaded into the cooling mixer automatically.

5.The materials will be cool down quickly to meet the production process requirement by low-speed mixing blade movement and heat exchange with the water cooling system in the cooling mixer.

SRL-Z Heat/Cool Heat/Cool Heat/Cool Heat/Cool Heat/Cool
Total Volume(L) 100/200 200/500 300/600 500/1000 800/1600
Valid Volume(L) 65/130 150/320 225/380 375/650 600/1050
Stirring Speed(Rpm) 650/1300/200 475/950/130 475/950/100 430/860/60 370/740/50
Mixing Time(M) 8-12 8-12 8-12 8-12 8-12
Motor Power(Kw) 14/22/7.5 30/42/11 40/55/11 55/75/15 83/110/22
Output(kg/pot) 50 90 120 180 300
