Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line
Specifications
Condition :
New
Plastic Processed :
PE
Application :
PIPE, Profile, Plates
Screw Design :
Single-screw
Screw Material :
38CrMoALA
Screw diameter (mm) :
65 mm
Screw L/D Ratio :
30:1
Screw Speed (rpm) :
55 rpm
Showroom Location :
Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa
Place of Origin :
Shandong, China
Brand Name :
Deerma
Voltage :
380V/3P/50HZ or as local voltage
Dimension(L*W*H) :
L20000*W2100*H2600mm
Power (kW) :
80
Weight :
5 KG
Warranty :
1 Year
Key Selling Points :
High Productivity
Applicable Industries :
Hotels, Building Material Shops, Home Use, Food Shop
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Pump, Gear, Engine
Machinery Test Report :
Provided
Automatic Grade :
Automatic
Product Application :
Water supply, gas suply
Model :
SJ65/33 PE Pipe Production Line
PE Pipe Diameter :
20-63mm
Tractor speed :
0-12 m/min
Drive Motor :
Siemens
Temperature Controller :
Omron
Operator :
1-2 persons per shift
Marketing Type :
Ordinary Product
Packaging Details :
PE Pipe Machine / HDPE Pipe production line
1.wooden case and seaworthy package
Port :
Qingdao
Supply Ability :
5 Set/Sets per Month PE Pipe Machine / HDPE Pipe production line
Price :
$28,000.00/sets 1-2 sets
Description

PE Water Pipe Machine / HDPE Gas Pipe production line

Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line

Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line

What is the feature of our PE Pipe Mahcine

  1. High efficiency single screw extruder.
  2. It can produce hdpe water/gas pipes.
  3. The pipe diameter range:20-630mm or customes request.
  4. This hdpe hoes is mostly used as city water and gas supply system and so on.

Technical Parameters

Model SJ65/33 SJ75/33 SJ90/33 SJ120/33 SJ150/33
Max Dia(mm) 75 160 250 315 630
Installtion power(kw) 65 150 200 280 420
Drawing speed(m/min) 0-12 0-8 0-6 0-4 0-2
Total Length(m) 28 36 50 66 72
Putput(kg/hr) 80-120 80-150 180-260 300-400 450-600

Main Composition (the list of one of PE Pipe Production Line)

Item QTY
SJ65/33 Single screw extruder Equiped with Vacum feeding machine & Drying Machine 1set
SJ25/25 Single screw extruder for marking line 1set
Die and Mould 1set
Vacuum Calibration Device 1set
Spray Cooling Tank 1set
Tractor 1set
No Dust Cutting Device 1set
Stacker 1set

Machines's Pictures

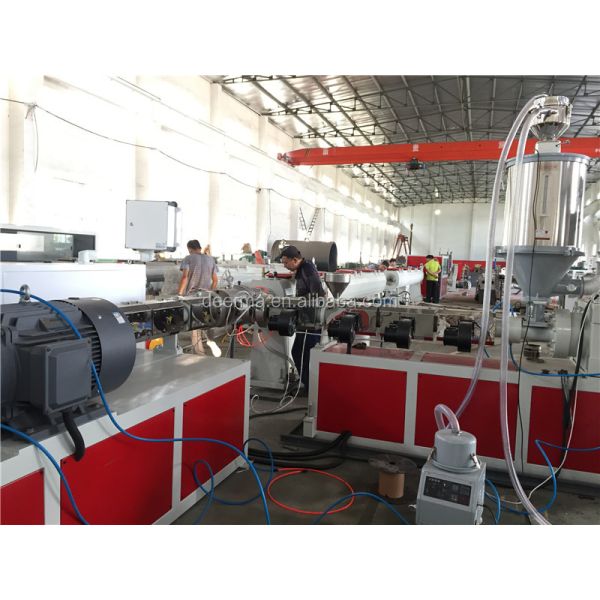

1.SJ65/33 HDPE PIPE MACHINE

Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line

Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line

2.SJ90/33 HDPE PIPE MACHINE

Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line

Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line

3.SJ75+ SJ90 Three-Layer HDPE PIPE CO-EXTRUSION MACHINE

Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line

Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line

Electric control system

Temperatue meter Omron
Contactor SIEMENS
Relay SIEMENS
Transducer SIEMENS
Power light, button SIEMENS
Inveter SIEMENS

Customized L20000*W2100*H2600mm PE Water Pipe Machine / HDPE Gas Pipe Production Line

Machine Video

20-110mm PE Pipe Machine with winder

https://youtu.be/KC3sOFnYZCo

30-100mm PE Pipe Machine with winder

https://youtu.be/ibK_ISSu0-A

Three-Layer PE Pipe Co-extrusion Machine

https://youtu.be/JG3RyNRR82c

50-160mm Three-Layer PE Pipe Co-extrusion Machine

https://youtu.be/vJJYU7EN4sk

Laser printer PE pipes

https://youtu.be/0N0yMxcsENo

160mm PP PE Pipe Machine

https://youtu.be/CUPXigPrQhY

16-32mm PE PPR Pipe Machine

https://youtu.be/4OuK3cJT2nQ

20-63mm HDPE Pipe Machine

https://youtu.be/b15_u9hgCAE

HDPE PP Pipe Machine

https://youtu.be/J8LgL2HBEx0

HDPE Pipe Machine

https://youtu.be/5fe6pSAP_Yk

Plastic (granules) automatic charger

https://youtu.be/7ejdefAO5A8
