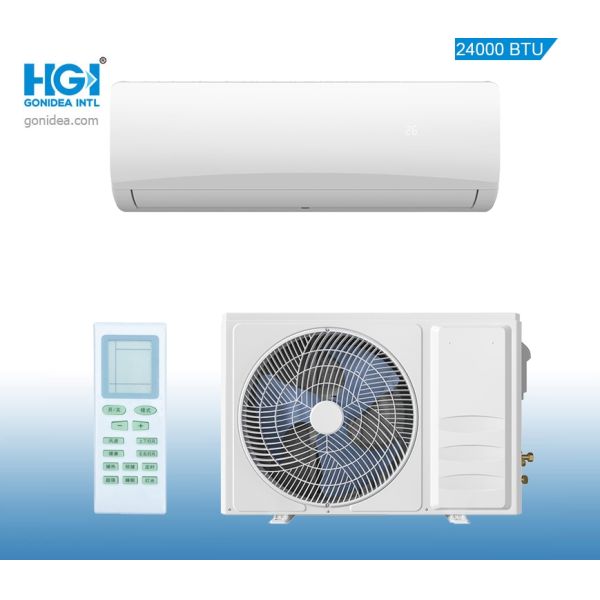

Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Fixed Frequency Air Conditioner Sp/J-Bp70c6

Specifications

Price :

280

China Energy Efficiency Standard :

Level 2

Power Type :

Origin :

China

Indoor Machine Noise :

49/47/45/42

MOQ :

100

Condition :

New

Transport Package :

Carton

Usage :

Room

Cooling/Heating :

Cooling Only

Model NO. :

SP/J-BP70C6

Specification :

R410A

HS Code :

8415102100

Rated Power Supply :

1pH / 220-240V/50Hz

Certification :

CE, CCC, RoHS, GS, CB

Trademark :

HGI

Power Source :

Electrical

Production Capacity :

500000/PCS Per Year

Ation Temperature Range :

-7℃-43℃

Description

Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Fixed Frequency Air Conditioner SP/J-BP70C6
Product Description

DC INVERTER			SP/J-BP26C6	SP/J-BP35C6	SP/J-BP50C6	SP/J-BP70C6
Rated Power supply			1Ph / 220-240V/60Hz	1Ph / 220-240V/60Hz	1Ph / 220-240V/60Hz	1Ph / 220-240V/60Hz
Workable Power supply			1Ph / 150-260V/60Hz	1Ph / 150-260V/60Hz	1Ph / 150-260V/60Hz	1Ph / 150-260V/60Hz
Cooling		Capacity (btu/h)	9000	12000	18000	24000
		Capacity (W)	2500(150~3000)W	3200(150~3600)W	4800(1250-5910)	6810(1830~7800)
		Input (W)	900(100~1200)W	1180(75~1560)W	1780(330-2340)	2350(410~2830)
		Rated current (A)	4.0 (0.8~5.3)A	5.3(0.5~6.9)A	7.9(1.7~12.0)	10.5(2.3~12.3)
		EER	2.78	2.71	2.70	2.90
Heating		Capacity (btu/h)	/	/	/	/
		Capacity (W)	/	/	/	/
		Input (W)	/	/	/	/
		Rated current (A)	/	/	/	/
		COP	/	/	/	/
Max. input consumption (W)			1600	1720	2520	3100
Max. current (A)			8.50	9.00	13.00	14.80
Compressor		Type	Rotary	Rotary	Rotary	Rotary
Compressor		Brand	GMCC,GREE	GMCC	HIGHLY	GMCC
Indoor unit	Indoor Coil	Fin material	Golden& hydrophilic&	Golden& hydrophilic&	Golden& hydrophilic&	Golden& hydrophilic&
	Indoor Coil	Tube outside dia.and material	φ7mm, Inner Grooved	φ7mm, Inner Grooved	φ7mm, Inner Grooved	φ7mm, Inner Grooved
	Indoor air flow (Turbo/Hi/Mi/Lo) (M3/h)		500/450/370/320	550/500/450/370	850/750/650/580	1050/950/800/680
	Rated input Power(cooling/heating) (W)		30	30	35	45
	Rated current (cooling/heating) (A)		0.2	0.2	0.35	0.4
	Moisture Removal (KG/h)		0.8	0.8	2	2.6
	Noise level(Turbo/Hi/Mi/Lo) (dB(A))		39/34/32/30	42/39/36/33	45/42/39/37	49/47/45/42
	Unit dimension (WHD)		695×275×190	780×275×190	910×295×205	1030×360×248
	Packing (WHD)		763×322×241	847×322×241	975×340×255	1094×434×324
	Net weight (KGs)		6	6.5	10	13
	Gross weight (KGs)		8	8.5	12	16
Outdoor unit	Outdoor coil	Fin material	Golden& hydrophilic&	Golden& hydrophilic&	Golden& hydrophilic&	Golden& hydrophilic&
	Outdoor coil	Tube outside dia.and material	φ5mm, Inner Grooved	φ5mm, Inner Grooved	φ7mm, Inner Grooved	φ5mm, Inner Grooved
	Noise level (dB)		50	52	55	59
	Unit dimension (WDH) (mm)		610×295×495	710×295×495	760×305×550	780×350×600
	Packing (WDH) (mm)		704×324×530	818×328×530	869×339×588	896×387×625
	Net weight (KGs)		17	19	24	30
	Gross weight (KGs)		20	22	28	34
	Refrigerant type		R410A / 340g	R410A / 430g	R410A / 770g	R410A / 810g
Refrigerant pipe		Liquid side (mm)	Φ6	Φ6	Φ6	Φ6
		Gas side (mm)	Φ9	Φ9	Φ12	Φ12
		Max. refrigerant pipe length (m)	10	10	10	15
		Max. difference in level (m)	5	5	5	10
Operation temperature range			16ºC-43ºC	16ºC-43ºC	16ºC-43ºC	16ºC-43ºC
Ambient temperature range			16ºC-48ºC	16ºC-48ºC	16ºC-48ºC	16ºC-48ºC
Application area (MM2)			10~17	13~27	20~40	30~55
Sets per 40ft HQ/20ft 40HQ/20			360/167	334/143	267/-	184 / -
