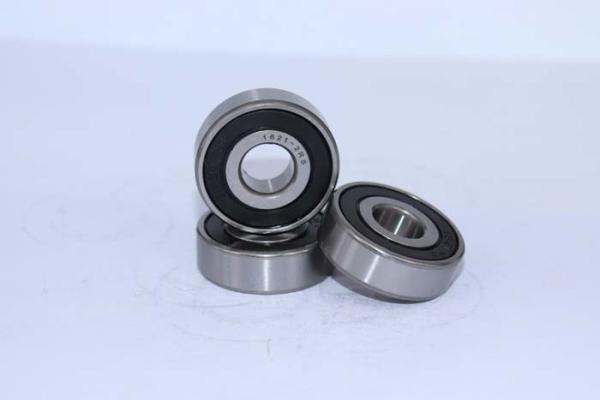

1622-2RSNR Sealed Deep Groove Ball Bearing Snap Ring 9/16X1 3/8X7/16 Inch
1622-2RSNR Sealed Deep Groove Ball Bearing Snap Ring 9/16X1 3/8X7/16 Inch
1622-2RSNR Sealed Deep Groove Ball Bearing Snap Ring 9/16X1 3/8X7/16 Inch
1622-2RSNR Sealed Deep Groove Ball Bearing Snap Ring 9/16X1 3/8X7/16 Inch
Specifications
Brand Name :
DEEG
Model Number :
1622 ZZ
Certification :
ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1PC
Price :
USDN1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 Piece/Pieces per Month
Delivery Time :
5-10Days
Packaging Details :
Single Box(White Box/Color Box/Wooden Box),or per your requst.
Structure :
Deep Grove Ball Bearings
Model :
1622 ZZ 2RS
Rolling Element :
Balls
Number Of Row :
Single Row
Feature :
High Speed
Precision Degree :
P6,P5,P4
Description

Ball Bearing 1622-2RSNR Sealed Bearing Snap Ring 9/16"x1 3/8"x7/16" Inch Bearings

1622 2RS ZZ Deep Groove Ball Bearings

14.288*34.925*11.112mm Bearing Features:

Inner Ring Diameter (bore):0.562 Inch

Outer Ring Diameter:1.375 Inch

Width:0.437 Inch

Weight:0.0464KG

1622 2RS ZZ Deep Ball Bearing Description:

Model Number 1622 2RS ZZ
Structure: Deep groove ball bearing
Inside Diameter:

9/16
Outside Diameter: 1 3/8
Thickness: 7/16
Seal Type: Double Shielded, 2RS
Material: Chrome steel, Gcr15
Precision Rating: P0-P5
Brand: TOPE or other brands

1622 2RS ZZ Ball Bearing

1622-2RSNR Sealed Deep Groove Ball Bearing Snap Ring 9/16

more models:

Bearing
NO.		 Boundary dimensions(mm) Load Rating(kN)

Weight

(kg)
d D B Cr Cor
1614 9.525 28.575 9.525 5.11 2.39 0.0286
1615 11.112 28.575 9.525 5.11 2.39 0.0267
1616 12.700 28.575 9.525 5.11 2.39 0.0247
1620 11.113 34.925 11.112 7.64 3.72 0.0520
1621 12.700 34.925 11.112 7.64 3.72 0.0490
1622 14.288 34.925 11.112 7.64 3.72 0.0464
1623 15.875 34.925 11.112 7.64 3.72 0.0432
1628 15.875 41.275 12.700 9.57 4.79 0.0788
1630 19.050 41.275 12.700 9.38 5.03 0.0779
1633 15.875 44.450 12.700 9.38 5.03 0.100
1635 19.050 44.450 12.700 9.38 5.03 0.0914
1638 19.050 50.800 14.288 12.84 6.65 0.1421
1639 20.638 50.800 14.288 12.84 6.65 0.1380
1640 22.225 50.800 14.288 12.84 6.65 0.1306
1641 25.400 50.800 14.288 14.02 7.88 0.1090
1652 28.575 63.500 15.375 16.21 10.42 0.2288
1654 31.750 63.500 15.875 16.21 10.42 0.2056
1657 31.750 65.088 17.462 16.21 10.42 0..2386
1658 33.388 65.088 17.642 16.21 10.42 0.2359

YEK Brand, 1622-2RSNR Sealed Ball Bearings 9/16" x 1 3/8" x 7/16" inch One Bearing 1622-2RSNR Sealed with Snap Ring Ball Bearings, the inner diameter is 9/16", outer diameter is 1 3/8" and the width is 7/16", this is a popular size that could be used in many applications, bearing has 2 Rubber Seals to protect the bearing from dust or any possible contamination, also bearings are pre-lubricated with grease. Item: 1622-2RSNR Ball Bearing Type: Deep Groove Ball Bearing Closures: 2 Rubber Seals Lubrication: Self Lubricated (Grease) Size: 9/16" x 1 3/8" x 7/16" inch Inner Diameter: 9/16" inch Outer Diameter: 1 3/8" inch Width: 7/16" inch Quantity:One Bearing Dynamic load rating: 1,525 LBS Static load rating: 747 LBS 1622-2RSNR Sealed Bearing Snap Ring 9/16"x1 3/8"x7/16" inch Bearings Kit8713 1622-2RSNR Sealed Bearing Snap Ring 9/16"x1 3/8"x7/16" inch Bearings

1622-2RS 30*72*19 Deep Groove Ball Bearing Application:

1.Gearboxes,Instruments,Motors

2.Household Appliances,Internal Combustion Engines

3.Traffic Vehicles,Agricultural Machinery,construction machinery,oller skates

Factory Photos:

1622-2RSNR Sealed Deep Groove Ball Bearing Snap Ring 9/161622-2RSNR Sealed Deep Groove Ball Bearing Snap Ring 9/16

Quality In Everything We Do:

Suppliers quality: working only with the best


Our Supplier Quality and Development (SQD) division guarantees the flawless supply of highest quality raw materials and components.
Process quality: accurate, on-time production


All manufacturing facilities employ a Lean approach in manufacturing, involving every team member in a philosophy of continuous improvement. We have state-of-the-art production lines in all our plants. The integrated manufacturing process controls enable us to check 100% of the parts at every critical production step.


OEM-Quality Products


We deliver our products to leading global manufacturers of transmissions, axles, differentials, and fluid pumps amongst others; these customers use our products directly or integrate them into their Original Equipment.

FAQ:

Q: Are you a trading company or a factory?

A: We have both. We are trading company and we have own factory.

Q: What is the delivery time if we place an order?

A: For small orders, our delivery time is 3 days. If the amount is large, usually our delivery time is 7-20 days.

Q: What is your payment term?

A: We accept T/T, W/U, PayPal and L/C.

Q: Do you have a warranty on bearings?

Answer: In normal use, our bearing guarantee period is 1 year.
