Blue Det160-ⅱ Low E Coated Glass 2440mm X 1830mm
Blue Det160-ⅱ Low E Coated Glass 2440mm X 1830mm
Specifications
Brand Name :
FGG
Model Number :
DET160-Ⅱ
Place of Origin :
Zhejiang, China
MOQ :
2000m2
Payment Terms :
L/C, T/T
Delivery Time :
Advantage:
Packaging Details :
End Cap
Brand :
FGG
Product name :
DET160-Ⅱ
Color :
Blue
Thickness :
6mm
Min Size :
2440*1830mm
Sample :
Available
Application :
high-end building glass walls, windows of train, metro
Advantage: :
Spectrum Selective, Green, energy-saving
Description

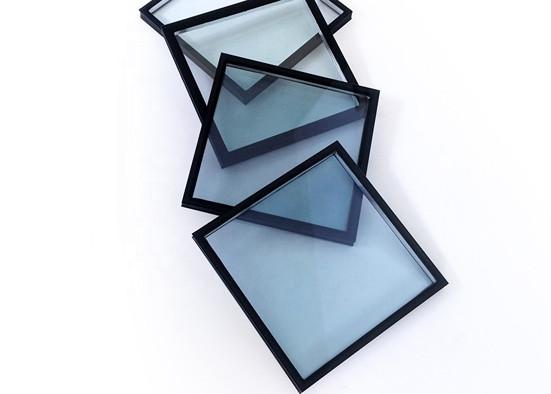

6mm Stock Size Spectrum Selective Coated Low E Insulated Glass

Description:

FGG coated glass is based on multiple coating systems comprising of metal or metal nitrides/oxides through the method of Magnetron Sputtering Vacuum Deposition (MSDVD). FGG team has development dozens of coated glass which can meet the aesthetic or energy requirements domestically and globally.

The spectrum selective double silver LOW-E glass highlights the sunshade effect of the glass on solar thermal radiation. It skillfully combines the high light transmittance of the glass with the low transmittance of solar thermal radiation, and has a high visible light transmittance, which can effectively restrict the outdoor background heat radiation from entering the room in summer.

Performance Data:

Coating Code Visible Light % Solar Energy % SHGC SC LSG U-Value (W/㎡·K)
VLT LR Out LR In ET ER Winter - NFRC Summer - NFRC
Air Argon Air Argon
DET160-II 54 20 23 26 26 0.31 0.36 1.74 1.63 1.34 1.56 1.24

Product Feature:

1.Low SHGC down to 0.31,SC down to 0.36;

2. Can be used monolithically;

3. Can be tempered (flat or curved);

4. Can be insulated on #2 and/or #4 surface;

5. Can be printed;

Founded in June 1998, Flat Glass Group Co., Ltd. is a comprehensive large-scale enterprise which integrates glass R&D, manufacturing, processing and sales. The headquarters is located in Jiaxing, a core city of the Yangtze River Delta.

Our products include four categories: solar glass, high-quality float glass,architectural glass and home furnishing glass. Moreover, the Group has vertically expanded to the construction of photovoltaic power stations and quartz rock mining to form a complete industrial chain.

Application:

high-end building glass walls, windows of train, metro

Product Name 6mm Spectrum Selective Coated Low E Insulated Glass DET160-Ⅱ
Max Size 3300mm×4880mm (Automatic line)
Min size 300*300mm
Glass thinkess 5mm-6mm
Color of the glass Blue
Processing types

1. Tempering/heat strengthening

2. Insulating

3. Printing
Processing capacity 30000㎡/ Day
Application

1. High-end building glass walls
2. Windows of train
3. Metro

etc.
